Takeuchi TB215R Workshop Manual

DISASSEMBLY AND ASSEMBLY
DRIVE SYSTEM
12
4
DRIVE SYSTEM 4B0AX00

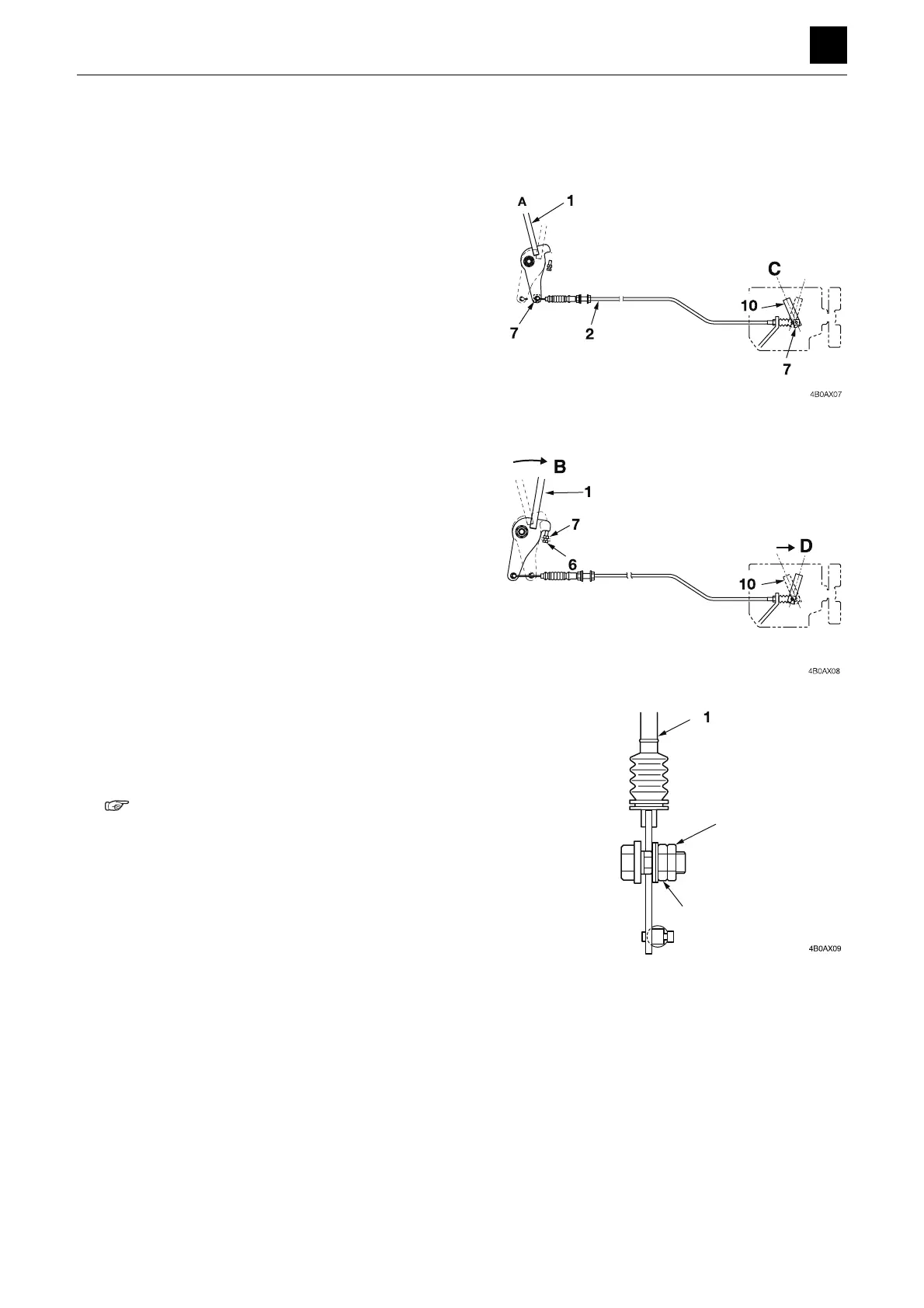

Adjusting the throttle lever
Engine speed
1. Secure the wire (2) to the throttle lever (1) using the
wire lock pin (7).
2. Push the throttle lever (1) down to the low-idling side
A, and position the governor (10) to the idling posi-
tion C.
• Keep pushing the throttle lever (1) over until it
makes contact with the notch in the bracket.
3. Fasten the wire (2) in place with the wire lock pin (7).
4. Pull the throttle lever (1) out to the full-throttle side B,
and position the governor (10) to the full-throttle po-
sition D.
• Adjust the stopper (6) so that the throttle lever (1)
makes contact with the stopper (6), and secure it
in place using the lock nut (7).
Control force
1. Loosen the lock nut (9), and turn the nut (8) to adjust
the control force.
Control force: 24.5 N (5.5 lbf)
“2. Service data, Performance criteria, Lever op-
erating force”
2. After completing the adjustment, tighten the lock nut
(9) by fixing the nut (8) in place so that it does not
turn.
3. Operate the throttle lever (1) again, and check to
make sure that the control force is stable.
9
8
