Takeuchi TB215R Workshop Manual

MONOCHROME LCD CLUSTER PANEL DISPLAY AND LCD SPECIFICATIONS (WITHOUT A CAN)
DATA SELECTION SCREEN
9
6
DATA SELECTION SCREEN 6S3AY00
DATA SELECTION SCREEN

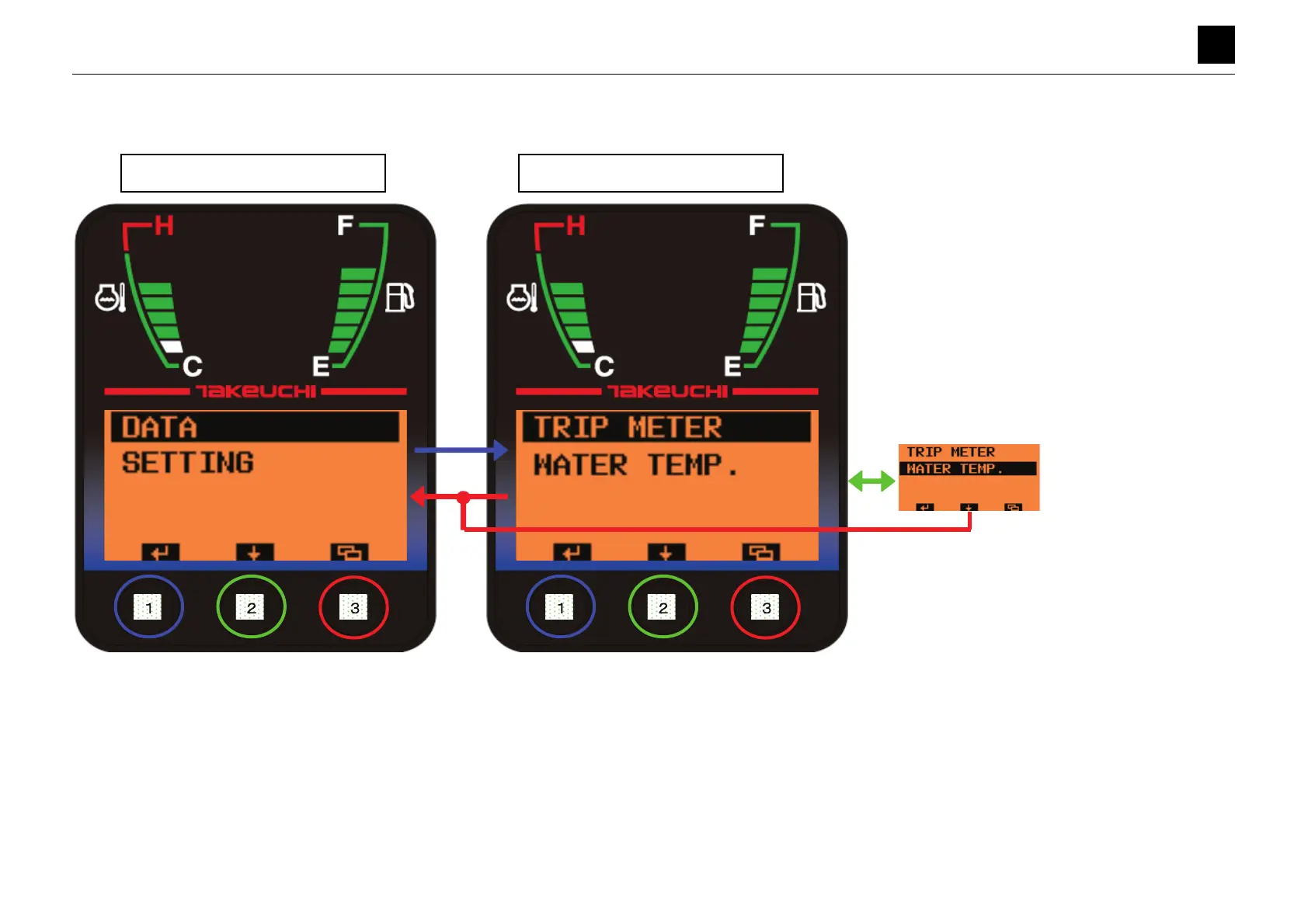

• Pressing Button [1] while [DATA] is highlighted moves the display to the Data Selection screen.
• Pressing Button [3] on the Data Selection screen for a short while moves the display to the Main Menu screen.
• Pressing Button [2] on the Data Selection screen for a short while moves the bar to the next option.
• Pressing Button [1] on the Data Selection screen for a short while moves the display to the Data screen for the highlighted option.
