MONOCHROME LCD CLUSTER PANEL DISPLAY AND LCD SPECIFICATIONS (WITHOUT A CAN)

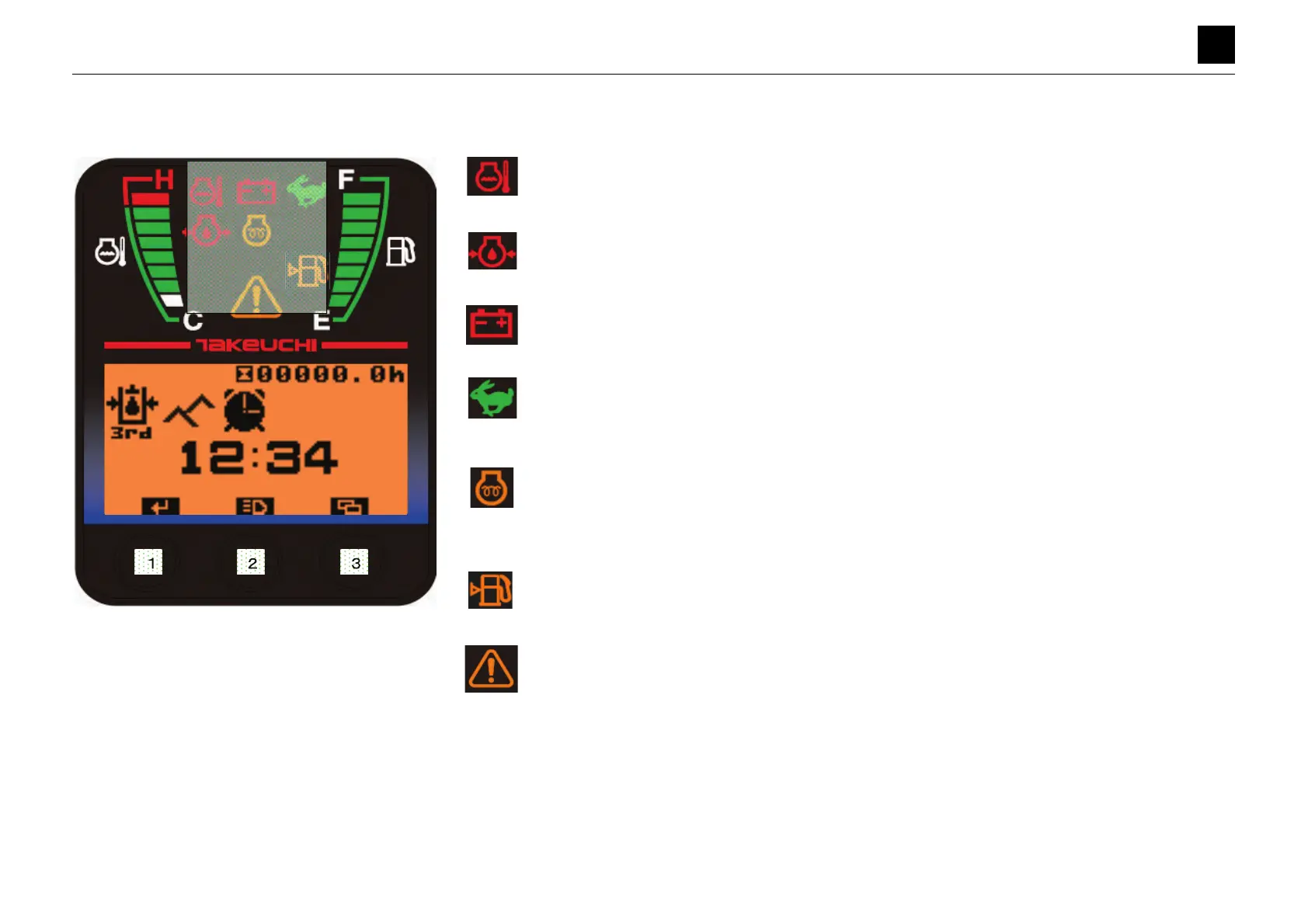

PANEL DISPLAY: FUNCTION/WARNING LAMPS

PANEL DISPLAY: FUNCTION/WARNING LAMPS 6S3AY00

PANEL DISPLAY: FUNCTION/WARNING LAMPS

Overheating warning light

Lamp ON conditions: Flashes when the temperature rises above 110°C (230°F)(Resistance: 0.1417 k

Ω).

Turns on solid for 0.5 s then goes out for 0.5 s and repeats in a flashing pattern.

Engine oil pressure warning light

Flashes when the oil pressure switch is ON (while set to LO).

Turns on solid for 0.5 s then goes out for 0.5 s and repeats in a flashing pattern.

Charge warning light

Lamp ON conditions: Flashes when the voltage at the alternator input terminal is reading below +3 V.

Turns on solid for 0.5 s then goes out for 0.5 s and repeats in a flashing pattern.

2nd speed travel light

Toggles from OFF to ON (or ON to OFF) along with the 2nd speed travel relay when the 2nd speed travel

switch is turned from OFF to ON to OFF (by flip-flop operation).

Chattering check: 20 ms

Glow lamp

Lamp ON conditions: Turns ON for 3 s when ACC is ON (Turns ON when the glow relay is ON; turns OFF if

a Start signal is received within 3 s of being ON).

(Turns ON when the glow relay is ON, OFF when the glow relay is OFF, and OFF if a Start signal is received

within 3 s of being ON.)

Low fuel level warning light

Lamp ON conditions: Turns ON if the resistance increases to 75.9

Ω or higher.

System warning light

Lamp ON conditions: Flashes when one of the Overheating, Engine oil warning, or Charge warning lights is

turned ON.

Turns on solid for 0.5 s then goes out for 0.5 s and repeats in a flashing pattern.

* If any one or more of the overheating warning light, engine oil pressure warning light, or charge warning light turns ON, chattering is determined to have occurred for 1.5

s. After 1.5 s passes, the warning light begins to flash and the buzzer to sound (ON for 0.5 s and then OFF for 0.5 s and so on in a repeating pattern). If the system is able

to return to a normal state, the warning light and buzzer turn OFF after 1.5 s.

* If both the charge warning light and engine oil pressure warning light are in the abnormal state and the engine enters a shut-off state, the buzzer only will turn OFF after

10 s lapses, even if the abnormal state continues.
