MONOCHROME LCD CLUSTER PANEL DISPLAY AND LCD SPECIFICATIONS (WITHOUT A CAN)

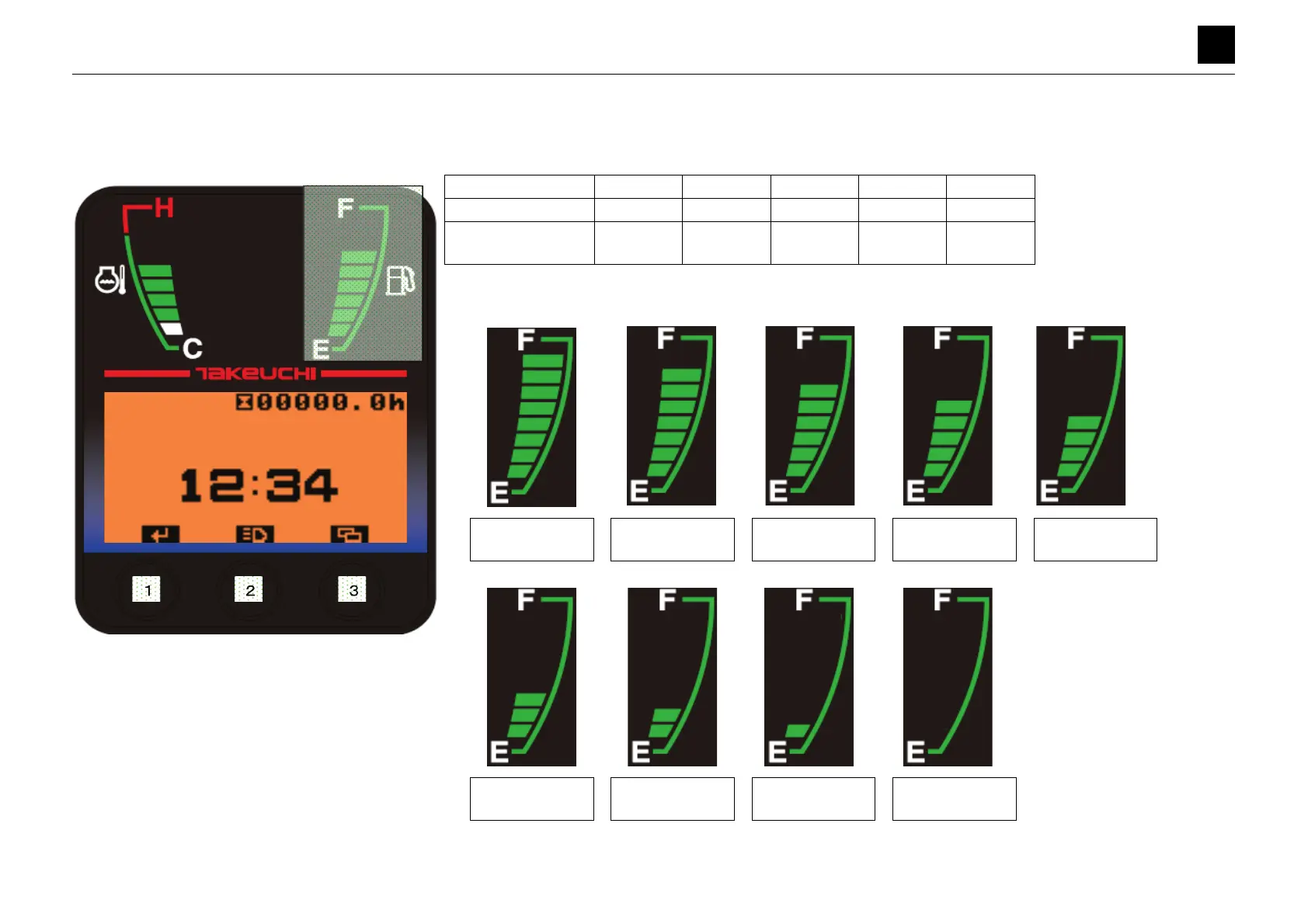

PANEL DISPLAY: FUEL GAUGE
5
6
PANEL DISPLAY: FUEL GAUGE 6S3AY00
PANEL DISPLAY: FUEL GAUGE
Resistance characteristics
* Average values are used for the output values. (The average amount of movement over a span of 120 seconds mea-
sured in 100-ms intervals.)
Float position FULL 3/4 1/2 1/4 EMPTY
Resistance (
Ω) 10 17.7 (38) 61.7 90
Allowable error (
Ω)
0
-4
–––
+10
0
r < 12.8 Ω
12.8 Ω ≦ r
<17.7
Ω
17.7 Ω ≦ r
< 27.9
Ω
27.9 Ω ≦ r
< 38
Ω
38 Ω ≦ r
< 49.9
Ω
49.9 Ω ≦ r
< 61.7
Ω
61.7 Ω ≦ r
< 75.9
Ω
75.9 Ω ≦ r
< 90
Ω
90 Ω ≦ r
* Allowable error: ±5%
(Allowable error for the fuel gauge float parts list-
ed separately)
