DISASSEMBLY AND ASSEMBLY
SOLENOID VALVE (3RD AU
XILIARY LINE PIPING)
1
4
SOLENOID VALVE (3RD AUXI
LIARY LINE PIPING)
4K6AV01

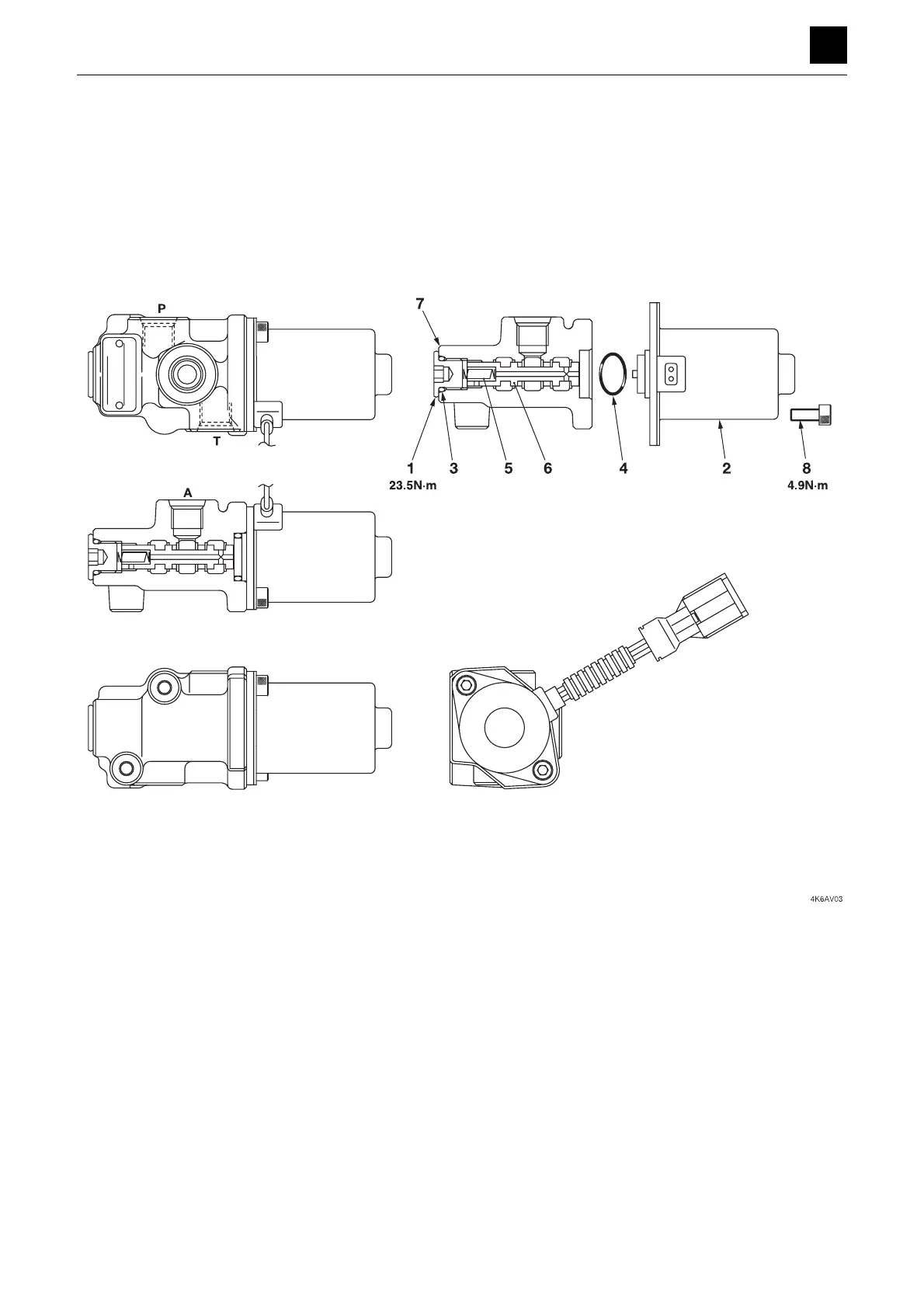

SOLENOID VALVE (3RD AUXILIARY LINE PIPING)
Construction
1.
Plug
5.
Spring
2.
Solenoid coil
6.
Spool
3.
O-ring
7.
Body
4.
O-ring
8.
Cap screw
168
170
