SERVICE DATA
LUBRICANT AND FUEL CHART
1
2
LUBRICANT AND FUEL CHART 2C0AX002
LUBRICANT AND FUEL CHART

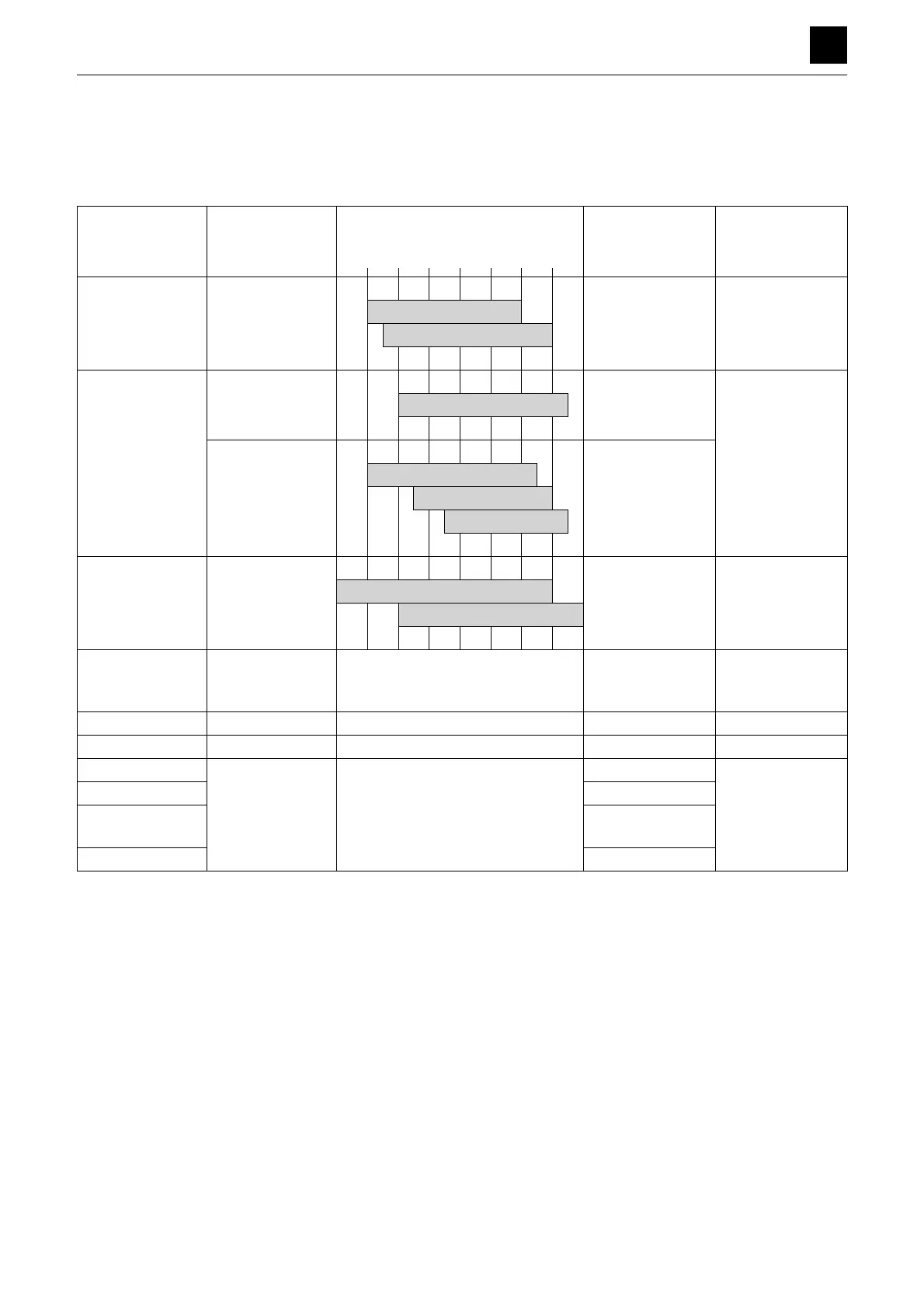

Select the appropriate fuel, lubricant, and grease according to temperature by referring to the table below.
• Regardless of the specified time, change the oil if it becomes too dirty or degraded.
• When refilling, never mix oils of different brands. If a brand is to be changed, replace all of the fuel/oil.
* If the ratio of traveling time to total operating time is high, replace the gear oil earlier than the specified time.
** For water, use tap water (soft). Do not use well or river water.
When the ambient temperature drops below 0°C (32°F), add coolant (antifreeze). Follow the coolant manufactur-
er’s instructions to determine the mixture ratio.
*** The replacement interval for hydraulic oil depends on the type of oil being used. New machines are shipped from
the factory with the Takeuchi genuine hydraulic oil 46. This manual describes when to replace the hydraulic oil
assuming that this Takeuchi oil is used. When a conventional anti-wear hydraulic oil is used, replace it every 2000
hours.
API Standards: American Petroleum Institute
ACEA Standards: European Automobile Manufacturers’ Association
SAE Standard: SAE International
®
(Society of Automotive Engineers)
JASO Standards: Japanese Automotive Standards Organization
Part Type
Selection by air temperature
-4 14 32 50 68 86 104°F
-20 -10 0 10 20 30 40°C
When to change/
replenish
Capacity
Engine oil pan
Diesel engine oil
API: CD class
ACEA: E3/E4/E5 class
JASO: DH1 class
Every 250 hrs.
Upper limit:
2.8 L (3.0 US qt.)
Lower limit:
1.5 L (1.6 US qt.)
SAE 10W-30
SAE 15W-40
Hydraulic tank
Takeuchi genuine
hydraulic oil 46
Every 4000 hrs.***
Total amount of oil:
24 L (6.3 US gal.)
Tank level capacity:
16.1 L (4.3 US gal)
ISO VG46
Anti-wear hydrau-
lic oil
Every 2000 hrs.***
ISO VG32
ISO VG46
ISO VG68
Engine cooling
system
Cooling water
(water + coolant)**
SAE-J814C, J1034
Every 2000 hrs. 3.9 L (4.1 US qt.)
Mixture of 50% coolant
Mixture of 30% coolant
Travel reduction
gear
Gear oil
API: GL-4
SAE 90
Every 1000 hrs.
after the first 250
hrs.*
0.33 L
(0.35 US qt.)
Track roller Gear oil SAE 90 – 0.060 L (2.0 fl. oz.)
Idler Gear oil SAE 90 – 0.045 L (1.5 fl. oz.)
Slew motor pinion
Lithium grease
EP-2
NLGI No. 2
–
Every 50 hrs.
As required
Slew bearing Every 50 hrs.
Working equip-
ment
Daily or every 10
hrs.
Levers When required
