MONOCHROME LCD CLUSTER PANEL DISPLAY AND LCD SPECIFICATIONS (WITHOUT A CAN)
NORMAL PANEL DISPLAY/LCD SCREEN
3
6
NORMAL PANEL DISPLAY/LCD SCREEN 6S3AY00
NORMAL PANEL DISPLAY/LCD SCREEN

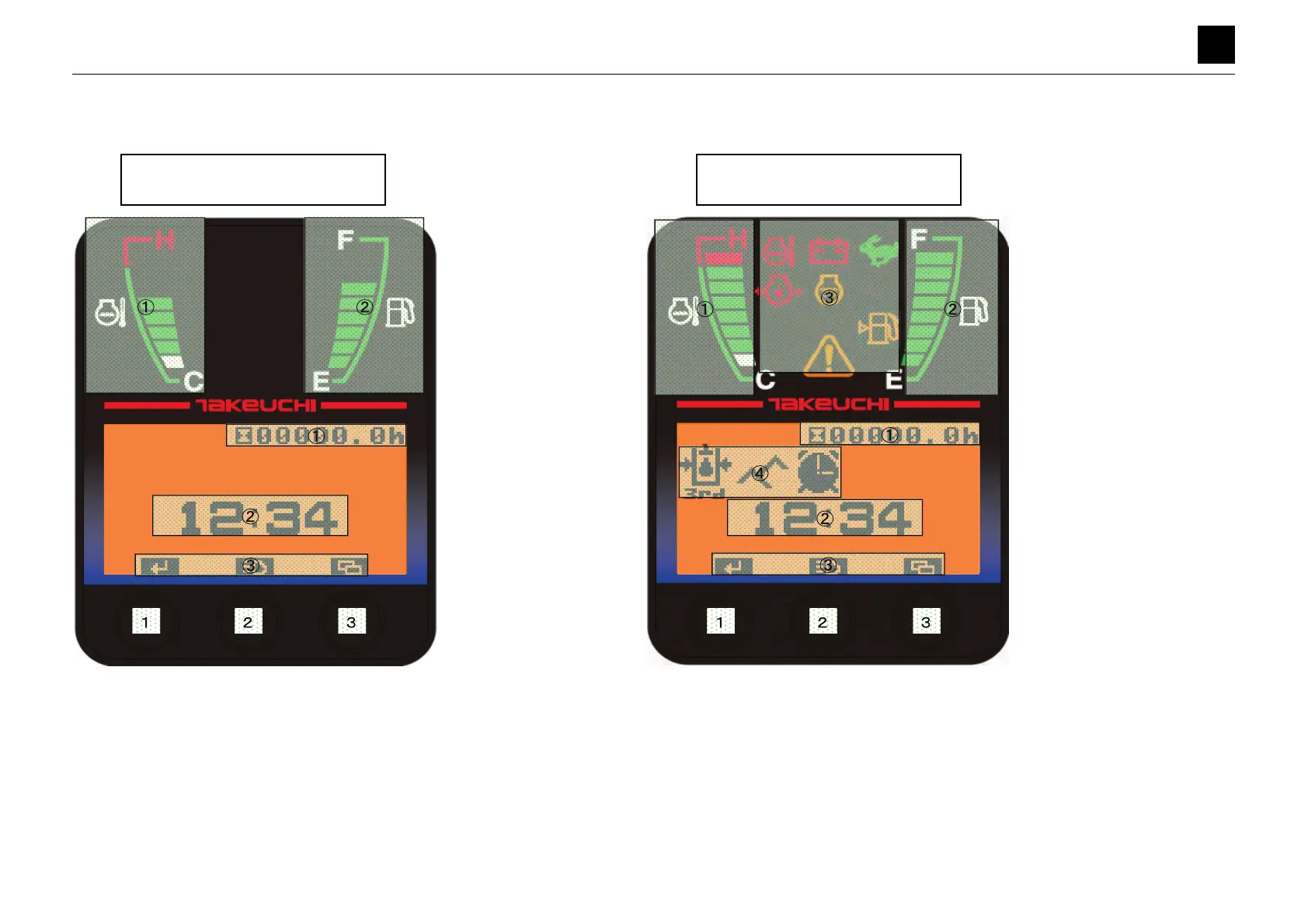

Off States for Function and
Warning Display Indicators
On States for Function and
Warning Display Indicators
Panel Display
1 Water temperature
gauge
2 Fuel gauge
LCD
1 Hour meter
2 Clock
3 Switch function display
Panel Display
1 Water temperature gauge
2 Fuel gauge
3 Function/warning lamps
• Water temperature warning
light
• Charge warning light
• 2nd speed travel light
• Engine oil warning light
• Glow light
• Low fuel level warning light
• System warning light
LCD
1 Hour meter
2 Clock
3 Switch function display
4 Function/warning display
• High-altitude mode light
• 3rd S pressure warning light
• Alarm light
* If there is no CAN present, the lights turn ON for 1.2 s in this state for a lamp check test.
All lights on the LCD screen also turn ON for 1.2 s at this time. The alarm buzzer also
sounds for 1.2 s.
The current time displays on the clock display during the lamp check. (The time does
not display as 12:34, in other words, unless that happens to be the current time.)
