DISASSEMBLY AND ASSEMBLY
HYDRAULIC PUMP
1
4
HYDRAULIC PUMP 4I0AY001
HYDRAULIC PUMP

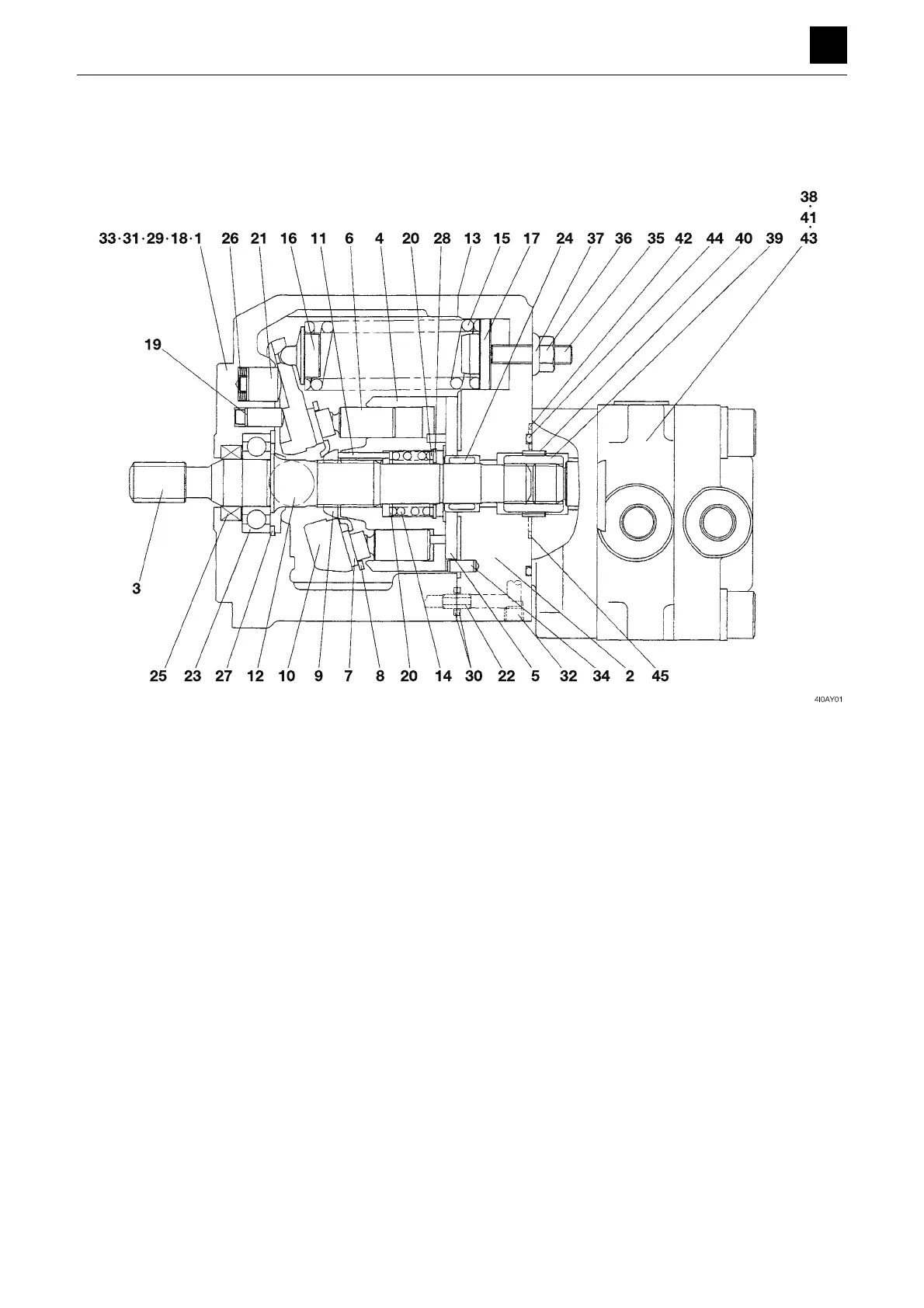

Construction
1. Body S 13. Packing 25. Oil seal 37. Seal washer
2. Body H 14. Spring C 26. Belleville spring 38. Gear pump
3. Shaft 15. Spring T1 27. Snap ring 39. Coupling
4. Cylinder block 16. Spring holder 28. Snap ring 40. Collar
5. Valve plate 17. Spring guide 29. O-ring 41. Bolt
6. Piston 18. Pin 30. O-ring 42. O-ring
7. Shoe 19. Piston 31. Cap screw 43. Washer
8. Shoe holder 20. Retainer 32. Plug 44. O-ring
9. Guide 21. Stopper pin A 33. Plug 45. O-ring
10. Swash plate 22. Pin 34. Spring pin
11. Pin 23. Ball bearing 35. Set screw
12. Pin 24. Needle bearing 36. Nut
