FUNCTION
SOLENOID VALVE (LEVER LOCK)
2
3
SOLENOID VALVE (LEVER LOCK) 3K6AX00

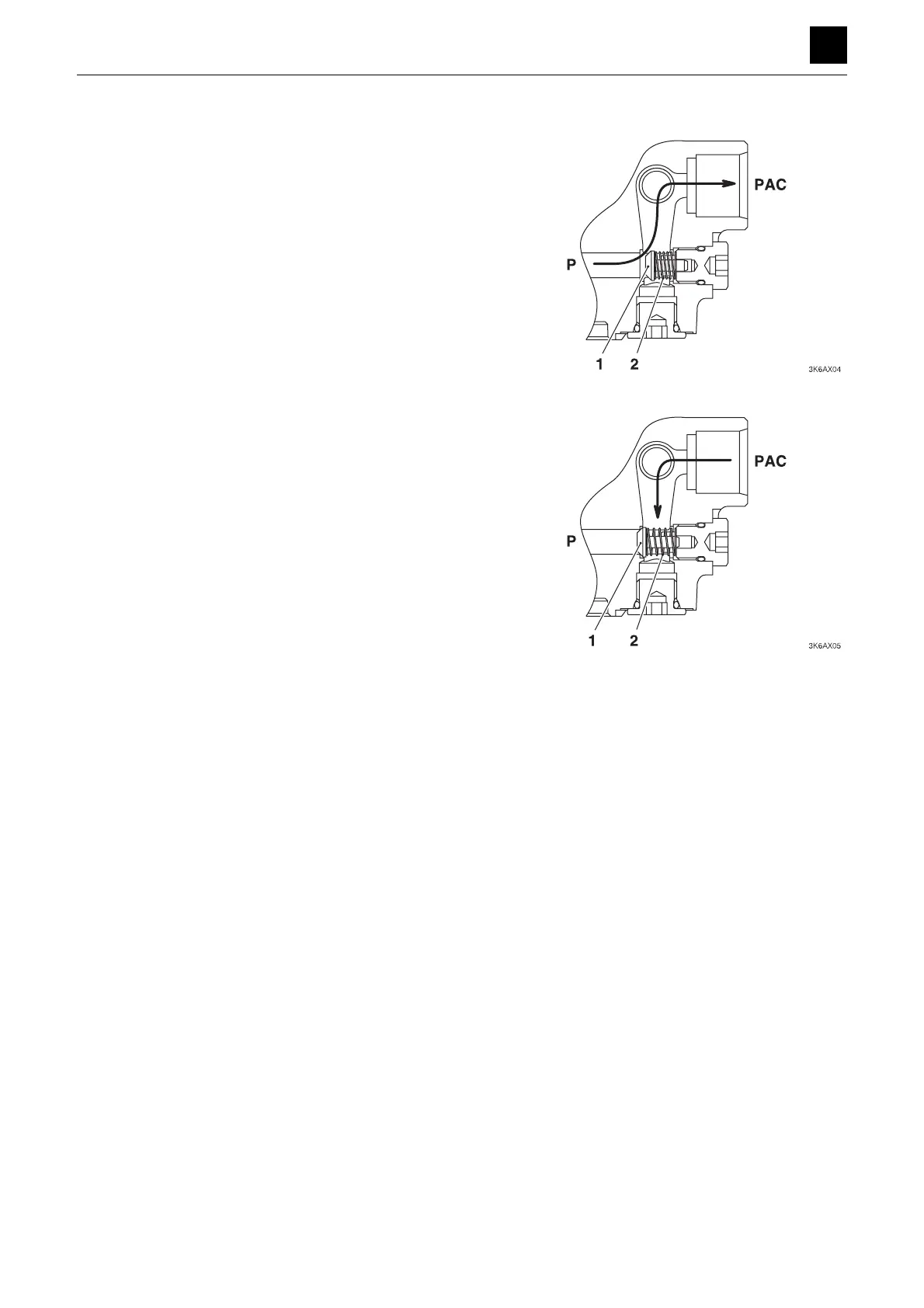

Check function
Port P J Port PAC and Port B
When the pressure in port P exceeds the force applied
by the spring (2), the plunger (1) moves to the right, al-
lowing the pressure oil to flow from port P to port PAC.
Port PAC J Port P
The plunger (1) is returned to the left by the spring (2),
and the port PAC and port P are blocked off to prevent
backflow into either port.
