MONOCHROME LCD CLUSTER PANEL DISPLAY AND LCD SPECIFICATIONS (WITHOUT A CAN)
SETTING SCREEN (ALARM)-2
15
6
SETTING SCREEN (ALARM)-2 6S3AY00
SETTING SCREEN (ALARM)-2

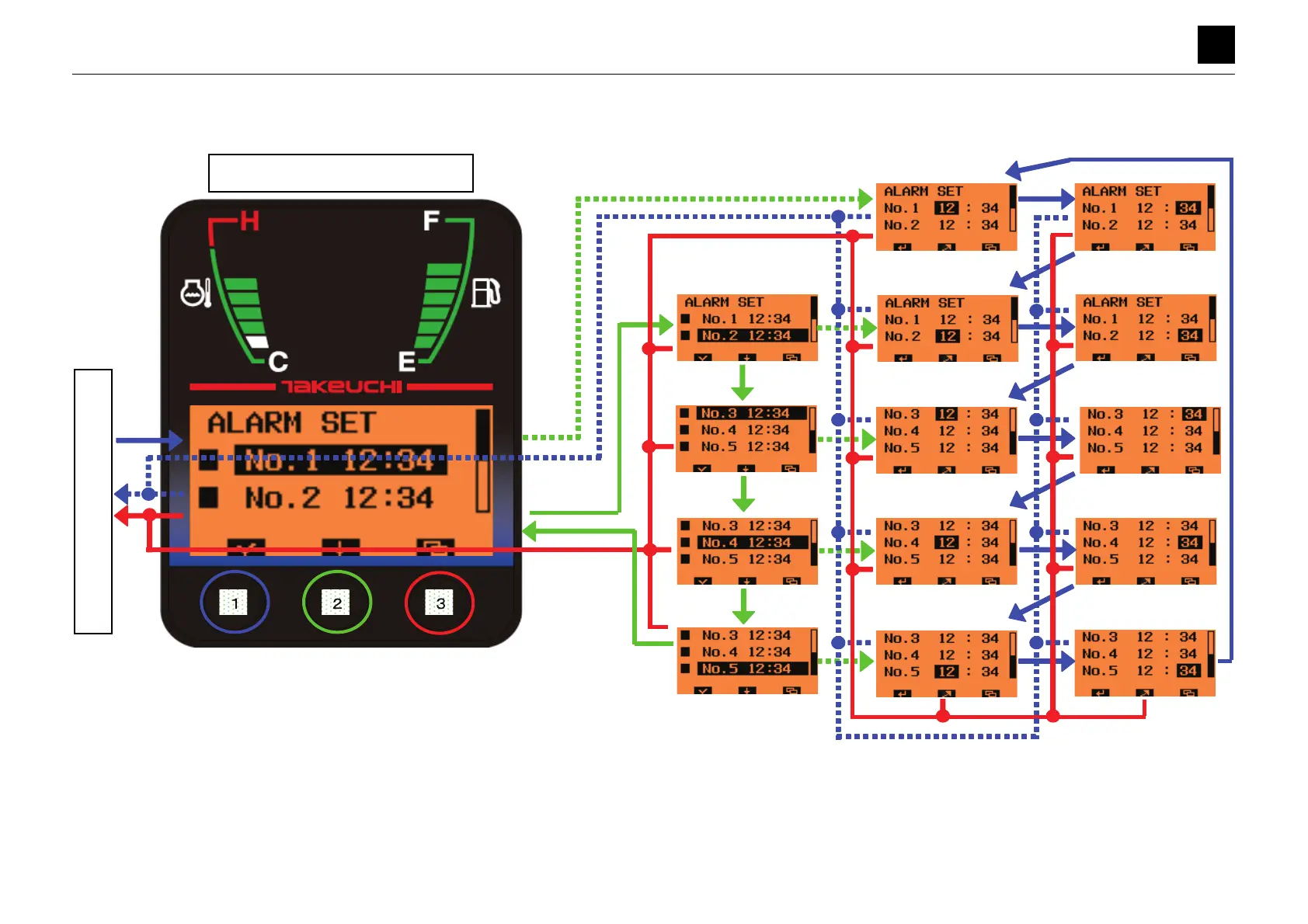

Setting Screen (ALARM)
• Pressing Button [2] on the Setting screen for a short while moves the bar to
the next option.
• Pressing and holding down Button [2] on the Setting screen for 3 seconds moves the bar to
the ALARM TIME screen. Pressing Button [2] on that screen for a short while causes the numerical value
for the highlighted option to increase. Pressing and holding down Button [2] for 1 second causes the setting value of the highlighted option to increase at high speed.
• Setting range for hours: 1 to 24 (Toggles from 1 to 2 to...24 and back to 1, where it starts start over). Setting range for minutes: 00 to 59 (Toggles from 00 to 01 to...59 and
back to 00, and back to 1, where it starts over)
• Pressing Button [1] for a short while under the time settings option for ALARM moves the bar to the next option. The setting value for the highlighted option flashes.
• Pressing and holding down Button [1] for 2 seconds completes configuration of the alarm and moves the display to the Settings Selection screen.
• Pressing Button [3] on the Setting screen for a short while moves the display to the Settings Selection screen. (Any changes made to the settings will be canceled.)
