GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-3
Copyright © 2013, Diversey Inc.
05.10.11 handle - cover and electronic - 455B_V1.00.fm
5.1 Handle
5.1.2 Mounting of handle cover and electronics

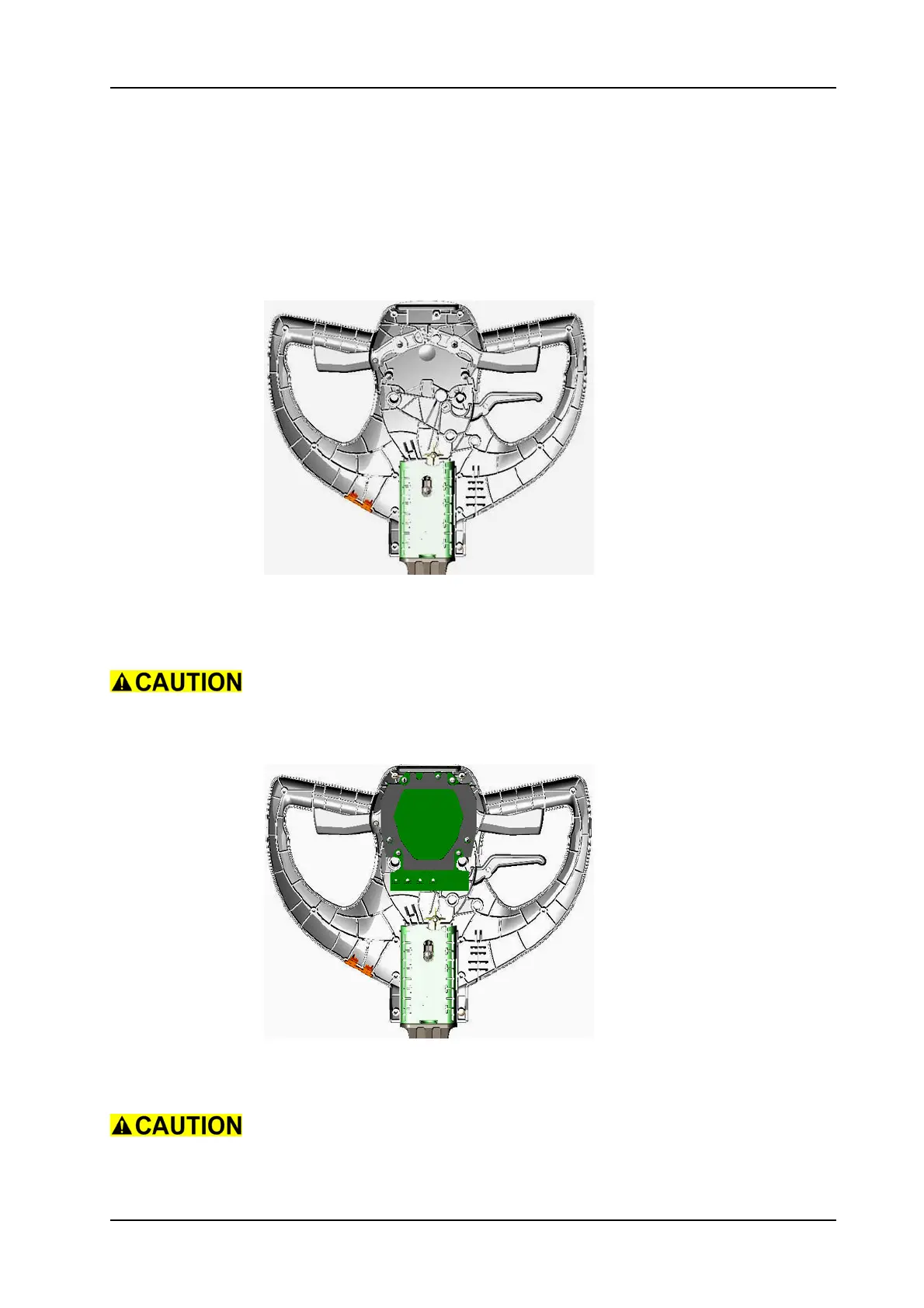

Picture 3: Handle without cover and electronics
• Connect the ribbon cable to the electronics.
• Position the electronics.
Ensure that the loop of the ribbon cable is positioned correctly and
does not touch the switcher levers.
• Mount the 3 fixation screws for the electronics.
Picture 4: Handle without cover
• Assemble the cover.
Ensure that the levers, bowden cables and hose (01/121) are in the
correct position.
