GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-12
Copyright © 2013, Diversey Inc.
05.10.24 handle - toothrocker - 455B_V1.00.fm
5.1 Handle
5.1.8 Mounting of toothrocker

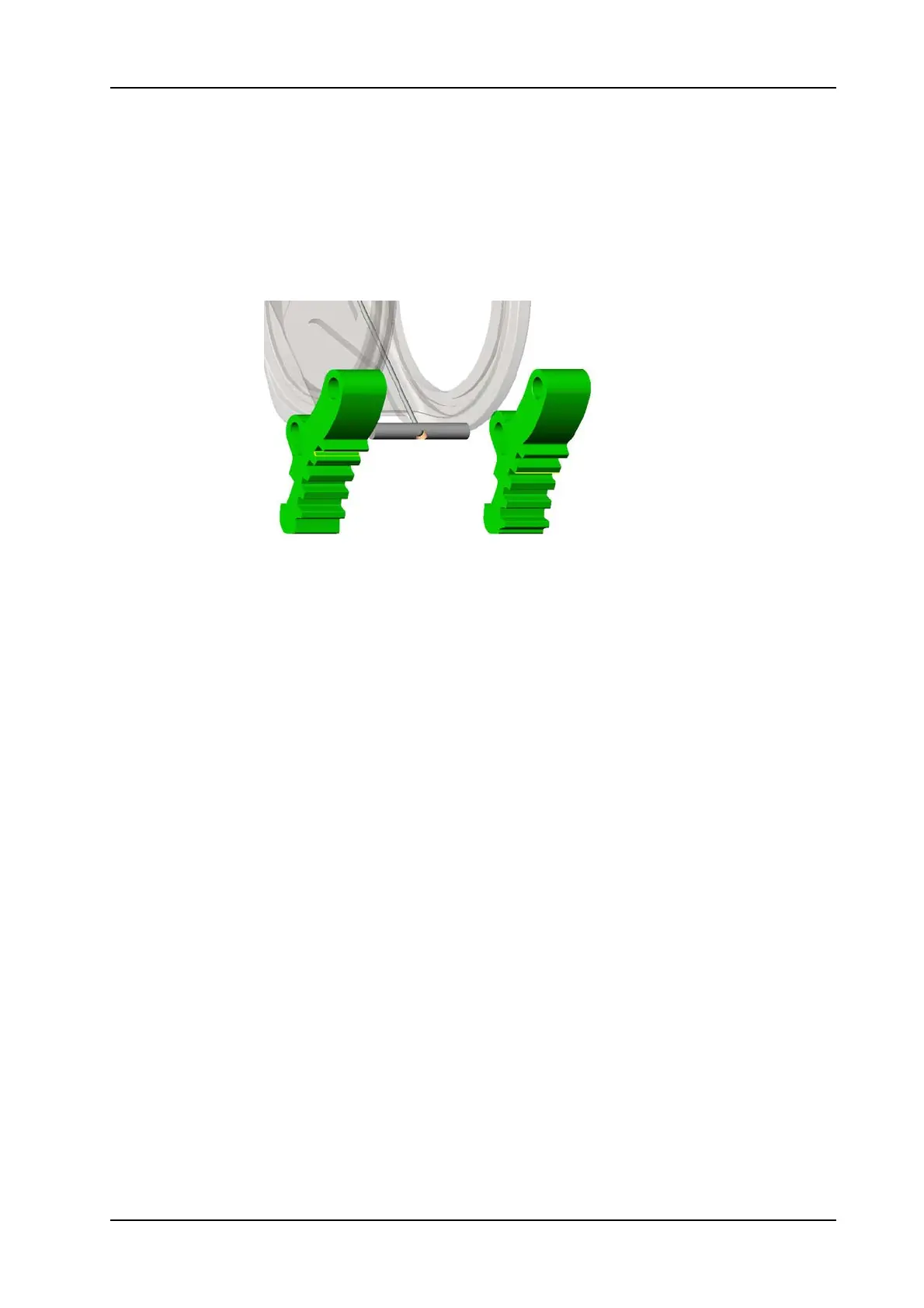

Picture 13: Toothrocker detail
• Mount the two toothrockers onto the axle of the bowden cable.
Remarks
The two toothrockers are different in shape. The mounting position
doesn't matter.
• Position the two springs on the toothrockers.
•Mount the axle.
Remarks
Make sure that the toothrockers and springs are correct in place.
