6.2 Dashboard
6.2.1 Removing of dashboard

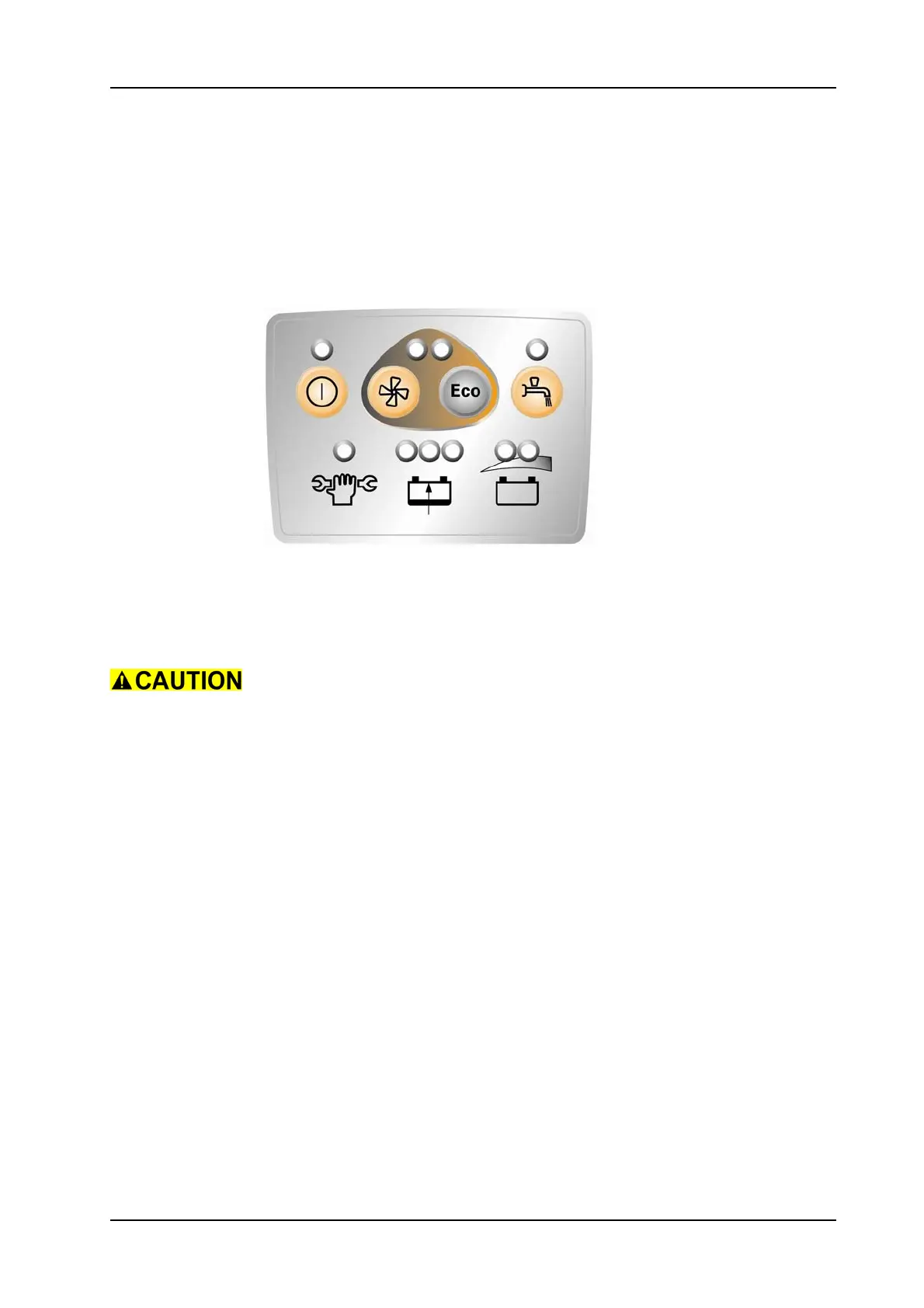

Picture 1: Dashboard
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS in the mechanical section.
• Remove the dashboard foil (01/111).
Be cautious when removing the dashboard as you can damage the
wires or the ribbon cables of the dashboard.
