5.5 Squeegee lowering mechanism
5.5.1 Removing of squeegee bracket spring

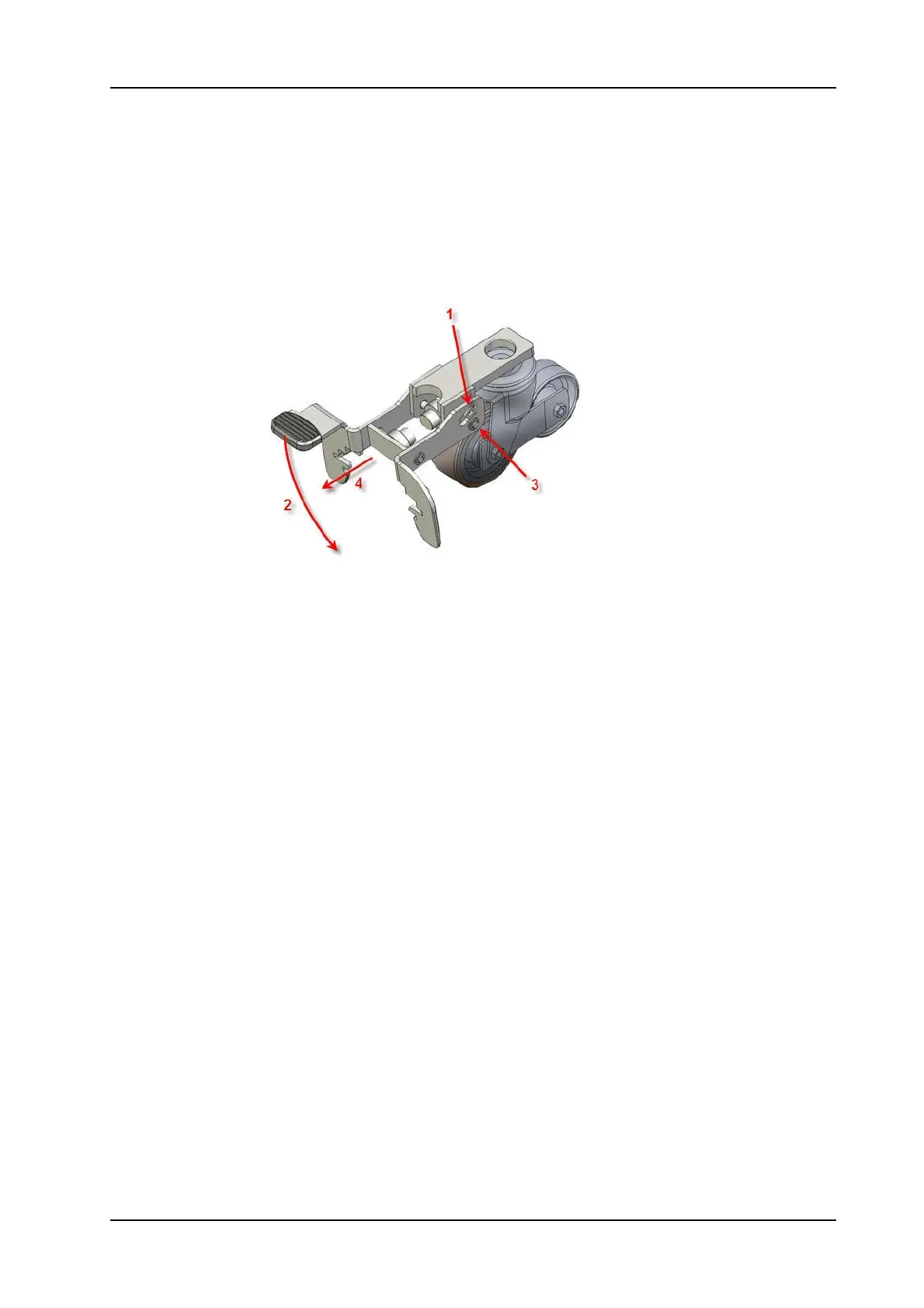

Picture 34: Squeegee lowering
• Remove the squeegee from the fixation.
• Remove the tool from the brush drive unit.
1 Remove screws (455 & 755E:04/103, 755B:03/103) from sup-
port (455 & 755E:04/101, 755B:03/101).
2 Put the bracket in working position (down).
Remarks
Lift up the rear of machine and incline it to the front to loosen the
tension of the spring.
3 Remove one retaining ring (455 & 755E:04/111, 755B:03/111)
of rear axle (455 & 755E:04/110, 755B:03/110).
• Remove the rear axle.
4 Remove pressure spring (455 & 755E:04/106, 755B:03/106).
