GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-6
Copyright © 2013, Diversey Inc.
05.10.16 handle - switch lever - 455B_V1.00.fm
5.1 Handle
5.1.4 Mounting of switch lever

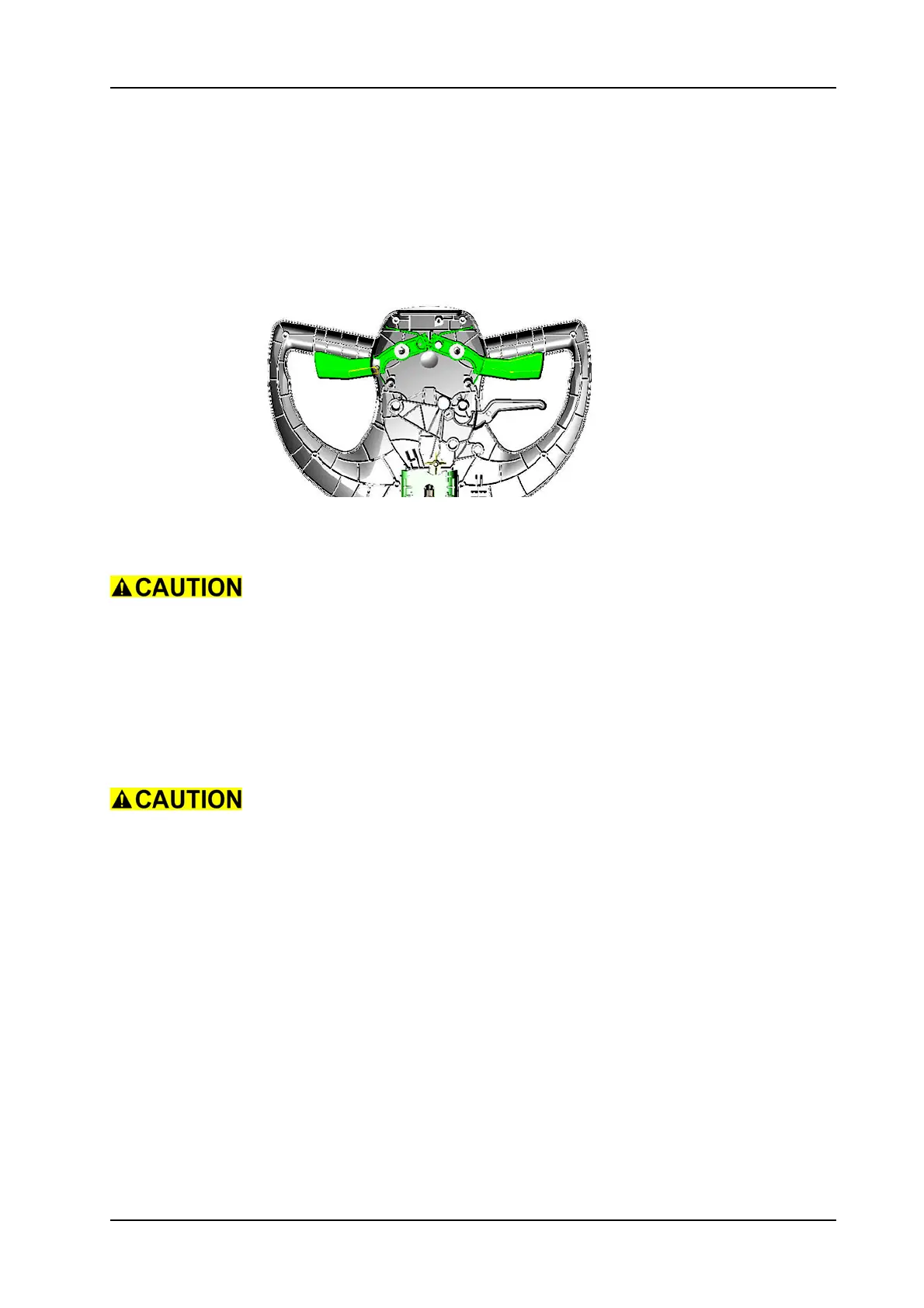

Picture 6: Switch lever
• Mount switch levers onto the handle.
Ensure that the RH switch lever has the bolt with magnet (01/118)
mounted.
Adjustment
Ensure that the gear teeth of the switch levers are correctly
positioned. The switch levers have to be horizontally in one line.
• Mount the screws for the left and right switch lever.
Ensure that the switch levers move easily. Do not tighten the fixation
screws to hard.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
