GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-48
Copyright © 2013, Diversey Inc.
05.68.10 brush drive - brush belt new setup - 455B_755B eco_755B power_855B power_V1.00.fm
5.9 Brush drive
5.9.3 Removing of brush belt - New setup

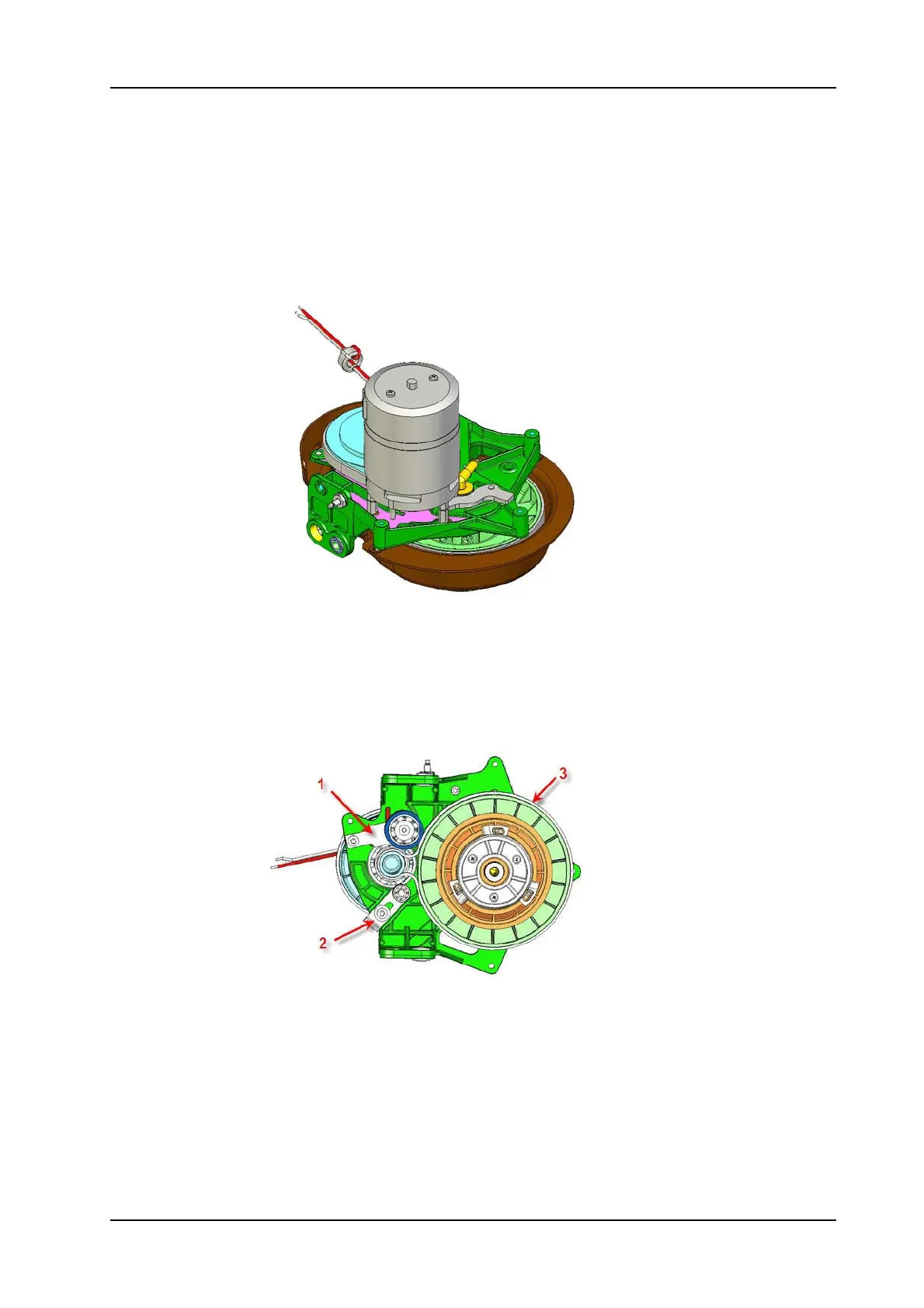

Picture 73: Brush drive
• Remove brush drive unit according to chapter REMOVING OF
BRUSH DRIVE UNIT.
• Position brush drive unit upside down.
• Remove the three screws (08/137) of cover.
• Remove the cover (08/129).
Picture 74: Remove belt - New setup
1 Untighten belt tensioning roller (08/118) and remove it.
2 Remove the small tensioning roller (08/150).
3 Remove the belt (08/123).
