5.1 Handle
5.1.9 Removing of bowden cable

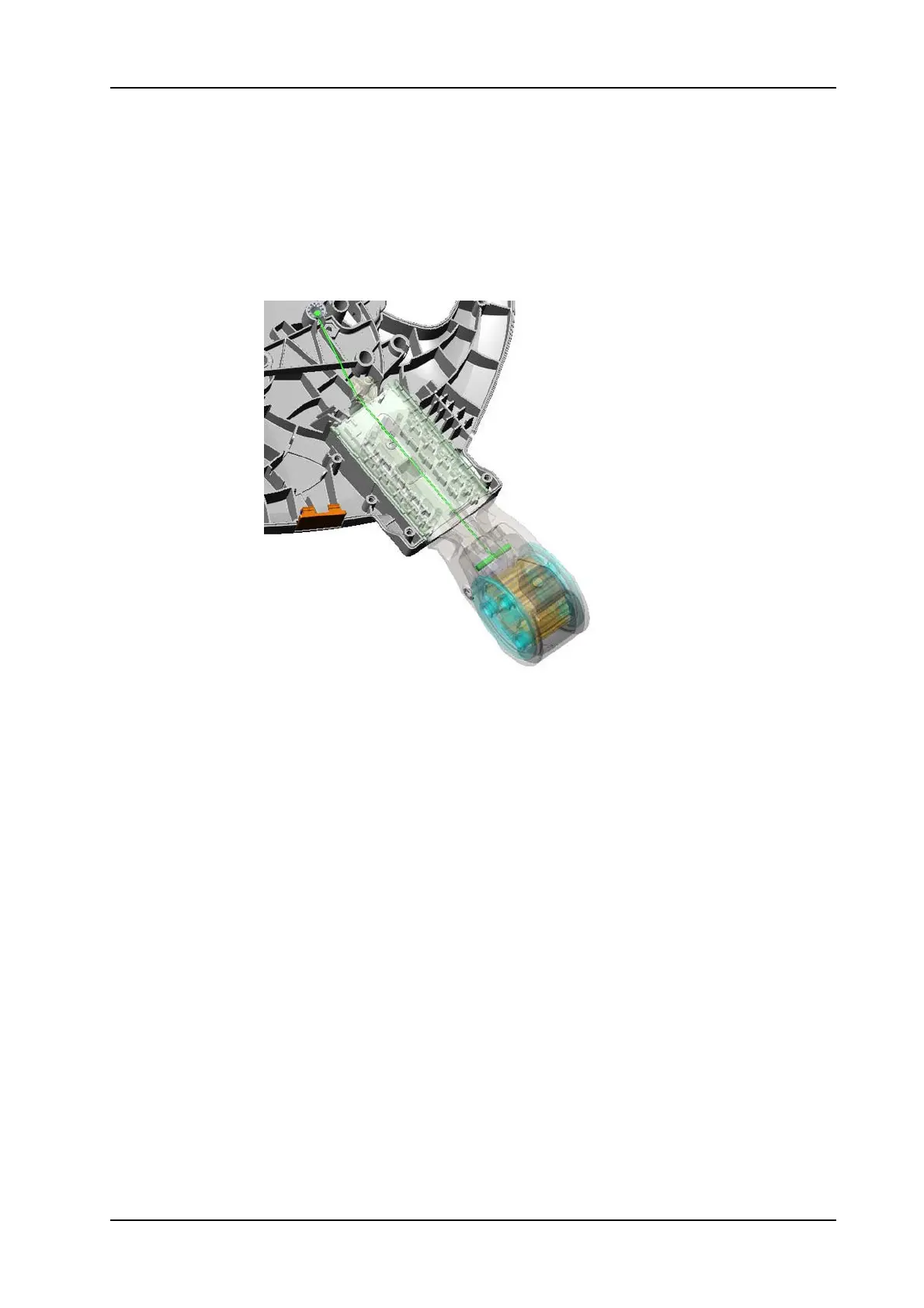

Picture 16: Bowden cable
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the toothrockers according to chapter REMOVING OF
TOOTHROCKER.
• Remove the castor (01/135) from the handle housing.
• Remove the eccentric shaft together with the end bolt of the
bowden cable according to chapter REMOVING OF HANDLE
ADJUSTMENT LEVER.
• Pull out the bowden cable (01/119) from the side of the
articulation.
