GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-51
Copyright © 2013, Diversey Inc.
05.68.30 brush drive - pulley new setup - 455B_755B eco_755B power_855B power_V1.00.fm
5.9 Brush drive
5.9.6 Mounting of pulley - New setup
e

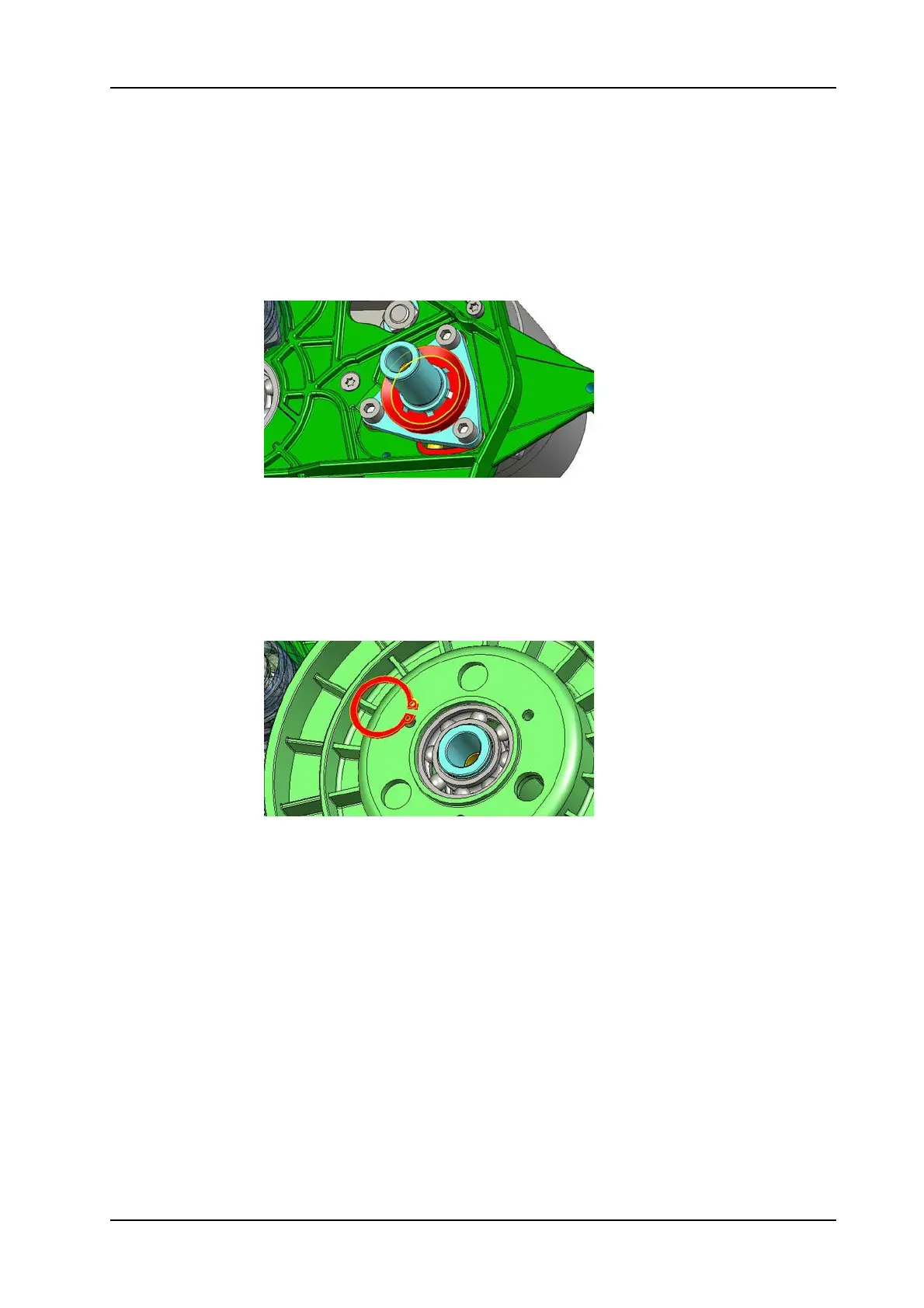

Picture 78: Brush pulley detail seal
Service
Apply lubricant (08/149) on the sealing ring (08/147).
• Mount the new pulley.
• Position the retaining ring.
Picture 79: Brush drive pulley detail retaining ring
Service
Apply lubricant (08/149) on the sealing ring (08/130).
• Position the sealing ring and the centre plug.
• Position the catch.
• Position the coupling.
• Fix the coupling with the three screws.
Service
Tighten the screws (8/136) with 2.3 Nm.
• Complete assembling according to the chapter MOUNTING OF
BRUSH BELT - NEW SETUP.
• Complete assembling according to the chapter MOUNTING OF
BRUSH DRIVE UNIT.
