GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-28
Copyright © 2013, Diversey Inc.
05.34.10 magnetic valve, eletrical parts - magnetic valve - 455B_V1.00.fm
5.4 Magnetic valve, electrical parts
5.4.2 Mounting of filter 24V

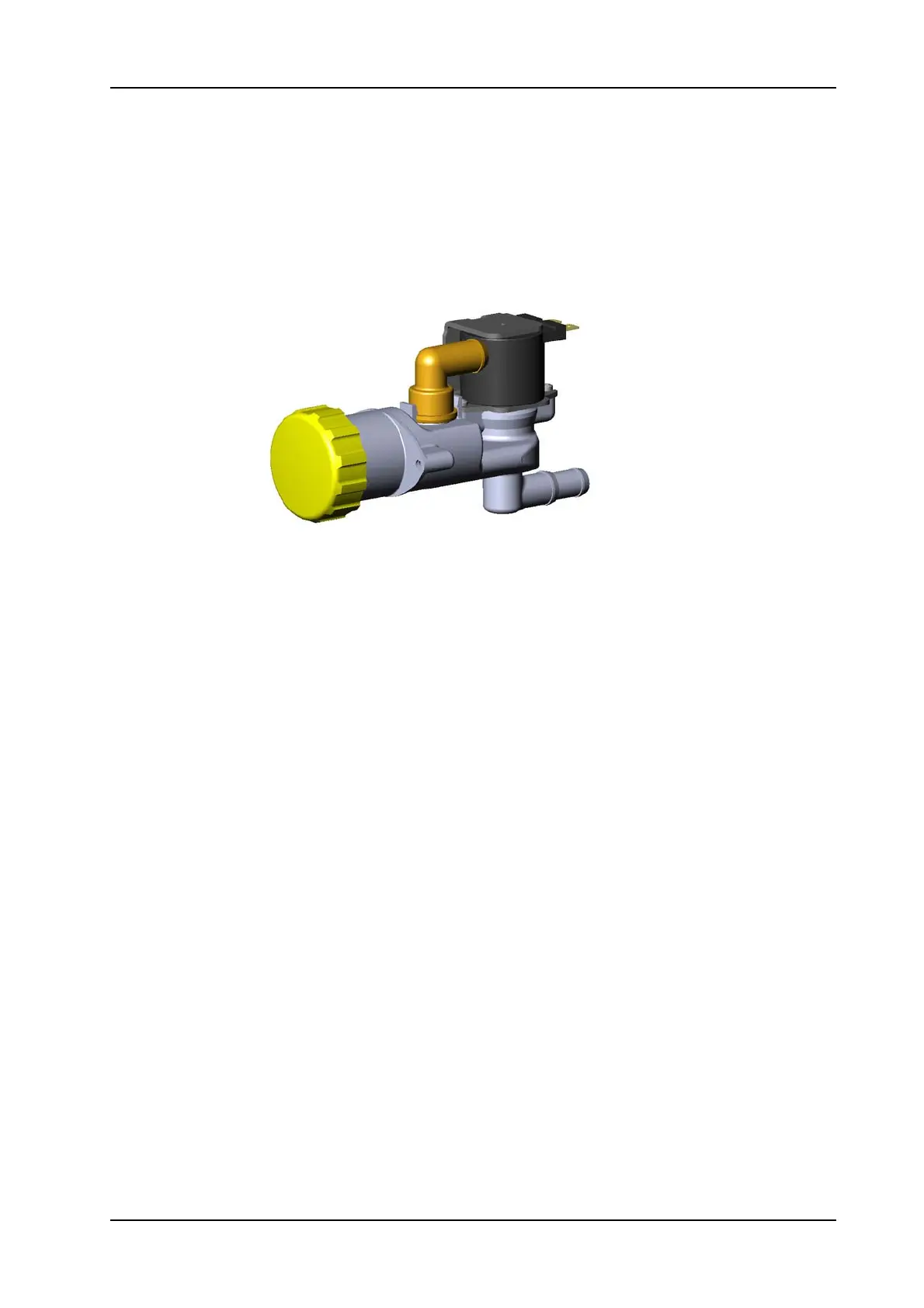

Picture 33: Filter 24V
• Connect wires to coil.
• Connect fresh water hoses to the filter 24V.
• Tighten the hose clamps.
• Thread the filter 24V into the chassis.
• Position fixation screws an tighten them.
• Position filter set on the filter 24V.
