5.1 Handle
5.1.10 Mounting of bowden cable

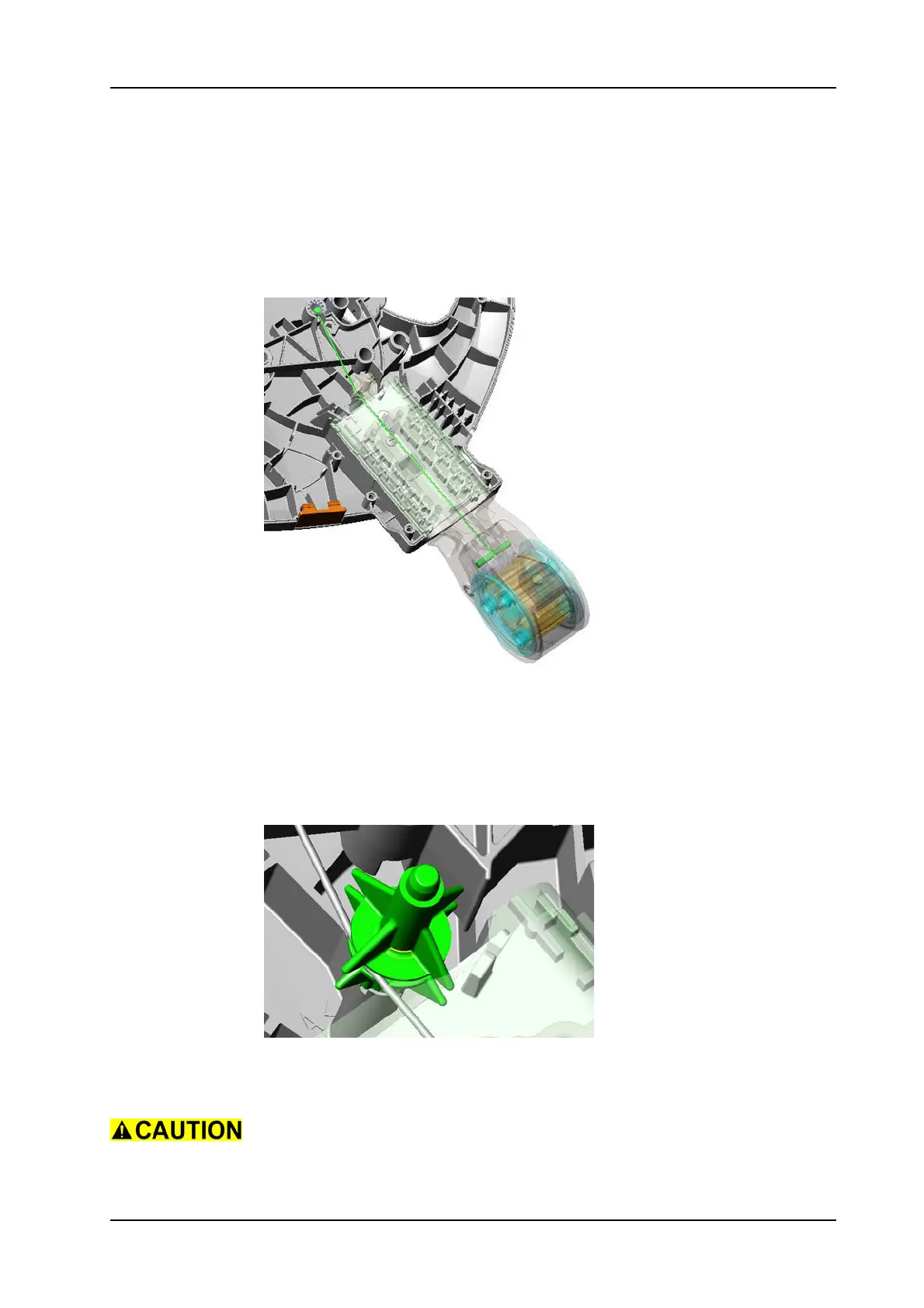

Picture 17: Bowden cable
• Mount the bowden cable from the side of the articulation.
• Mount the toothrockers according to chapter MOUNTING OF
TOOTHROCKER.
• Mount the eccentric shaft together with the end bolt of the
bowden cable according to chapter MOUNTING OF HANDLE
ADJUSTMENT LEVER.
Picture 18: Bowden cable castor
• Mount the castor on the handle housing.
Make sure that the bowden cable is correct positioned in the castor.
• Mount the handle cover according to chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
