GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-29
Copyright © 2013, Diversey Inc.
05.36.10 squeegee lowering mechanism - bracket spring - 455B_455E_755B eco_755E_755B power_855B power_V1.00.fm
5.5 Squeegee lowering mechanism
5.5.2 Mounting of squeegee bracket spring

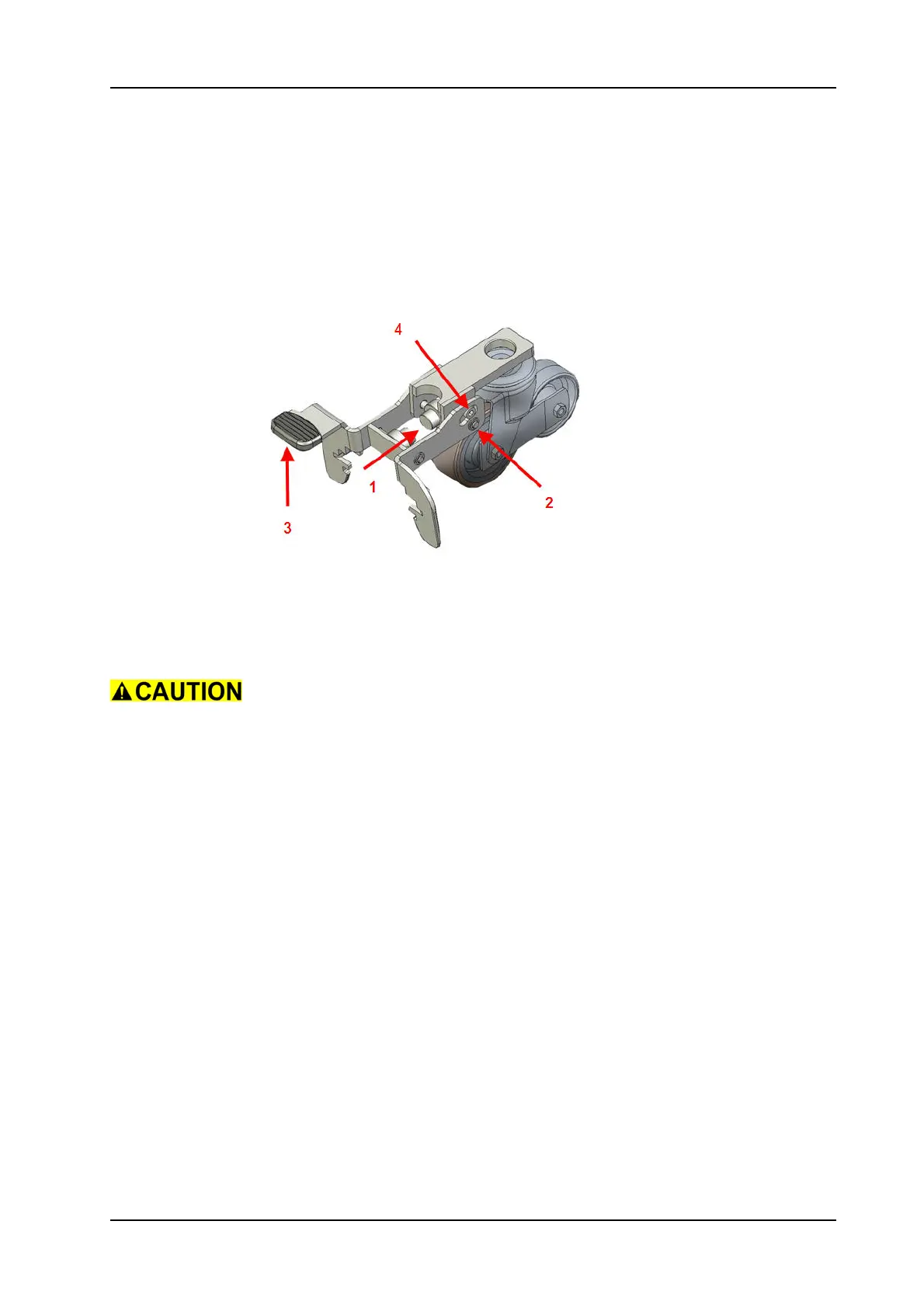

Picture 35: Squeegee lowering back
• Assemble new pressure spring.
• Assemble the rear axle.
• Position the retaining ring on the rear axle.
Ensure that the slide bearings are properly positioned.
• Move the squeegee bracket to semi transport position.
• Assemble the screws.
Service
Apply lubricant locking on the screws (455 & 755E:04/103, 755B:03/
103).
