GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-27
Copyright © 2013, Diversey Inc.
05.34.10 magnetic valve, eletrical parts - magnetic valve - 455B_V1.00.fm
5.4 Magnetic valve, electrical parts
5.4.1 Removing of filter 24V

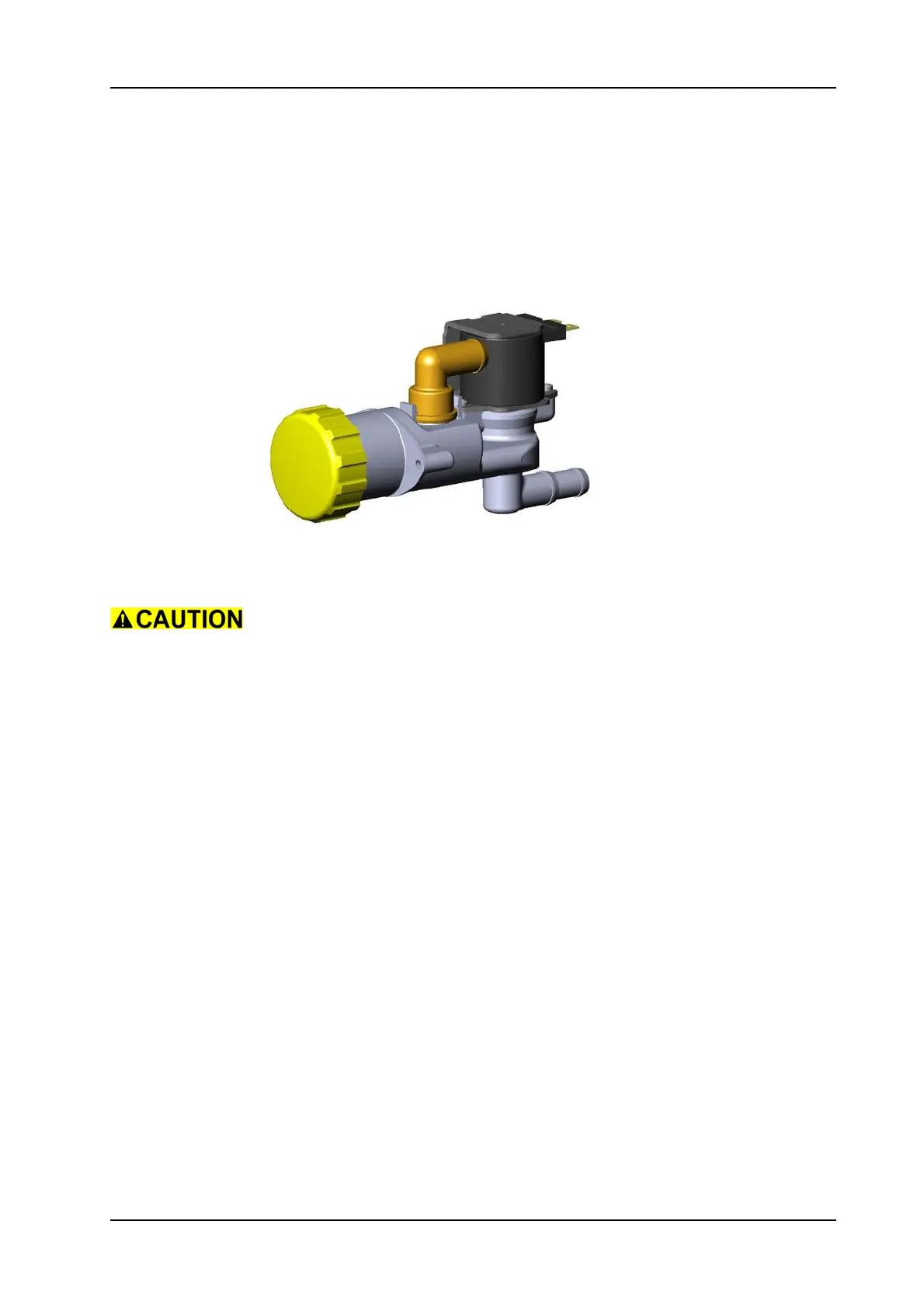

Picture 32: Filter 24V
• Remove filter set (09/102) of filter 24V.
Ensure that no water is in the fresh water system before you
disconnect the hoses.
• Remove the two fixation screws (09/103) from chassis (07/105).
• Thread out filter 24V (09/101) from the chassis.
• Loosen the two hose clamps (03/118) from the filter 24V.
• Disconnect the fresh water hose (03/119,120).
• Disconnect the wires from coil.
• Remove complete filter 24V.
