GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-38
Copyright © 2013, Diversey Inc.
05.40.27 squeegee - back blade new set up - 455B_455E_755B eco_755E_755B power_855B power_V1.00.fm
5.6 Squeegee
5.6.9 Removing of back blade new setup

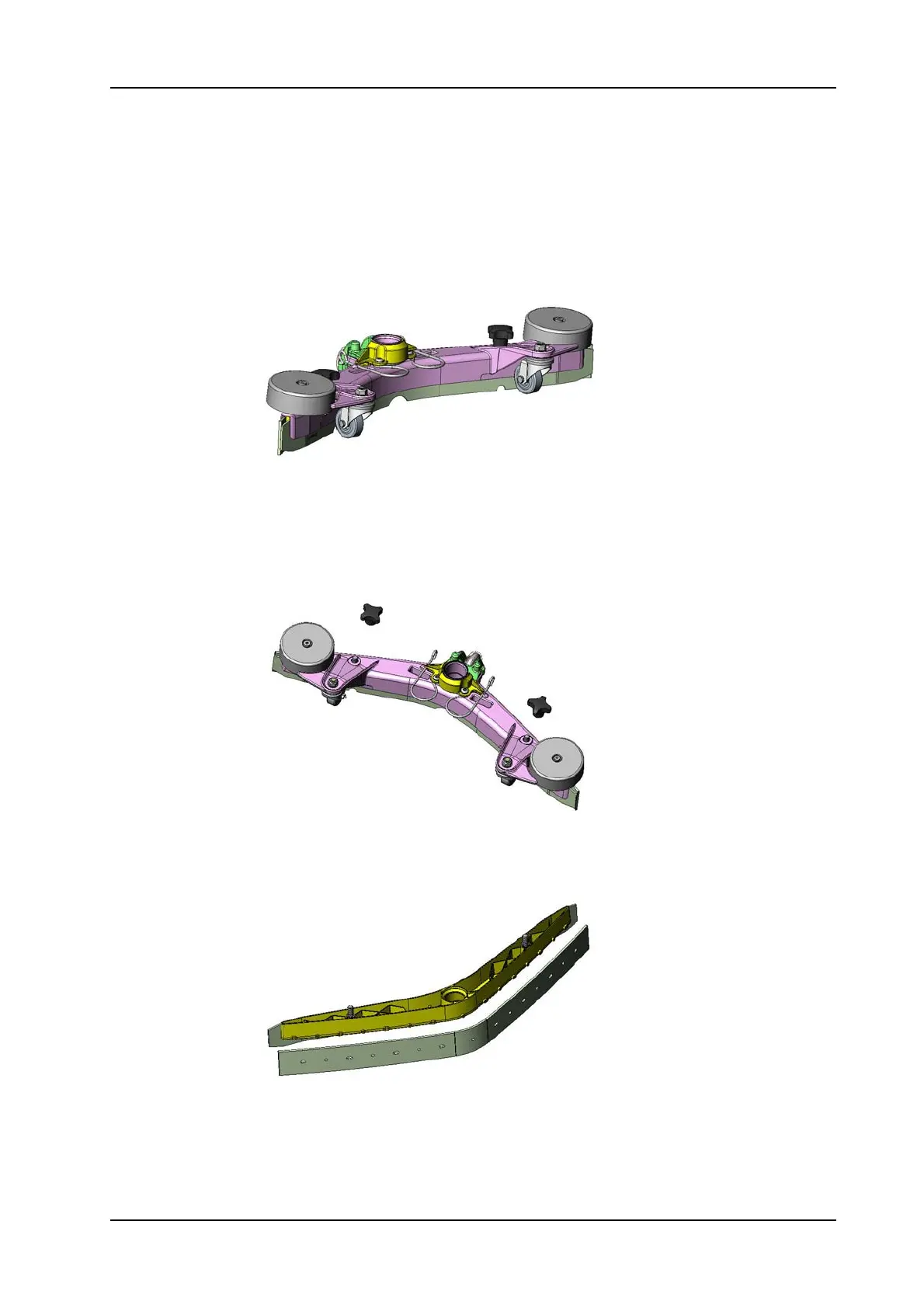

Picture 56: Squeegee new setup
• Remove the two star knobs (455 & 755E: 05/108, 755B & 855:
04/108).
• Press out the squeegee inlet (455 & 755E: 05/124, 755B & 855:
04/124).
Picture 57: Star knob
• Remove back blade (455: 05/122, 755B: 04/122, 755E: 05/108,
855: 05/122) by tearing it off from the squeegee inlet.
Picture 58: Back blade
To Next Page
