GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-34
Copyright © 2013, Diversey Inc.
05.40.20 squeegee - back blade old set up - 455B_455E_755B eco_755E_755B power_855B power_V1.10.fm
5.6 Squeegee
5.6.5 Removing of back blade old setup

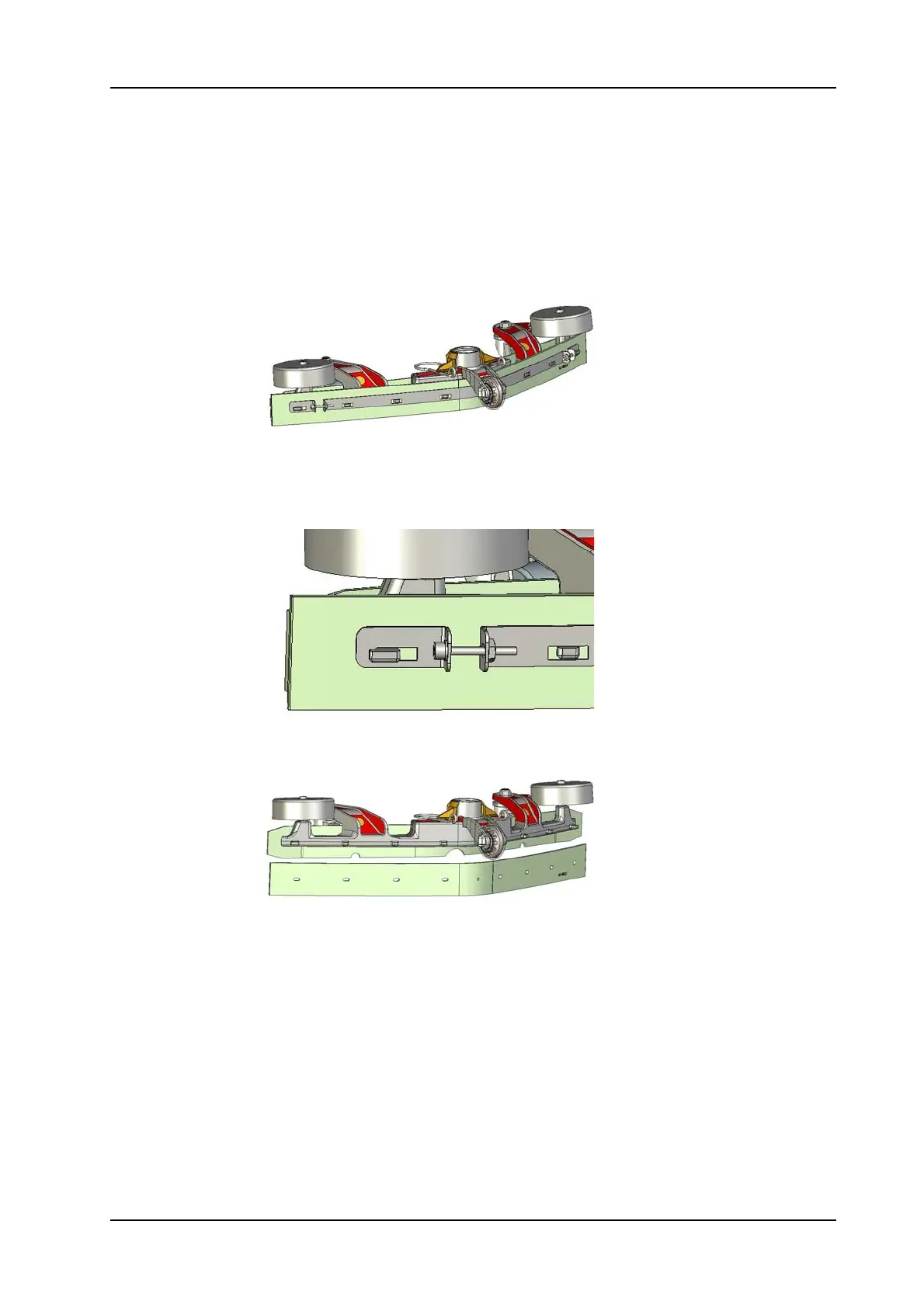

Picture 46: Back blade position
• Untighten the fixation screws (455 & 755E:05/111, 755B:04/
111) on both sides to release the pressure of the tightening
strap and remove it.
Picture 47: Back blade fixation
• Remove back blade.
Picture 48: Remove back blade
To Next Page
