5.3 Vacuum unit, water outlet
5.3.3 Removing of water regulation set

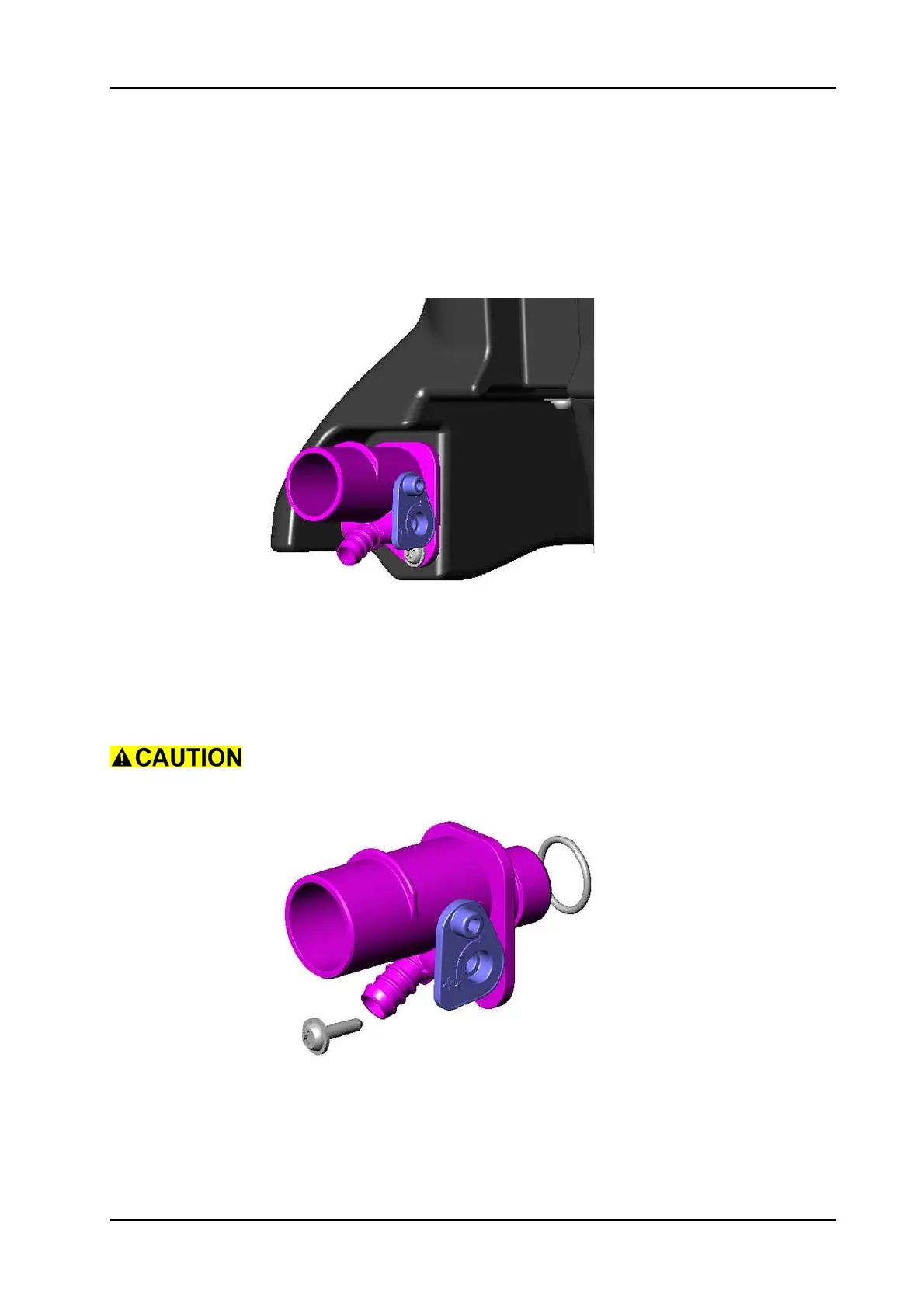

Picture 29: Water regulation set
• Untighten the fresh water and draining hose clamp (03/118) and
(02/129).
• Remove fresh water draining hose (02/107) from the water
regulation set (03/122).
• Remove fresh water hose (03/119) from water regulation set.
Ensure that no water is in the fresh water system before you
disconnect the hose.
Picture 30: Water regulation set detail
• Remove water regulation set fixation screw (03/124).
• Remove water regulation set.
