VL3X overview
VL3X – Reference manual (updated 2015-07-16) 33
Diagrams

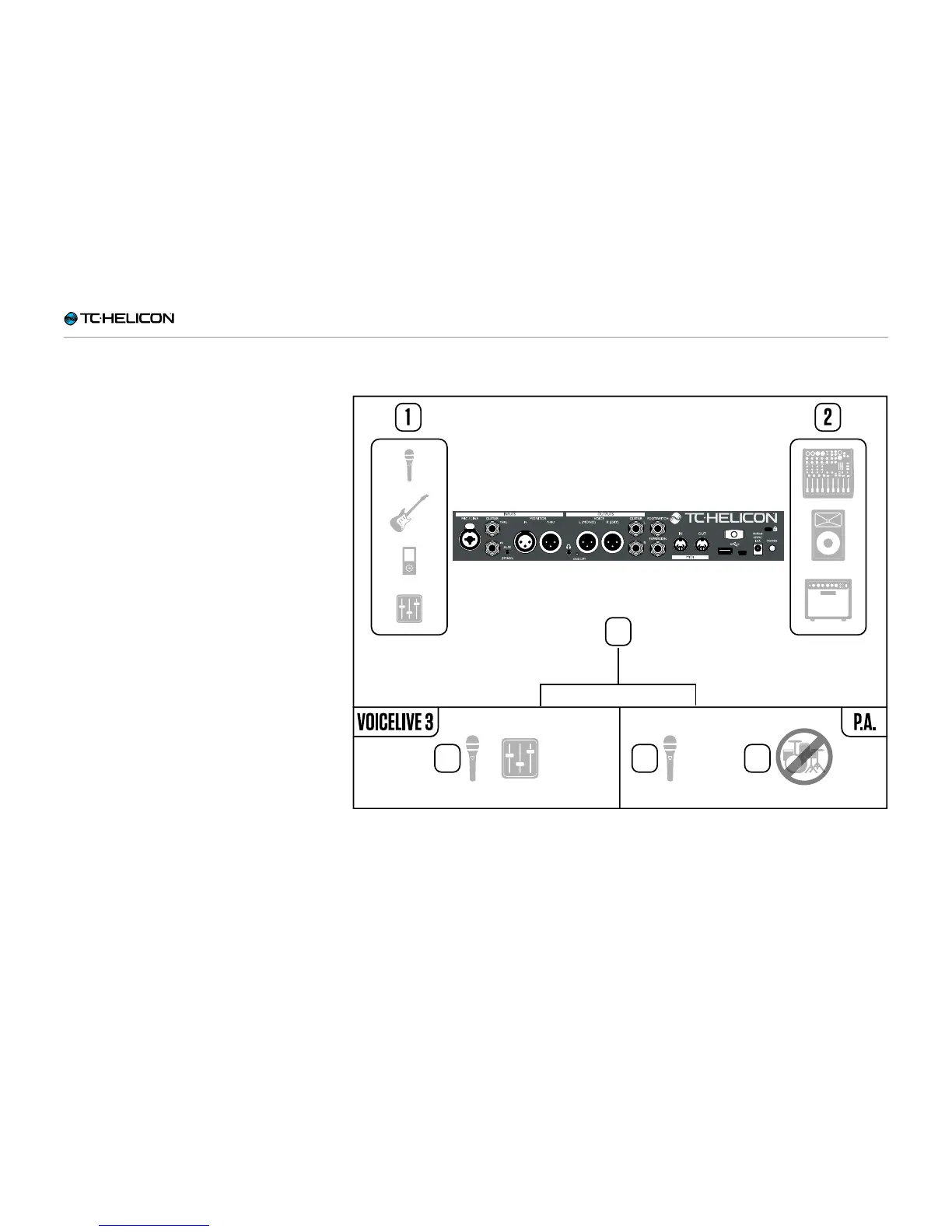

On the following pages, you will see some con-
nection diagrams. We have set things up to give
you clear and concise representations of what
goes where.
There are a few things we would like you to keep
in mind as you look at the diagrams:
1. Inputs to VL3X will be to the left of the back
panel image.
2. Outputs from VL3X will be to the right of the
back panel image.
3. There are two boxes on the bottom of each
diagram.
► The VL3X box on the left shows “what you
hear” from your VL3X headphone output.
► The P.A. box on the right shows “what you
hear” from the P.A. speakers.
4. We don’t account for other inputs/instruments
when showing “what you hear” from the P.A.,
so you won’t see pictures of drums etc.
5. In a lot of cases, “what you hear” will be the
same for both VL3X headphone output and
P.A. – but it can also be different.
3
4
5 5
Reading the diagrams in this manual
