Tektronix TDS 200-Series User Manual

Application Examples
TDS 200-Series Digital Oscilloscope User Manual
43

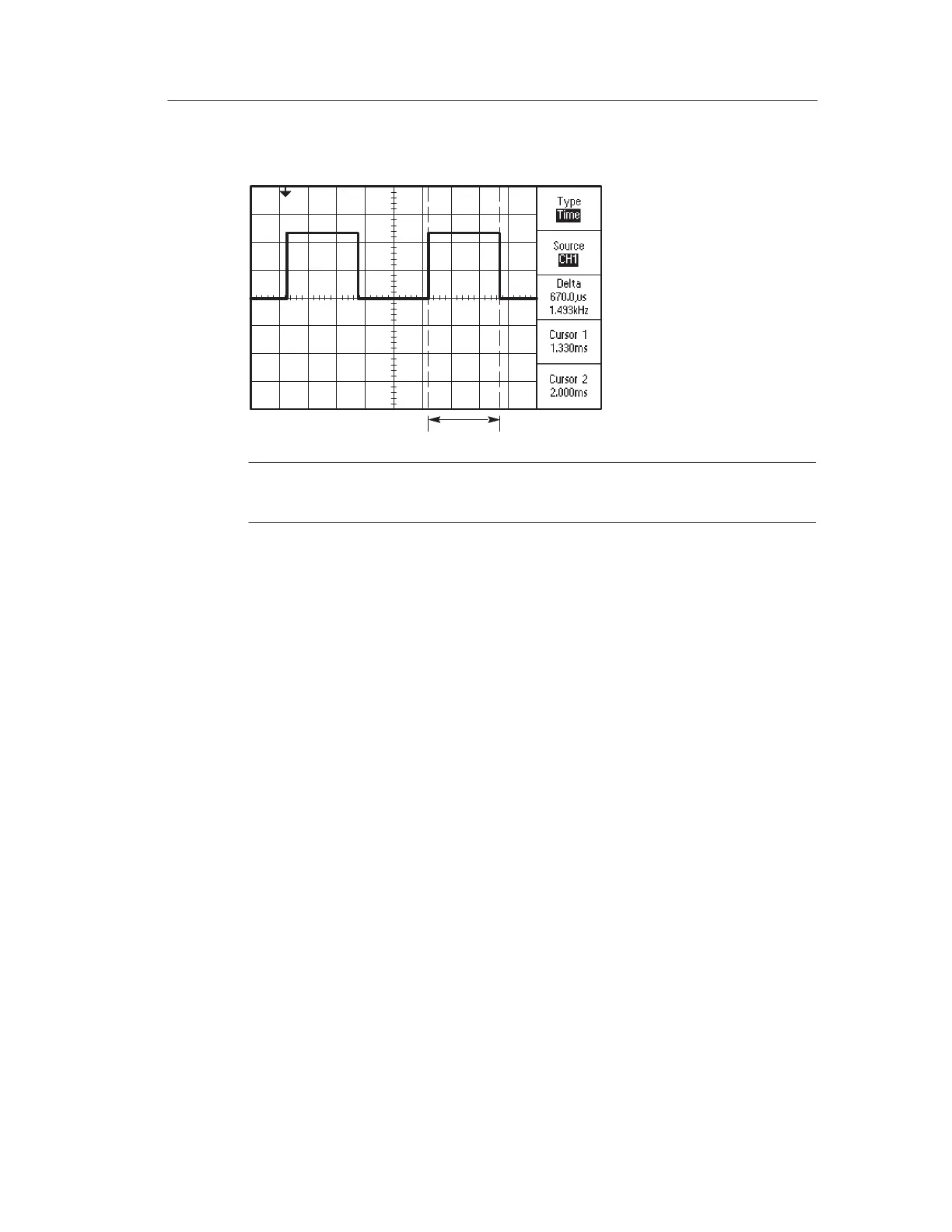

NOTE. The TDS2MM extension module provides pulse width as an
automatic measurement.
Measuring Rise Time
After measuring the pulse width, you decide that you need to check
the rise time of the pulse. Typically, you measure rise time between
the 10% and 90% portion of the waveform. To measure the rise time,
do these steps:
1. Adjust the SEC/DIV knob to display the rising edge of the
waveform.
2. Adjust the VOLTS/DIV knob to set the waveform amplitude to
about five divisions.
3. Push the CH 1 MENU button to see the CH1 menu if it is not
displayed.
4. Push the Volts/Div button to select Fine.
