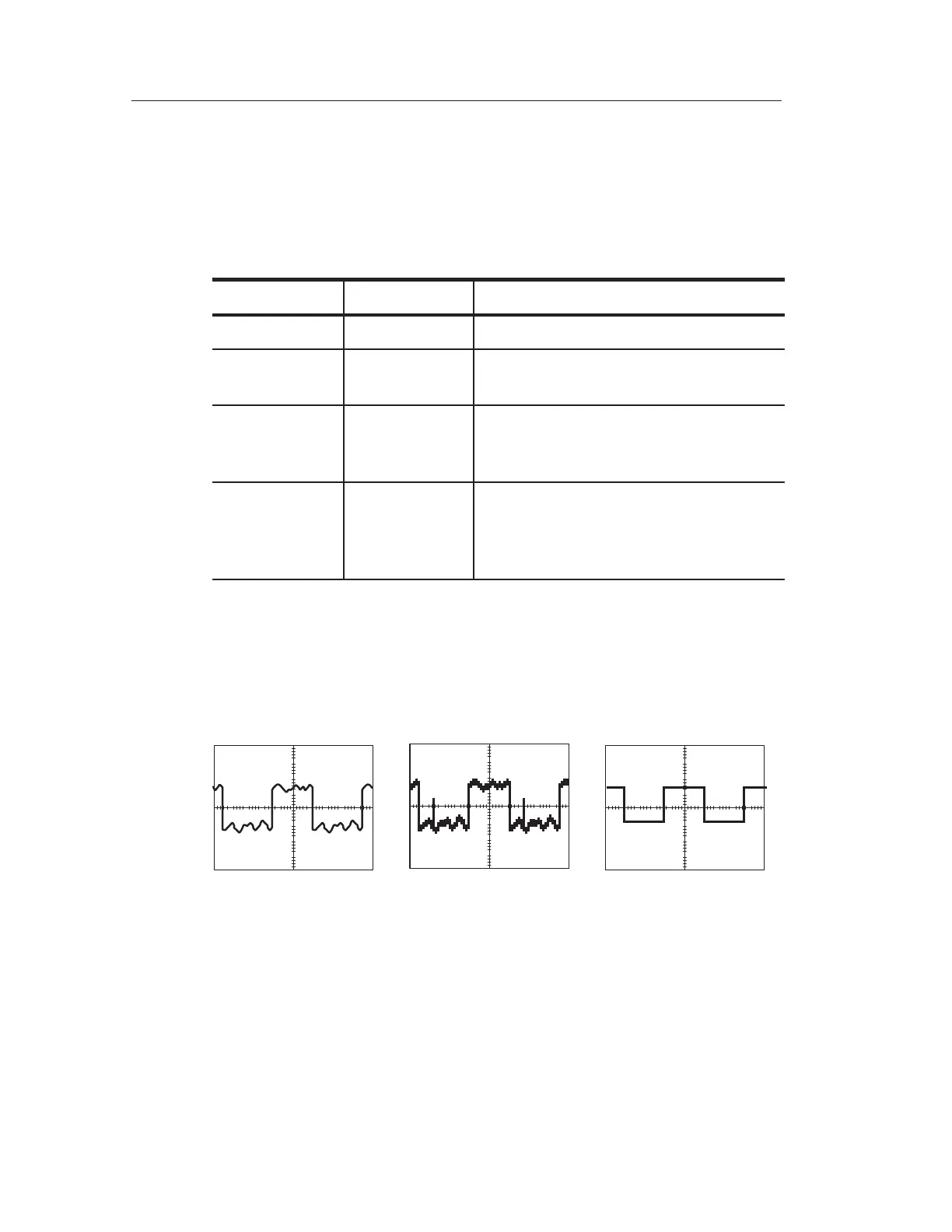

TDS 200-Series Digital Oscilloscope User Manual
Acquire
Push the ACQUIRE button to set acquisition parameters.
Menus Settings Comments
Sample This is the default mode
Peak Detect Use to detect glitches and reduce the
possibility of aliasing
Average Use to reduce random or uncorrelated
noise in the signal display. The number of
averages is selectable.
Averages 4
16
64
128
Select Number of Averages
Key Points
If you probe a noisy square wave signal that contains intermittent,
narrow glitches, the waveform displayed will vary depending on the
acquisition mode you choose.
Sample Peak Detect Average
