Measuring Ring Amplitude
You measured the ring frequency in the previous example. Now you
want to measure the amplitude of the ringing. To measure the
amplitude, do these steps:
1. Push the CURSOR button to see the Cursor menu.
2. Push the top menu box button to select Voltage.
3. Use the CURSOR 1 knob to place a cursor on the highest peak of
the ring.
4. Use the CURSOR 2 knob to place a cursor on the lowest point of
the ring.

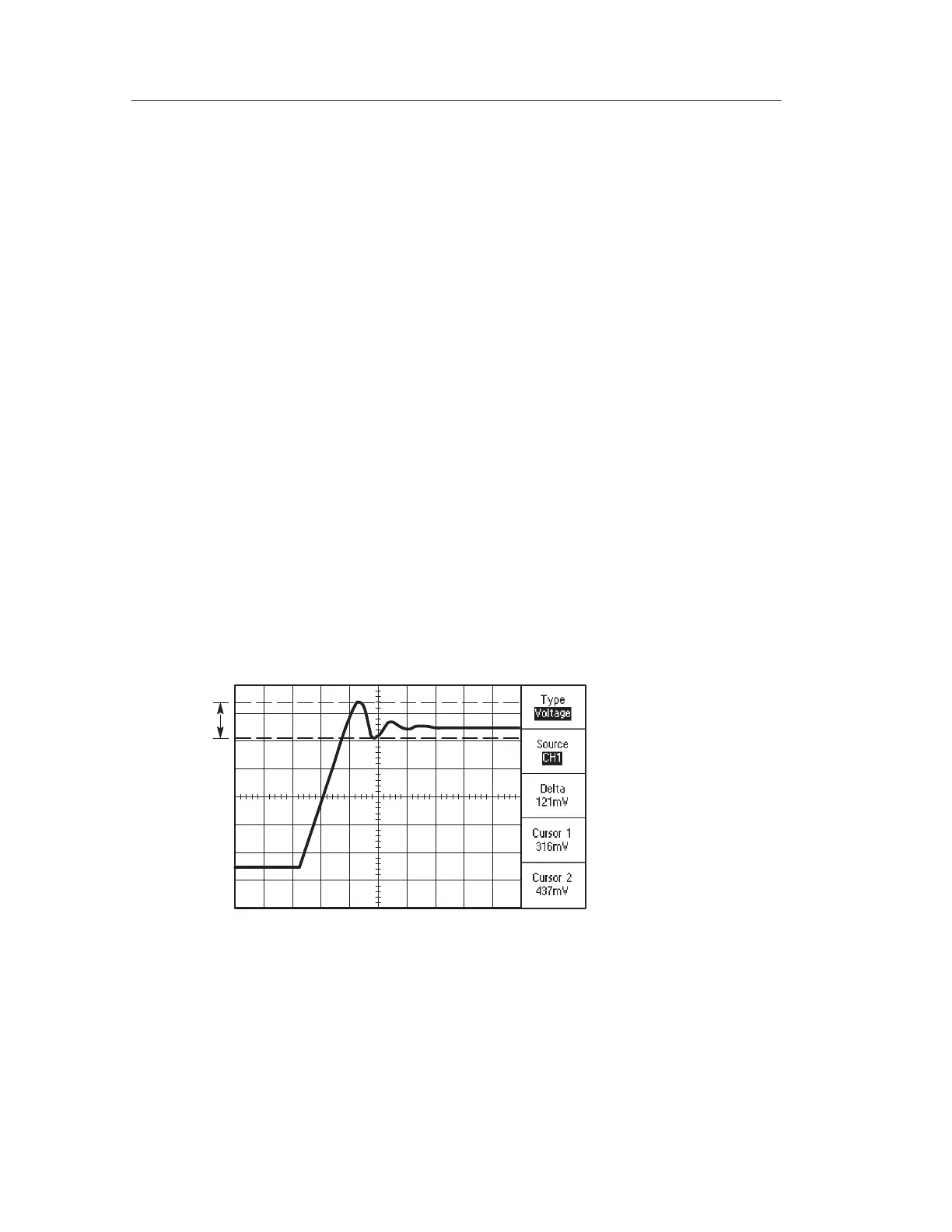

You can see the following measurements in the cursor menu:
H The delta voltage (peak-to-peak voltage of the ringing)
H The voltage at Cursor 1
H The voltage at Cursor 2
