Tektronix TDS 200-Series User Manual

Application Examples
TDS 200-Series Digital Oscilloscope User Manual
57

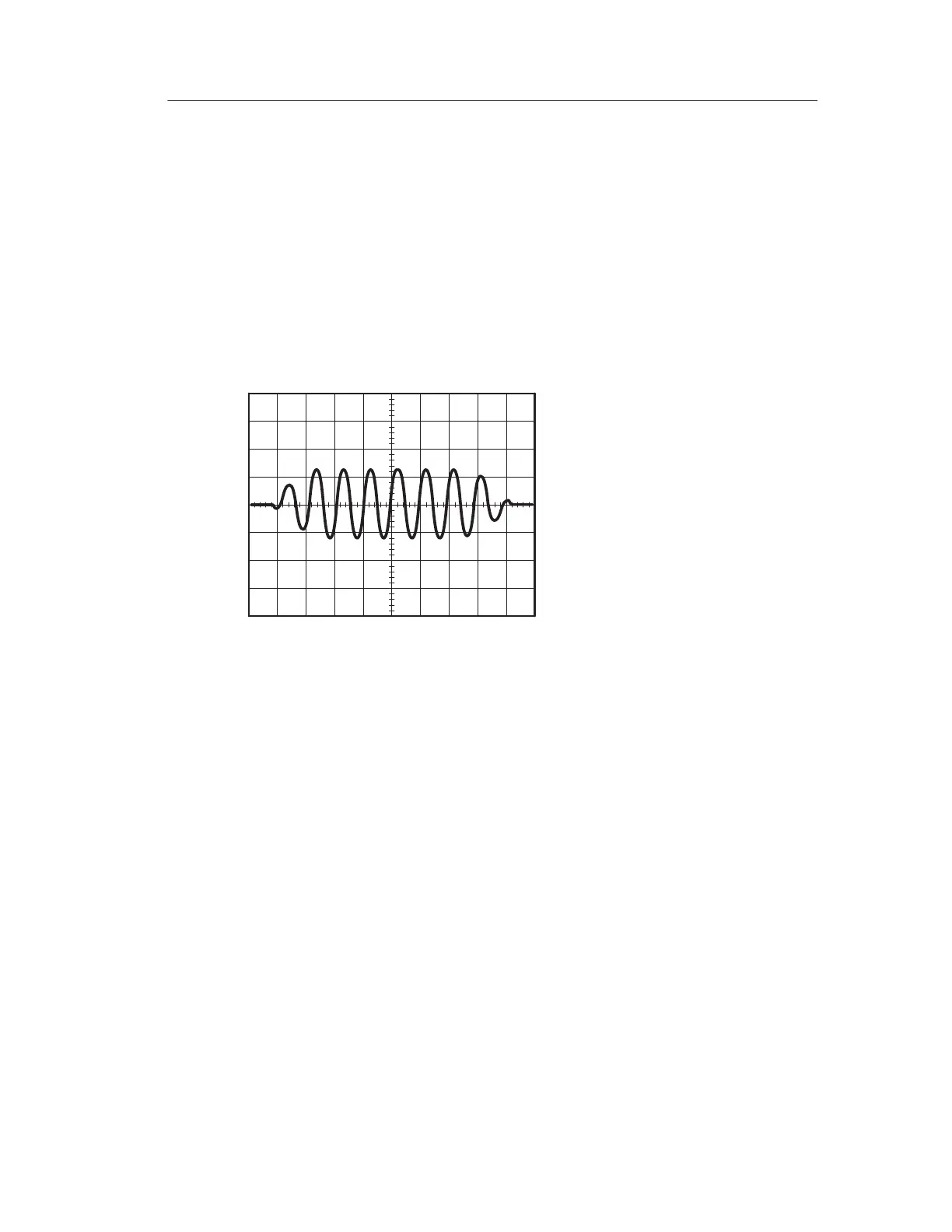

9. Push the Window button to see the expanded portion of the
waveform.
10. Adjust the SEC/DIV knob to optimize viewing the expanded
waveform.
To switch between the Main and Window views, push the Main
or Window menu box button in the HORIZONTAL MENU.
Triggering on Odd or Even Video Fields
Your oscilloscope will trigger on both odd and even video fields, and
make the data difficult to view because the line details are a half line
apart. To remedy this, you can set the holdoff period to lock on just
the odd or even field, which produces a stable display.
For example, the field rate for NTSC video is 60 Hz. For stable
triggering, you should set the holdoff period to at least the field rate
(16.7 ms), but not to more than twice the field rate (33 ms).
