Tektronix TDS 200-Series User Manual

Application Examples
TDS 200-Series Digital Oscilloscope User Manual
51

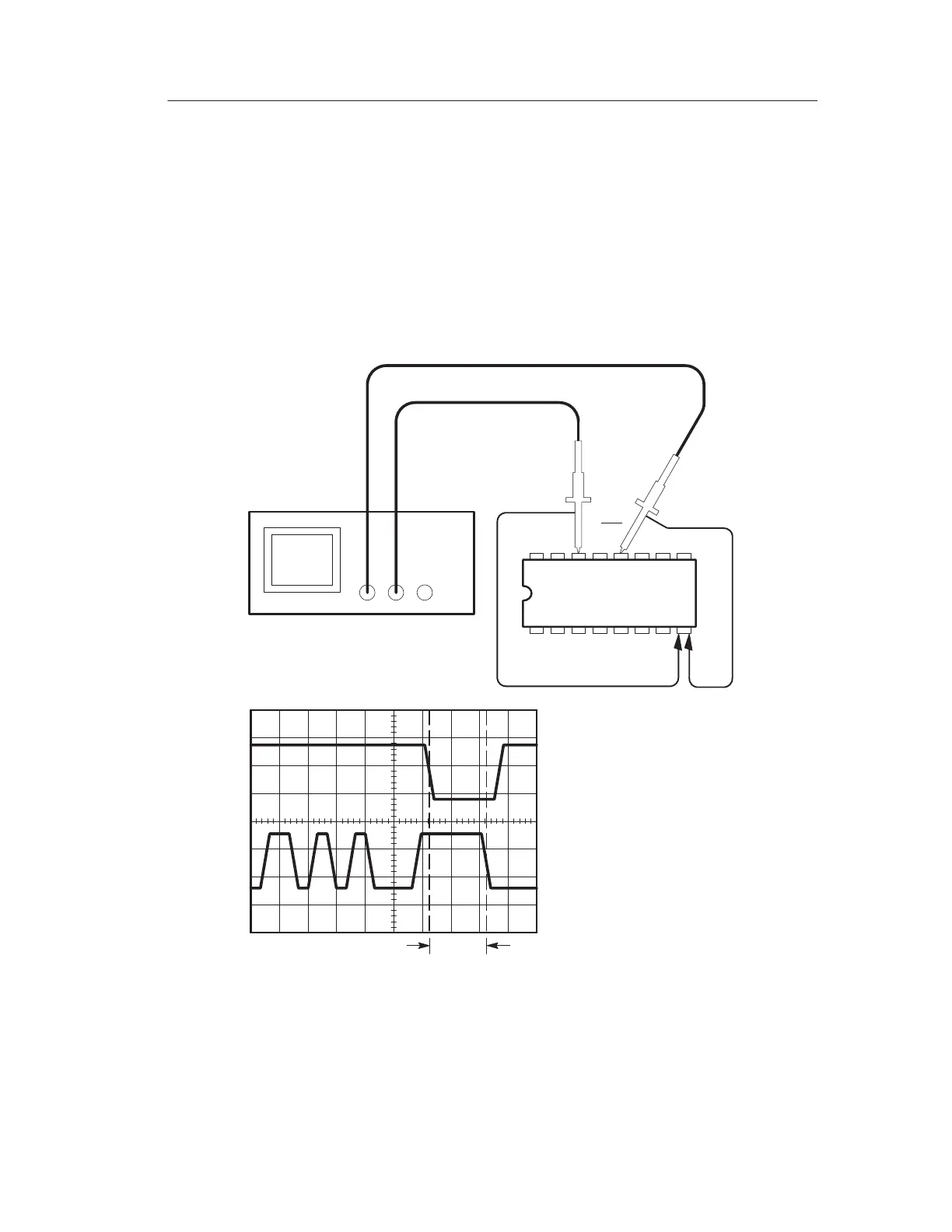

Measuring Propagation Delay
You suspect that the memory timing in a microprocessor circuit is
marginal. Set up the oscilloscope to measure the propagation delay
between the chip-select signal and the data output of the memory
device.
CH 1 CH 2
Data CS
