Tektronix TDS 200-Series User Manual

Application Examples
48
TDS 200-Series Digital Oscilloscope User Manual
Separating the Signal from Noise
Now you want to analyze the signal shape and ignore the noise. To
reduce random noise in the oscilloscope display, do these steps:
1. Push the ACQUIRE button to see the Acquire menu.
2. Push the Average menu box button.
3. Push the Averages menu box button to see the effects of varying
the number of running averages on the waveform display.

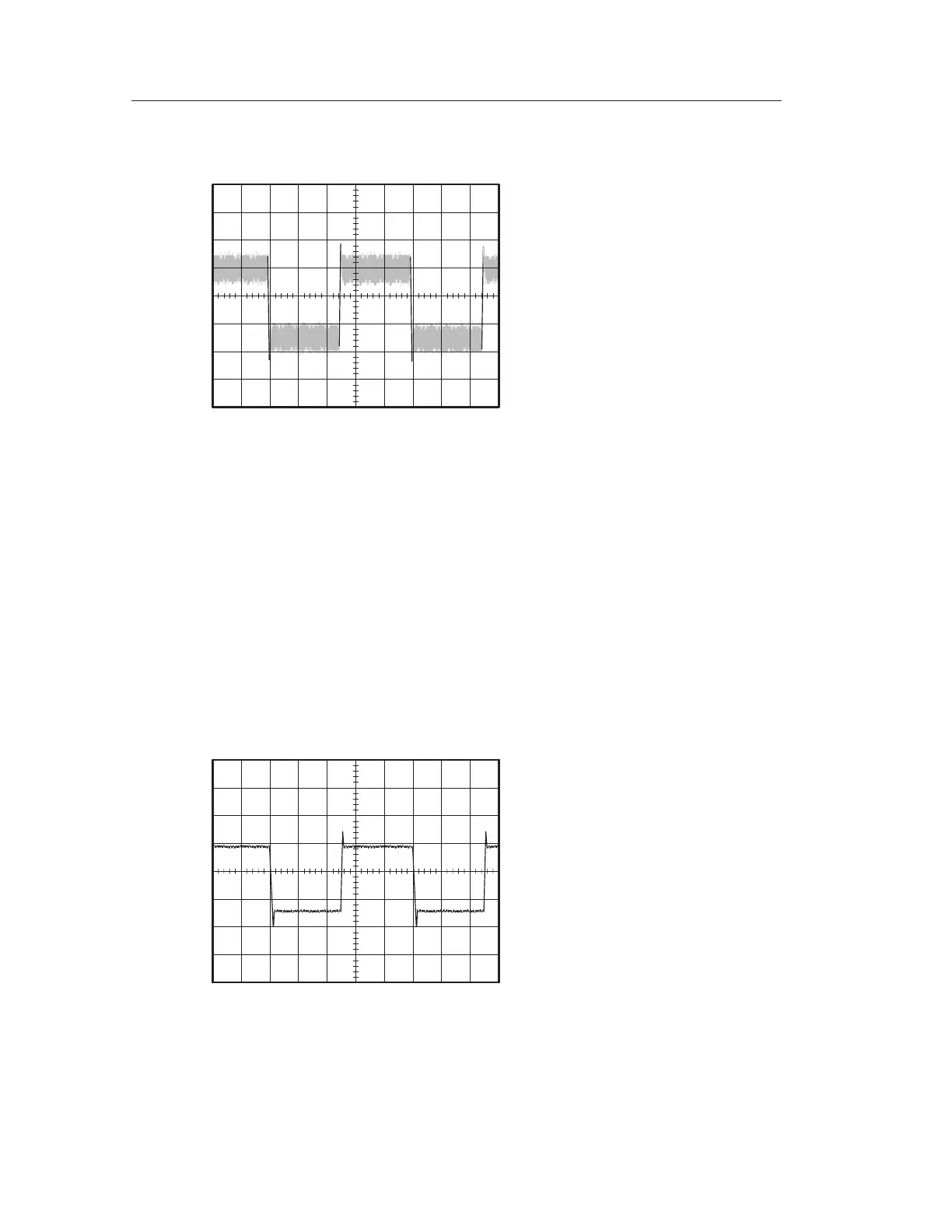

Averaging reduces random noise and makes it easier to see detail in a
signal. In the example below, a ring shows on the rising and falling
edges of the signal when the noise is removed.
