Tektronix TDS 200-Series User Manual

Application Examples
TDS 200-Series Digital Oscilloscope User Manual
63
Viewing Impedance Changes in a Network
You have designed a circuit that needs to operate over a wide
temperature range. You need to evaluate the change in impedance of
the circuit as the ambient temperature is changed.

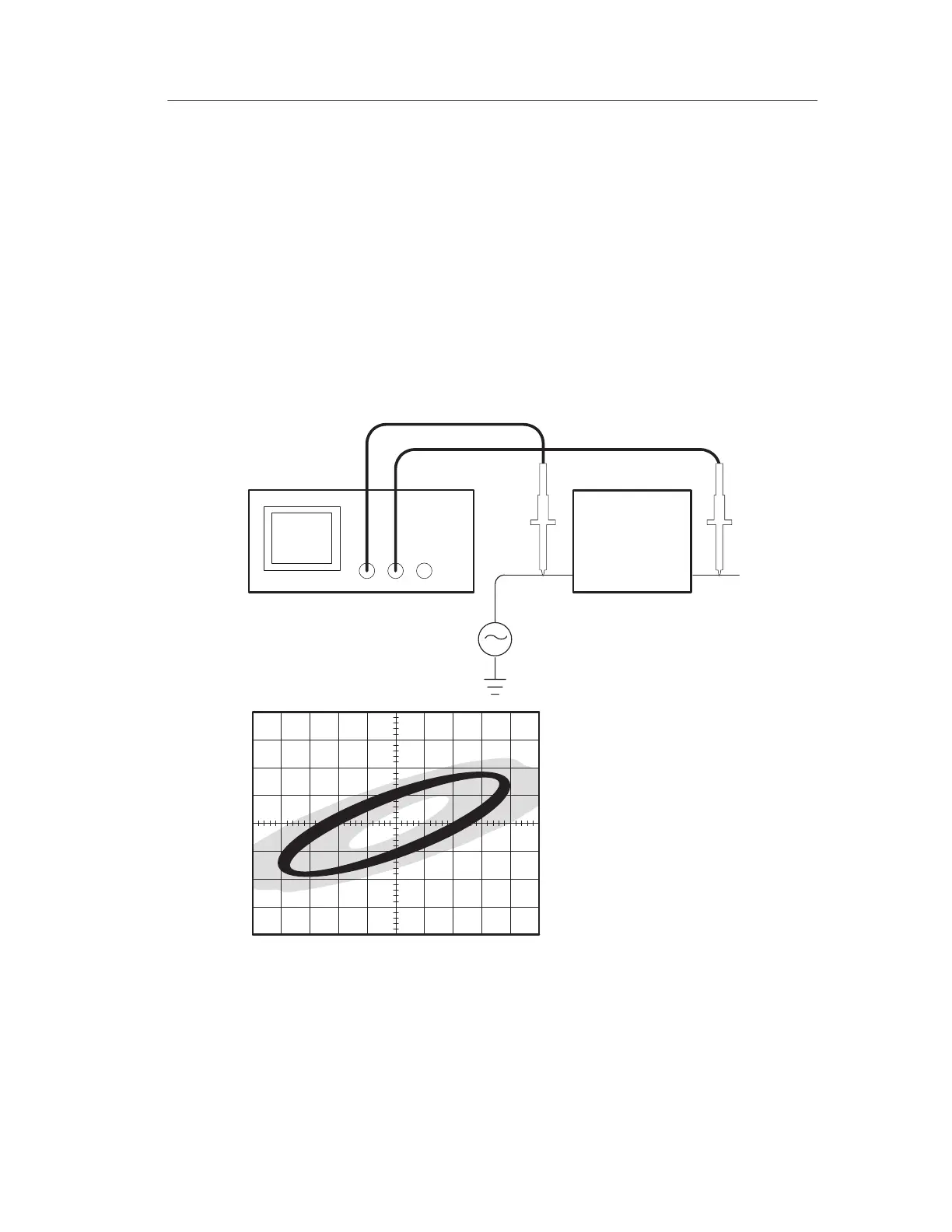

Connect the oscilloscope to monitor the input and output of the
circuit and capture the changes that occur as you vary the tempera-
ture.
CH 1 CH 2
Circuit
In Out
