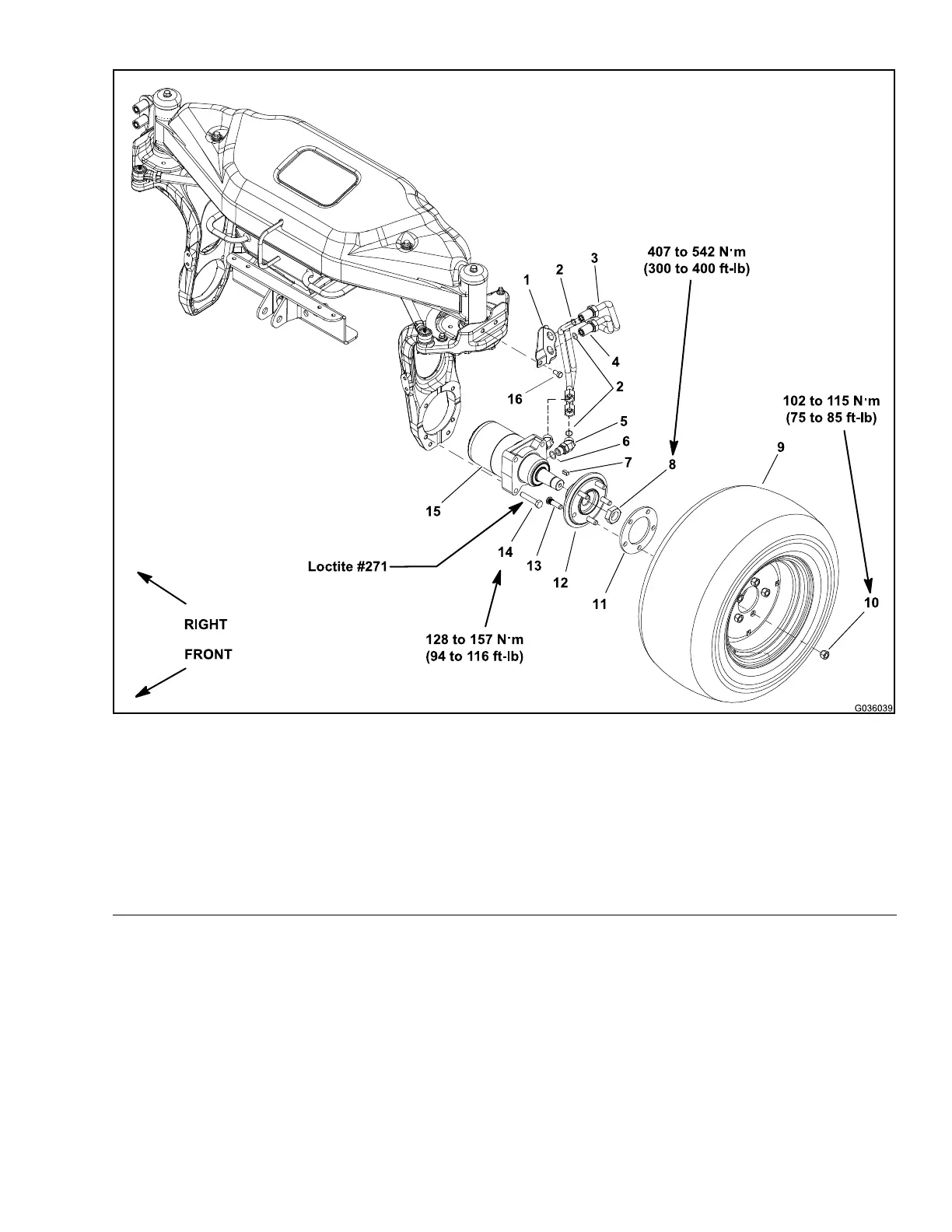

FrontWheelMotors
g036039
Figure66
1.Bulkheadbracket
7.Squarekey13.Wheelstud(5eachperwheel)
2.O-ring
8.Locknut
14.Bolt(4eachpermotor)
3.Hydraulictube9.Frontwheelassembly
15.Frontwheelmotor(left)
4.Hydraulictube
10.Wheel-lugnut(5eachperwheel)16.Bolt(4eachperbracket)
5.45°hydraulictting(2eachper
motor)
11.Wheelspacer
6.O-ring
12.Wheelhub
Groundsmaster360
Page4–83
HydraulicSystem:ServiceandRepairs
16225SLRevC
