Service
and
Repairs
Note:
For
engine
component
testing
information,
refer
to
the
Y
anmar
Engine
Service
Manual
or
T
roubleshooting
Manual.
PT
O
Solenoid
V
alve
Coil

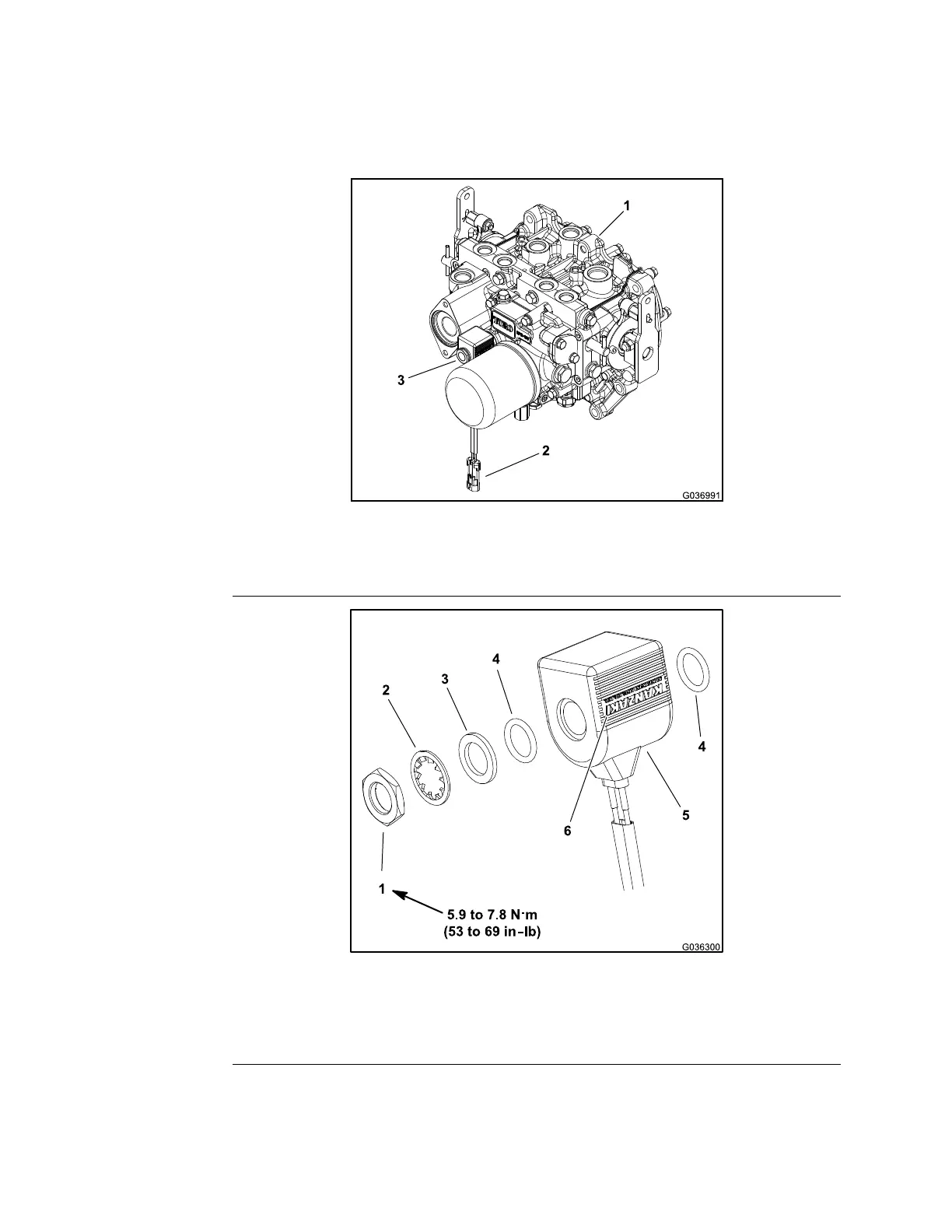

g036991
Figure
246
1.
T
ransmission
3.
Solenoid
valve
and
coil
2.
Coil
connector
g036300
Figure
247
1.
Hex
nut
4.
Seal
2.
Lock
washer
5.
Solenoid
valve
coil
3.
W
asher
6.
Letter
I
Y
ou
can
replace
the
PTO
solenoid
valve
coil
on
the
transmission
without
opening
the
hydraulic
system
(
Figure
246
).
Electrical
System:
Service
and
Repairs
Page
5–104
Groundsmaster
360
16225SL
Rev
C
339
341
