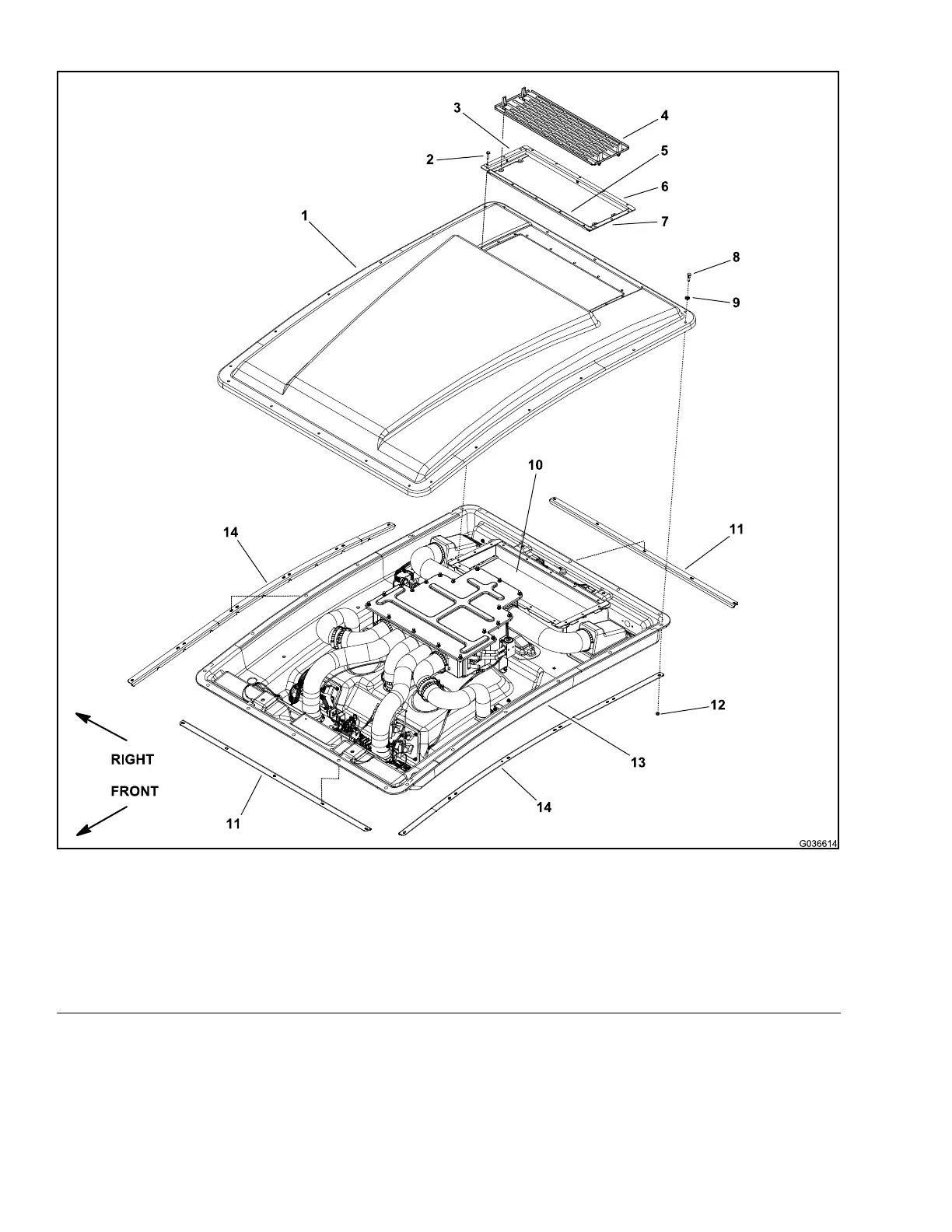

RoofAssembly

g036614

Figure321

1.Roofpanel

6.Rearcondenserseal

11.Front/rearcabstrap(2each)

2.Flange-headscrew(16each)7.Leftcondenserseal12.Flangenut(22each)

3.Rightcondenserseal

8.Shoulderscrew(22each)

13.Headlinerassembly

4.Condenserscreen9.Flatwasher(22each)14.Sidecabstrap(2each)

5.Frontcondenserseal

10.Condenserassembly

Getaccesstotheheatercoreandairconditioningcomponentsbyremoving

theroofpanel.

RemovingtheRoofAssembly

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe

engine,settheparkingbrake,andremovethekeyfromthekeyswitch.

OperatorCab:ServiceandRepairs

Page8–10

Groundsmaster360

16225SLRevC
