Toro Groundsmaster 360 Service Manual

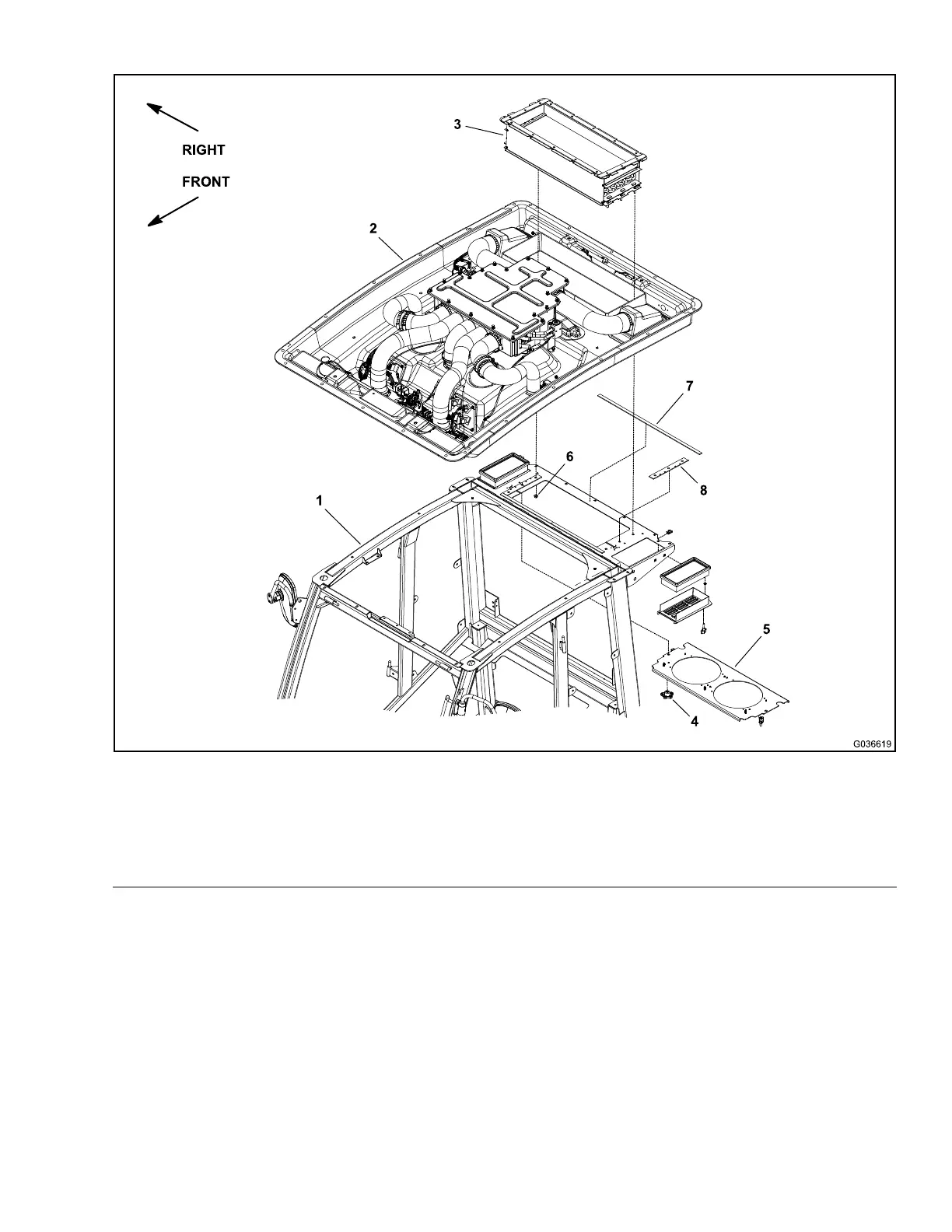

AirConditioningCondenserAssembly
g036619
Figure327
1.Cabframe4.Knob(2each)7.Stripseal(2each)
2.Cabheadlinerassembly5.Condenserfanassembly8.Edgeseal(2each)
3.Airconditioningcondenser
assembly
6.Flangenut(4each)
RemovingtheAirConditioningCondenserAssembly
1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe
engine,settheparkingbrake,andremovethekeyfromthekeyswitch.
2.Removetheroofpanelfromthetopofthecabtogetaccesstotheair
conditioningcondenserassembly;refertoRemovingtheRoofAssembly
(page8–10).
3.Removethecondenserfanassemblyfromthemachine;refertoRemoving
theAirConditioningCondenserFanAssembly(page8–15).
4.ReadtheGeneralPrecautionsforRemovingandInstallingtheAir
ConditioningSystemComponents(page8–4).
Groundsmaster360
Page8–17
OperatorCab:ServiceandRepairs
16225SLRevC

Toro Groundsmaster 360 Specifications

General

Cutting Width	72 inches
Fuel Type	Diesel
Number of Blades	3
Transmission	Hydrostatic
Turning Radius	0 inches (0 cm) - Zero Turn
Drive System	4WD
Cutting Height	1.5 - 5 inches
