Toro Groundsmaster 360 Service Manual

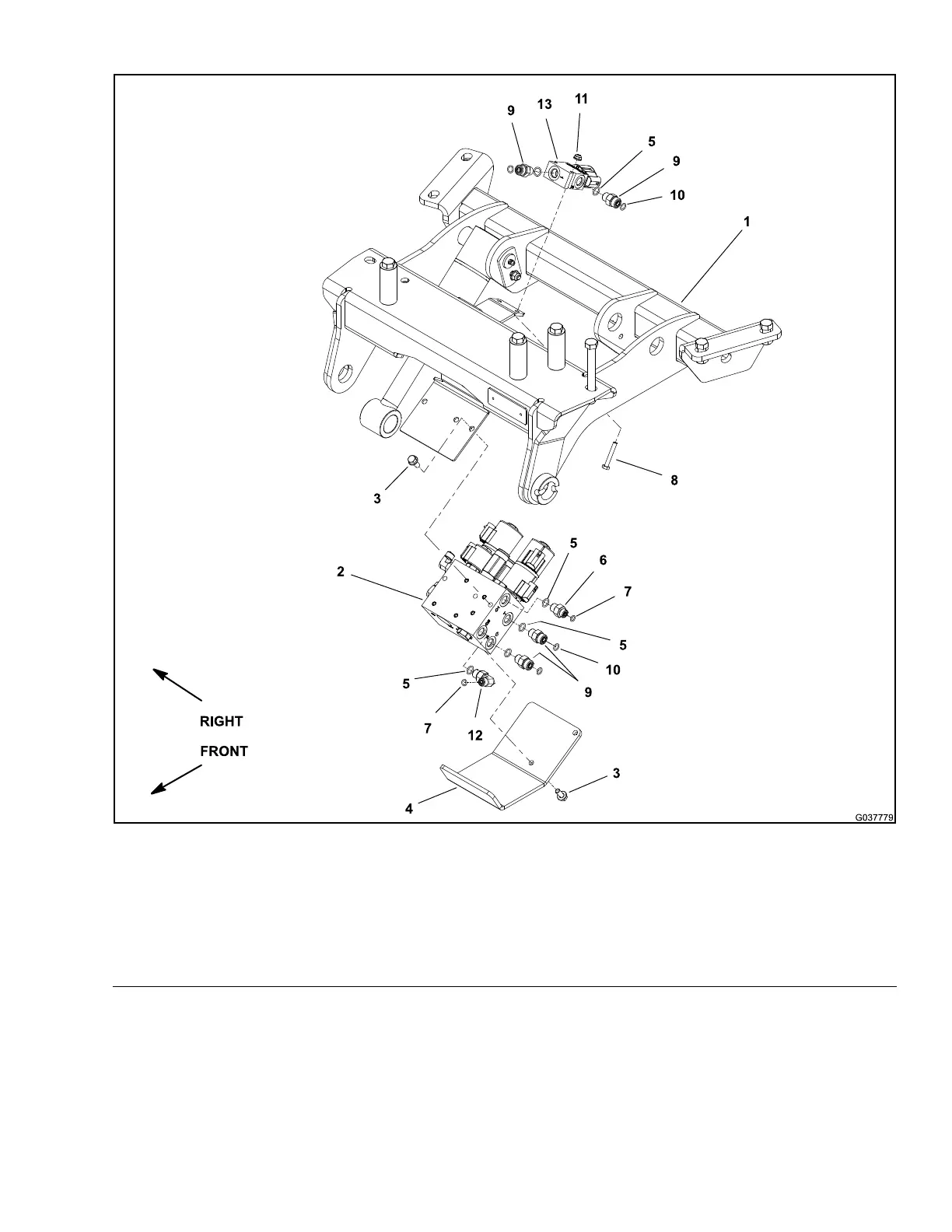

QuickAttachSystem(QAS)ControlManifolds(OptionalKit)
g037779
Figure156
1.QASframeassembly6.Straighttting11.Flangenut(2each)
2.Anglecontrolmanifold7.O-ring12.90°hydraulictting
3.Flange-headscrew(5each)8.Bolt(2each)
13.Poppetvalvecontrolmanifold
4.Guardplate9.Straighthydraulictting
5.O-ring10.O-ring
RemovingtheManifold
1.RemovetheattachmentfromtheQASframe.
2.ParkthemachineonalevelsurfaceandensurethattheQASframeisfully
lowered.Shutofftheengine,settheparkingbrake,andremovethekey
fromthekeyswitch.
Groundsmaster360
Page4–171
HydraulicSystem:ServiceandRepairs
16225SLRevC

Toro Groundsmaster 360 Specifications

General

Cutting Width	72 inches
Fuel Type	Diesel
Number of Blades	3
Transmission	Hydrostatic
Turning Radius	0 inches (0 cm) - Zero Turn
Drive System	4WD
Cutting Height	1.5 - 5 inches
