HeatingandAirConditioningComponents(continued)

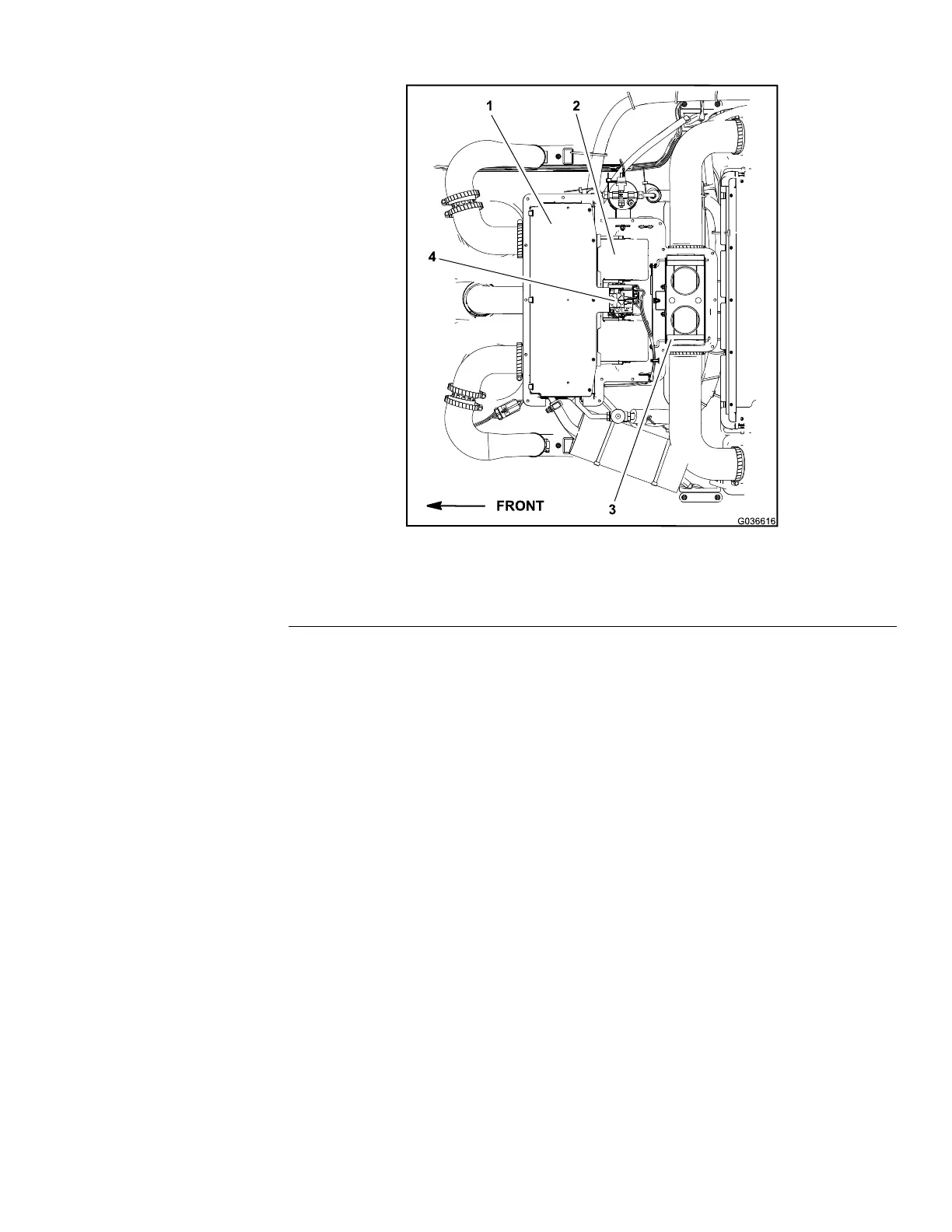

g036616

Figure323

1.Evaporator/heatercores

3.Airdiverterassembly

2.Blowerfan4.Airconditioningfreezeswitch

Getaccesstothecabheatingandairconditioningcomponentsbyremovingthe

cabroof;refertoRemovingtheRoofAssembly(page8–10).Afteryouremove

thecabroof,refertoFigure322andFigure323toidentifythecomponentsused

forheatingandcoolingtheoperatorcab.

Note:Figure323showstheheatandairconditioningmixingboxassembly

withthemixingboxcoverremoved.

Note:Thecapacityoftheairconditioningsystemis1.55kg(3.43lb)ofR134a

refrigerant.

Groundsmaster360

Page8–13

OperatorCab:ServiceandRepairs

16225SLRevC
