Toro Groundsmaster 360 Service Manual

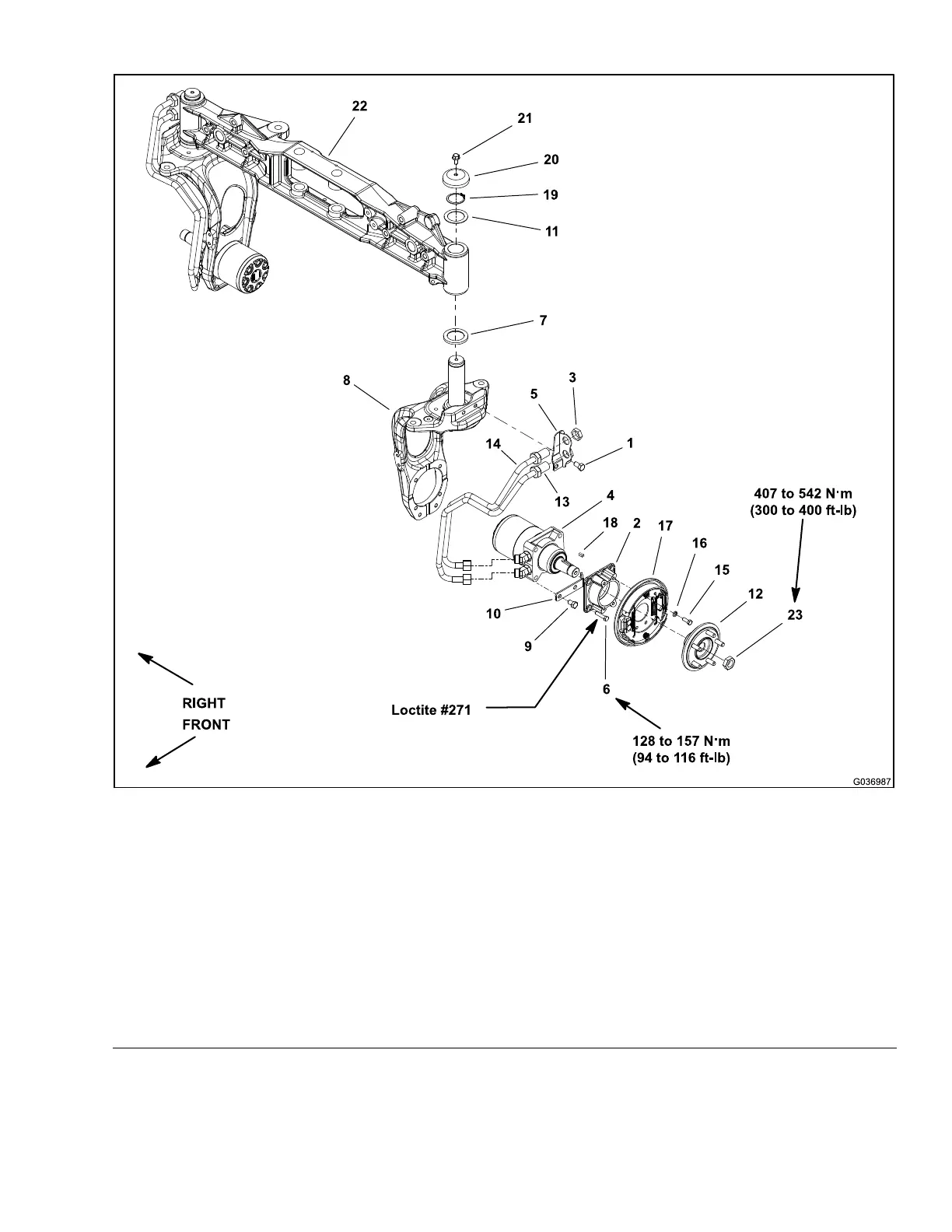

RearSteeringFork
g036987
Figure268
1.Bolt(2eachperbulkhead)9.Bolt(2eachperbracket)
17.Brakeassembly
2.Brakeadapter
10.Springbracket18.Squarekey
3.Bulkheadnut(1perhydraulictube)11.Upperthrustwasher1.6mm(0.062
inchthick)
19.Retainingring
4.Wheelmotor12.Wheelhub
20.Spindlecap
5.Bulkheadbracket13.Lowerhydraulictube21.Flange-headscrew
6.Bolt(4eachpermotor)
14.Upperhydraulictube22.Rearaxle
7.Lowerthrustwasher6.3mm(0.250
inchthick)
15.Bolt(4eachperbrake)
23.Locknut
8.Rearsteeringforkassembly16.Lockwasher(4eachperbrake)
Note:Therearsteeringforkassemblyincludesthebrakeassemblyandwheel
motor.
Groundsmaster360
Page6–23
Chassis:ServiceandRepairs
16225SLRevC

Toro Groundsmaster 360 Specifications

General

Cutting Width	72 inches
Fuel Type	Diesel
Number of Blades	3
Transmission	Hydrostatic
Turning Radius	0 inches (0 cm) - Zero Turn
Drive System	4WD
Cutting Height	1.5 - 5 inches
