HeaterandAirConditioningEvaporatorCores

g036621

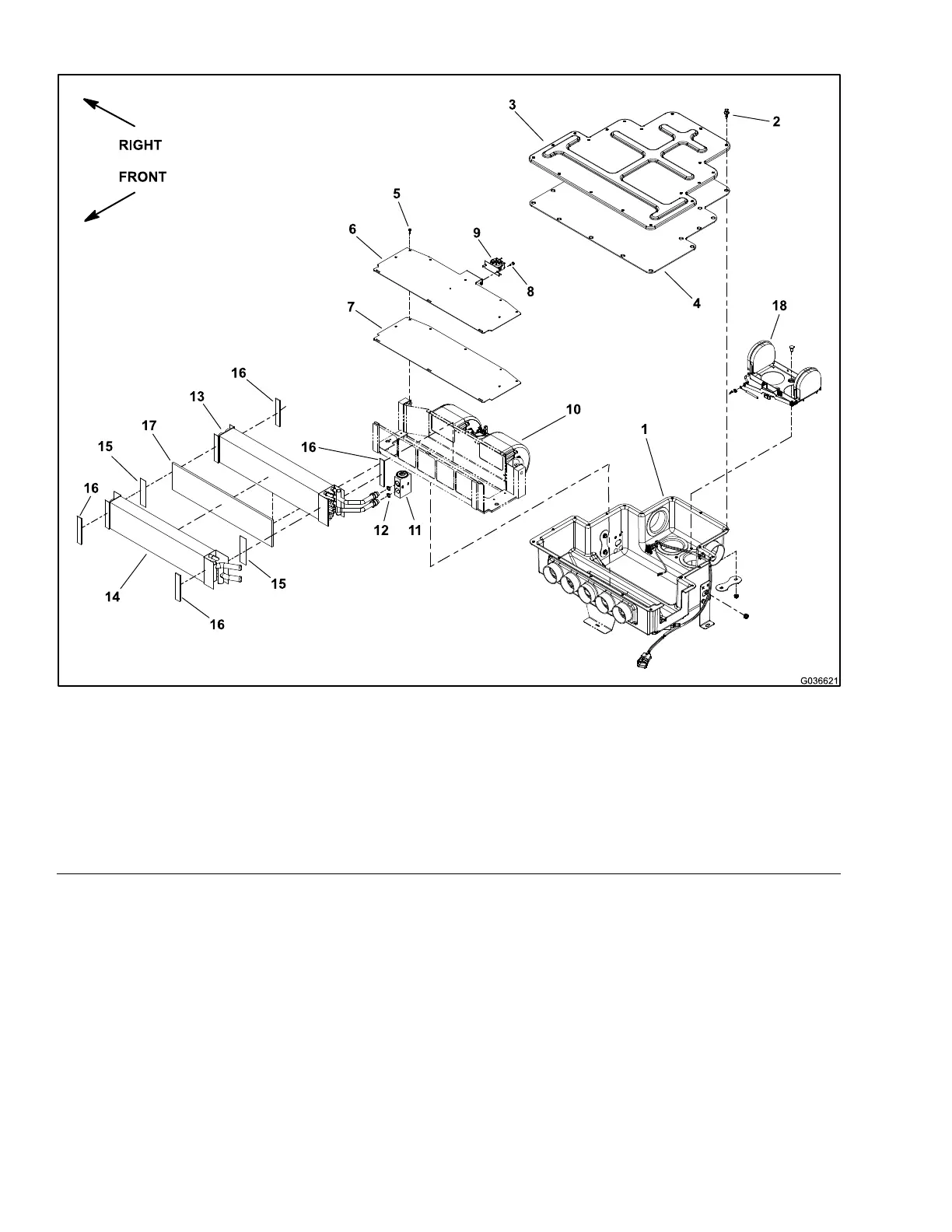

Figure331

1.Mixingbox

7.Covergasket

13.Airconditioningevaporatorcore

2.Rivet(19each)8.Screw(2each)

14.Heatercore

3.Mixingboxcover9.Freezeswitch

15.Doublesidedtape(2each)

4.Coverinsulation10.Mountbracket(shownwithfan)16.Gasket(4each)

5.Screw(5each)

11.Expansionvalve

17.Condensationcatchfoam

6.Mountbracketcover

12.O-ring(2each)

18.Airdiverterassembly

Note:Theheaterandevaporatorcorescanberemovedandinstalledwiththe

mixingbox(item1inFigure331)attachedtothecabheadliner.

RemovingtheHeaterandAirConditioningEvaporatorCores

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe

engine,settheparkingbrake,andremovethekeyfromthekeyswitch.

2.Removetheroofpanelfromthetopofthecabtogetaccesstotheheater

andairconditioningevaporatorcores;refertoRemovingtheRoofAssembly

(page8–10).

3.ReadtheGeneralPrecautionsforRemovingandInstallingtheAir

ConditioningSystemComponents(page8–4).

OperatorCab:ServiceandRepairs

Page8–24

Groundsmaster360

16225SLRevC
