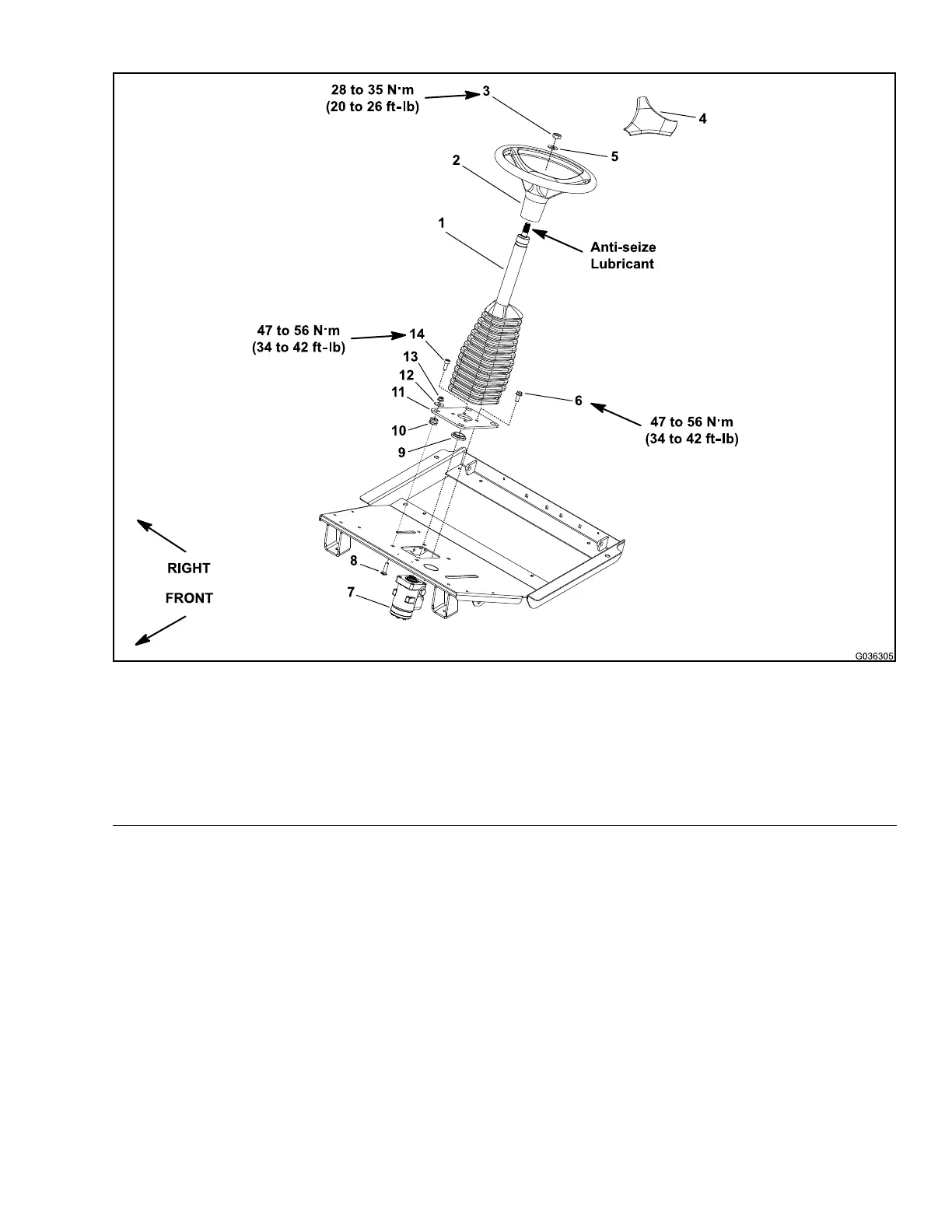

SteeringColumn

g036305

Figure282

1.Steeringcolumnassembly6.Flange-headscrew(3each)11.Steeringplate

2.Steeringwheel7.Steeringcontrolvalve12.Washer(4each)

3.Locknut

8.Carriagescrew(4each)13.Flangenut(4each)

4.Steeringwheelcover

9.Alignmentbushing

14.Socket-headscrew

5.Flatwasher

10.Mount(4each)

RemovingtheSteeringColumn

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe

engine,andremovethekeyfromthekeyswitch.

2.Removethesteeringwheelcover(item4inFigure282)fromthesteering

wheelbycarefullypryingupononeofthecoverspokes.

3.Removethelocknut(item3inFigure282)andatwasherthatsecurethe

steeringwheeltothesteeringcolumn.

4.Useasuitablepullertoremovethesteeringwheel(item2inFigure282)

fromthesteeringcolumnassembly.

5.Slidetherubberbellowsuptothesteeringcolumntogetaccesstothe

fastenersthatsecurethesteeringcolumntothemachine.

6.Supportthesteeringcontrolvalve(item7inFigure282)topreventitfrom

shiftingduringthesteeringcolumnremoval.

Groundsmaster360

Page6–41

Chassis:ServiceandRepairs

16225SLRevC
