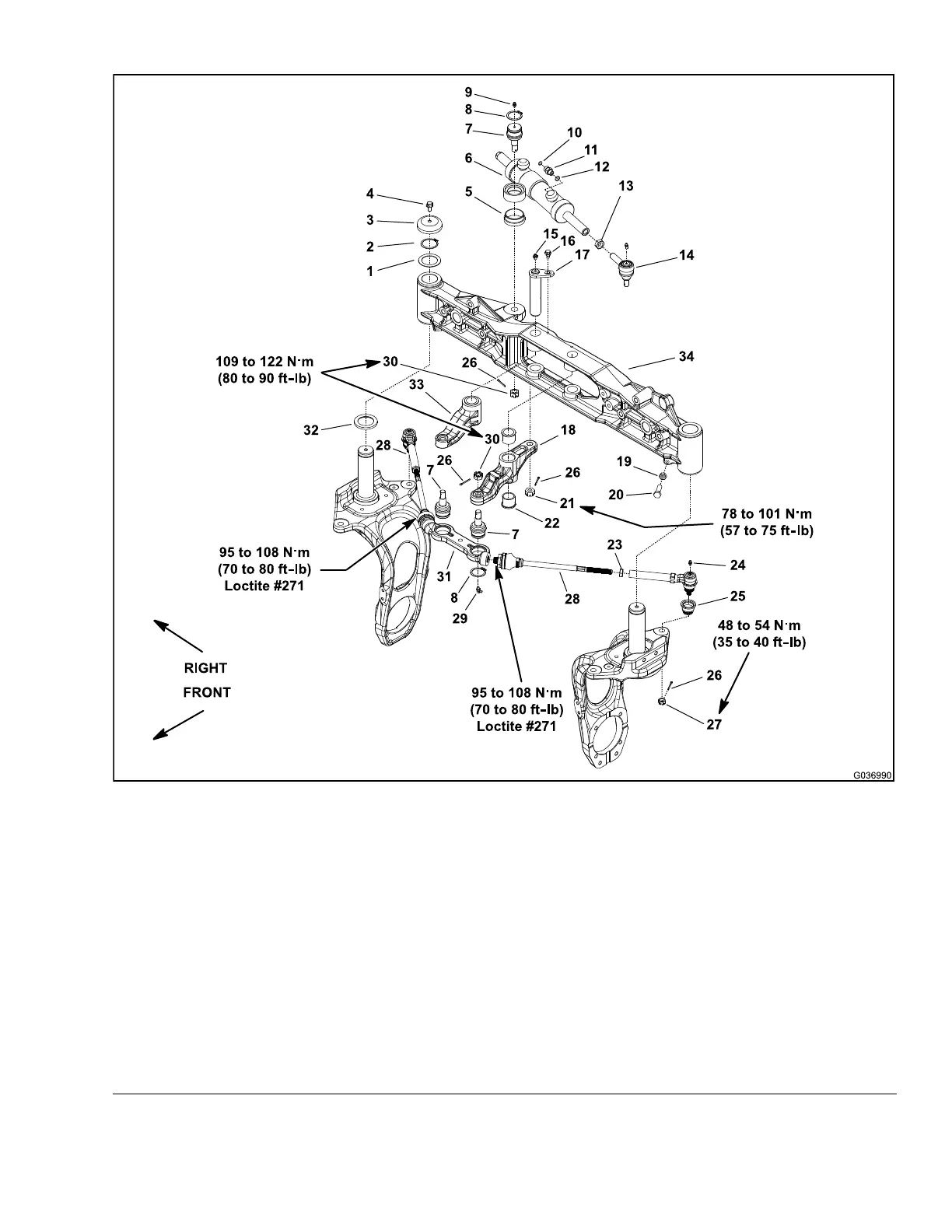

RearSteeringAssembly

g036990

Figure277

1.Thrustwasher1.3mm

(0.062inch)(2each)

10.O-ring

19.Jamnut

28.Reartierod(2each)

2.Retainingring(2each)11.Straighthydraulictting20.Steeringstopbolt

(2each)

29.Greasetting(2each)

3.Spindlecap(2each)12.O-ring

21.Slottedhexnut30.Slottedhexnut(3each)

4.Flange-headscrew

(2each)

13.Jamnut22.Flangebushing

(2eachperarm)

31.Centerlink

5.Cylinderspacer

14.Righttierodend

assembly

23.Jamnut32.Thrustwasher6.3mm

(0.25inch)(2each)

6.Steeringcylinder15.Greasetting(2each)24.Greasetting

33.Rearrightarmassembly

7.Balljoint(3each)16.Shoulderbolt(2each)

25.Dustboot34.Rearaxleassembly

8.Retainingring(3each)17.Pinassembly(2each)26.Cotterpin(6each)

9.Greasetting18.Leftreararmassembly27.Slottedhexnut(2each)

Groundsmaster360

Page6–35

Chassis:ServiceandRepairs

16225SLRevC
