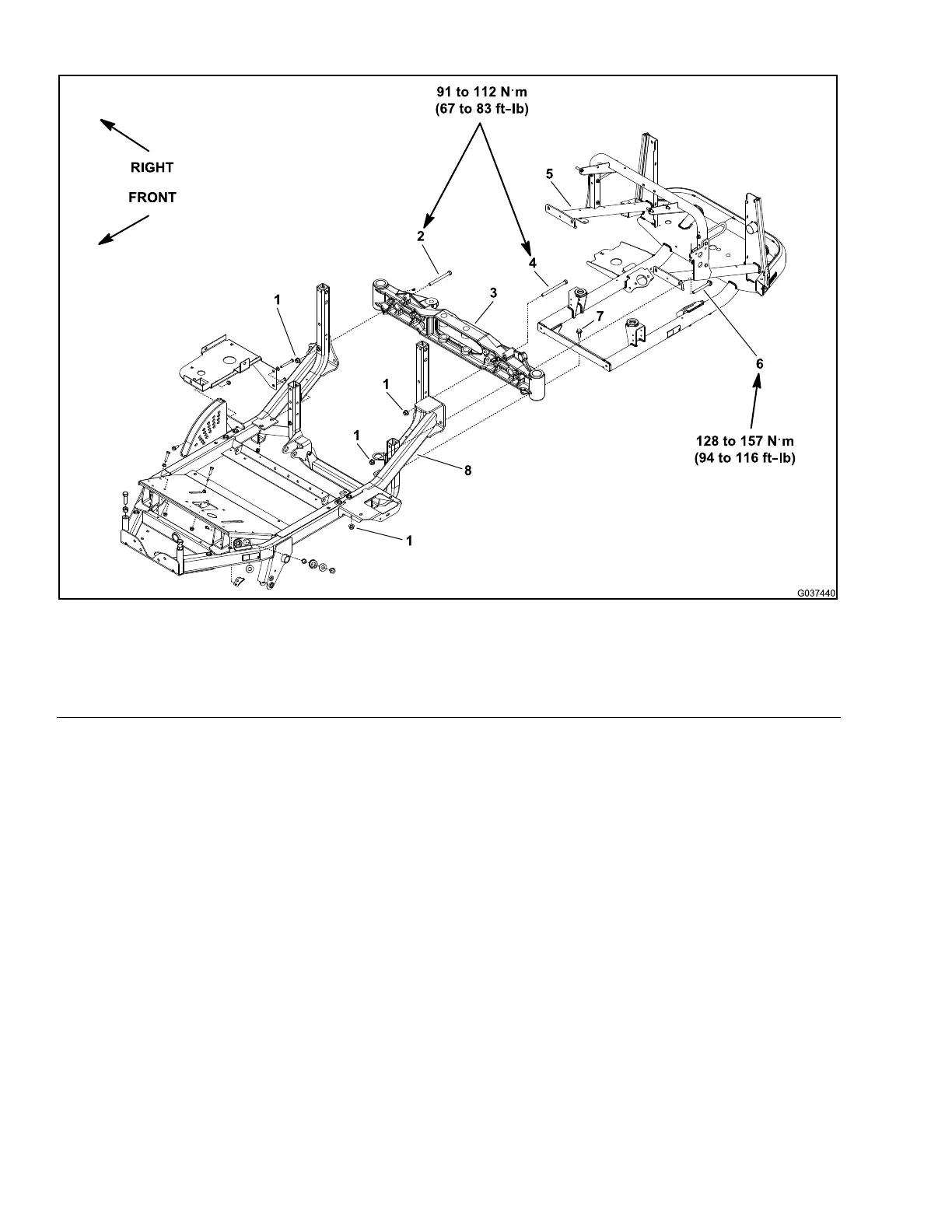

FrameAssembly
g037440
Figure281
1.Flangenut(9each)
4.Bolt
7.Flange-headscrew(3each)
2.Bolt
5.Rearframe8.Frontframe
3.Rearaxle
6.Flange-headscrew(4each)
TheframeassemblyoftheGroundsmaster360machineisillustratedinFigure
281.Ifthefastenersusedtosecurethefrontframe,rearaxle,orrearframe
areloosenedorremoved;refertoFigure281forthefastenertighteningtorque
recommendations.
Chassis:ServiceandRepairs
Page6–40
Groundsmaster360
16225SLRevC
