ControlConsole
g037452

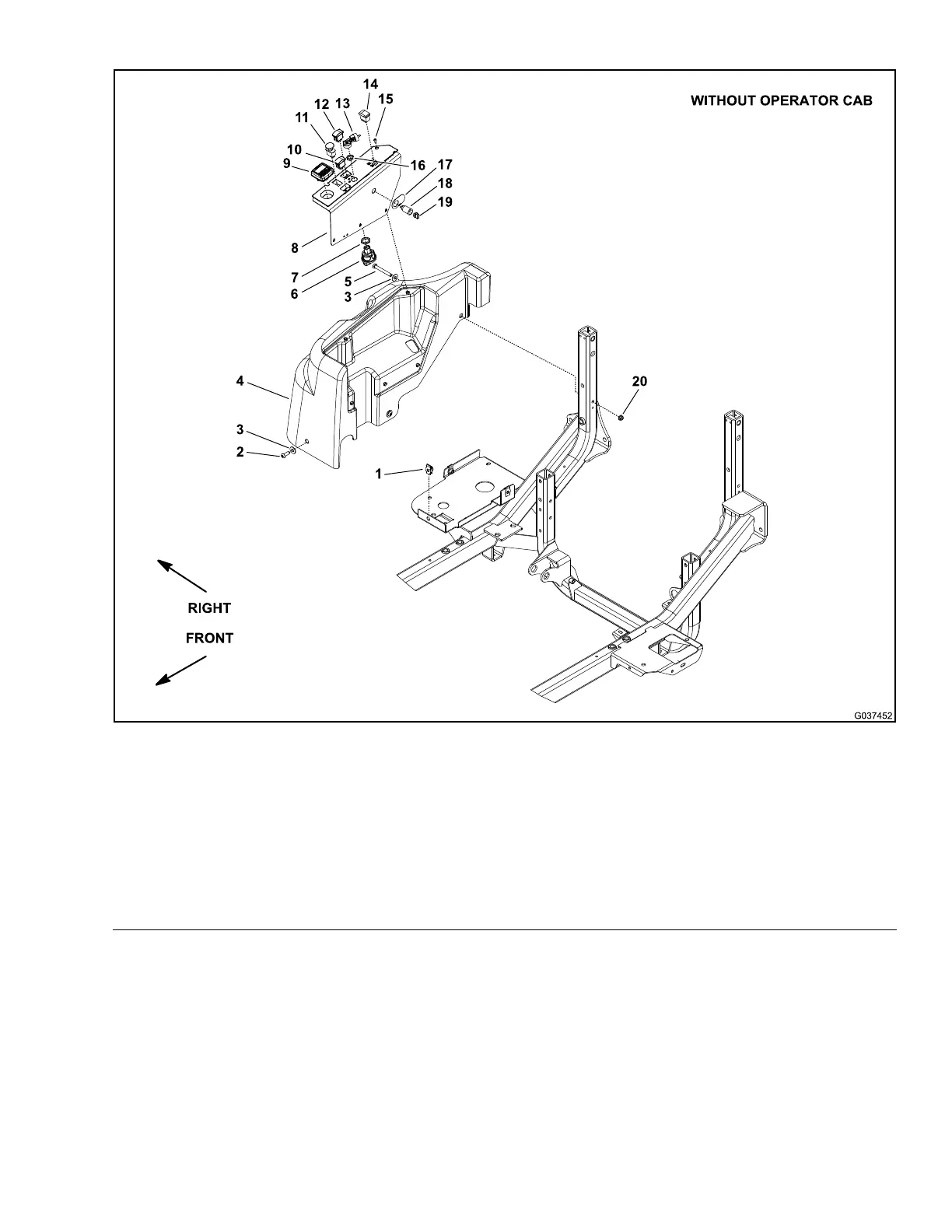

Figure293
1.Tinnermannut(3each)8.Controlpanel15.Button-headscrew(5each)
2.Button-headscrew(3each)9.InfoCenterdisplay
16.Facenut
3.Flatwasher(4each)10.Deckliftswitch
17.Powerpointdecal
4.Hydraulictankcover
11.PTOswitch
18.Powerpoint
5.Screw
12.Enginespeedswitch
19.Cap
6.Keyswitch13.Keyset20.Flangenut
7.Hexnut14.4–wheelsteeringswitch
Groundsmaster360
Page6–53
Chassis:ServiceandRepairs
16225SLRevC
