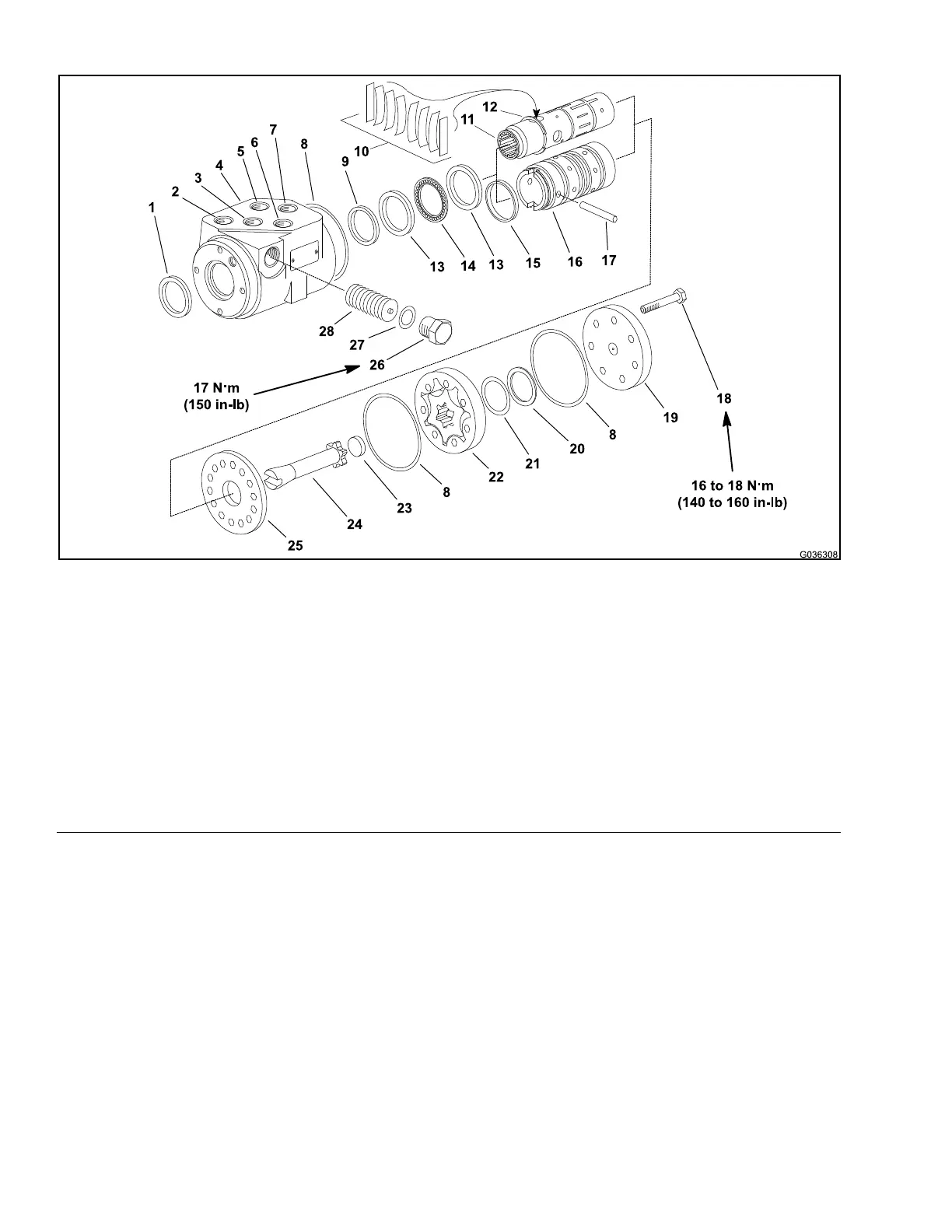

ServicingtheSteeringControlValve

g036308

Figure144

1.Dustseal

11.Spool21.O-ring

2.Tport(returntotank)12.Springretainingring

22.Geroter

3.Lport13.Bearingrace

23.Spacer

4.Steeringvalvehousing

14.Thrustbearing

24.Geroterdrive

5.Eport(owbeyond)

15.Ring25.Wearplate

6.Pport(frompump)16.Sleeve

26.Plug

7.Rport17.Pin

27.O-ring

8.O-ring18.Bolt(7each)28.Reliefvalve

9.Quadseal

19.Endcap

10.Centeringsprings/spacers20.Sealring

Note:Forthesteeringcontrolvalverepairprocedures;refertotheEatonParts

andRepairInformation:5SeriesSteeringControlUnits.

HydraulicSystem:ServiceandRepairs

Page4–148

Groundsmaster360

16225SLRevC
