14.5.2 Aggregate Flow Meter List
The Aggregate Flow Meter List screen is displayed by pressing the icon on the Sensor
Selection screen.

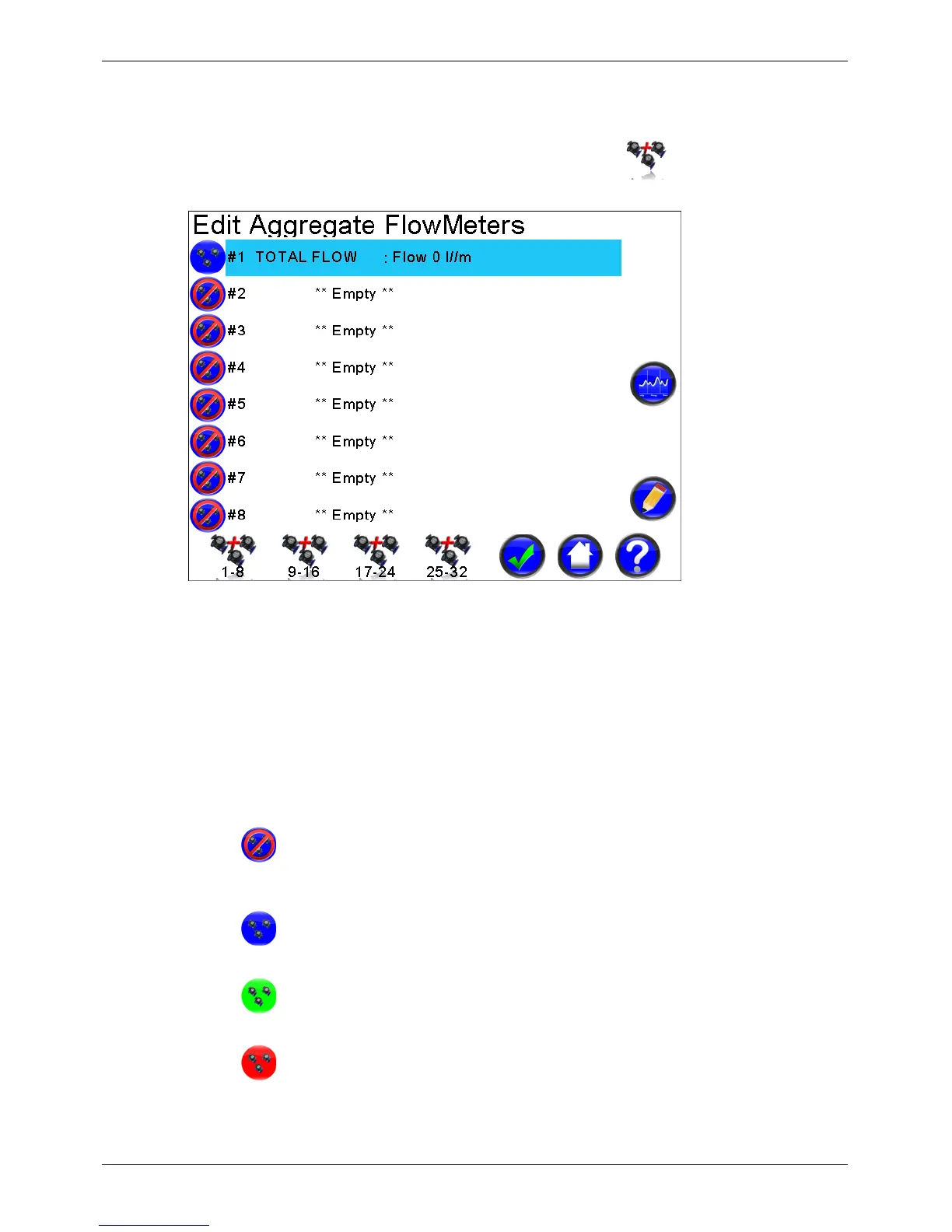

Figure 68 - Aggregate Flow Meter List
Aggregate Flow Meter Names and Status
Each line in this list displays the name of the Aggregate (if assigned) and the current status of the
Aggregate. Clicking on a name will select the Aggregate, changing the background of the selected
Aggregate to light blue. Selecting an Aggregate and then clicking Edit will display the Aggregate Edit
screen.
Aggregate Flow Meter Status Icons
The status of each Aggregate is shown graphically using different icons.
Indicates an Aggregate Flow Meter is empty or is disabled. An empty Aggregate
Flow Meter displays "** Empty **", a disabled Aggregate Flow Meter displays the
name of the Aggregate Flow Meter.
Indicates an Aggregate Flow Meter is idle. An Aggregate Flow Meter is idle when
the input conditions have not been met.
Indicates an Aggregate Flow Meter is active. An Aggregate Flow Meter is active
when flow is detected.
Indicates an Aggregate Flow Meter is triggered. An Aggregate Flow Meter is
triggered when the flow is greater than the trigger level set in the Aggregate Flow
Meter Edit screen.
