Micro-Master Touch User Guide
18
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
Controller Serial Number
The Controller Serial Number is a unique factory assigned number and is not configurable.
5.4
Unit Configuration
The Unit Configuration Setup screen is displayed by pressing the icon on the Setup
Selection screen.

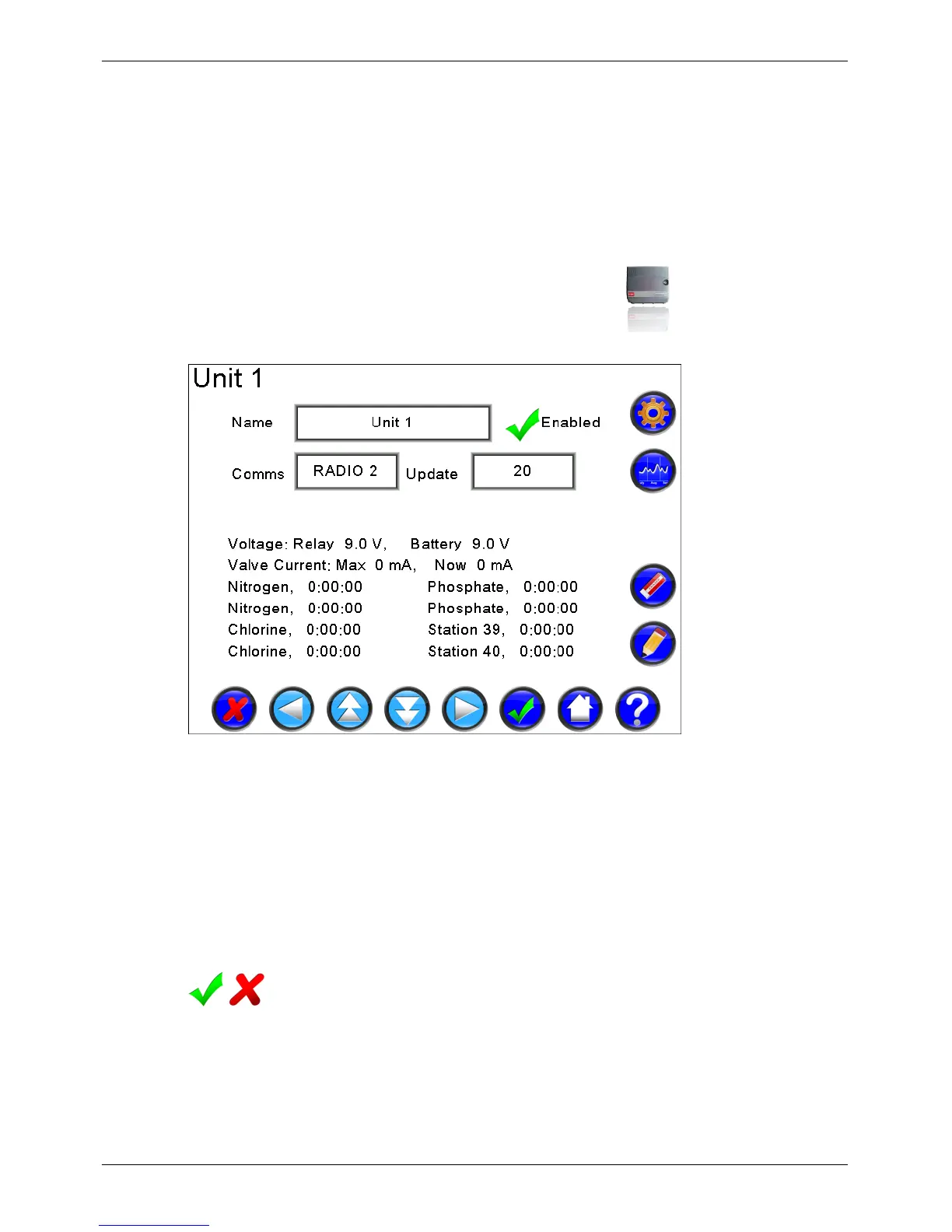

Figure 10 - Controller Unit Configuration
In the example screen shown in Figure 10, Remote Unit 1 has the default name of Unit 1, and is
connected to the network using Radio Module number 2. The status for the unit is updated every 20
seconds, and the current runtime status is shown. The status shown is dependant on the type of
modules in the remote unit. For analogue sensors, the current value of the sensor is shown, and for
digital modules, the open/closed status is shown.
Unit Name
Each Unit can be assigned a name. Names are limited to 20 characters. Selecting the name button
and clicking Edit will display the Text Edit screen.
Unit Enabled
Remote Units can be enabled or disabled. Disabling an Remote Unit prevents stations on that
Remote Unit from being operated for example, to allow maintenance to occur. Clicking on the tick
(cross) will change the Unit to disabled (enabled).
