Micro-Master Touch User Guide
46
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
9.2.3 Program Edit - Grouping
The Program Edit screen is displayed by pressing the icon on the Programs List screen.

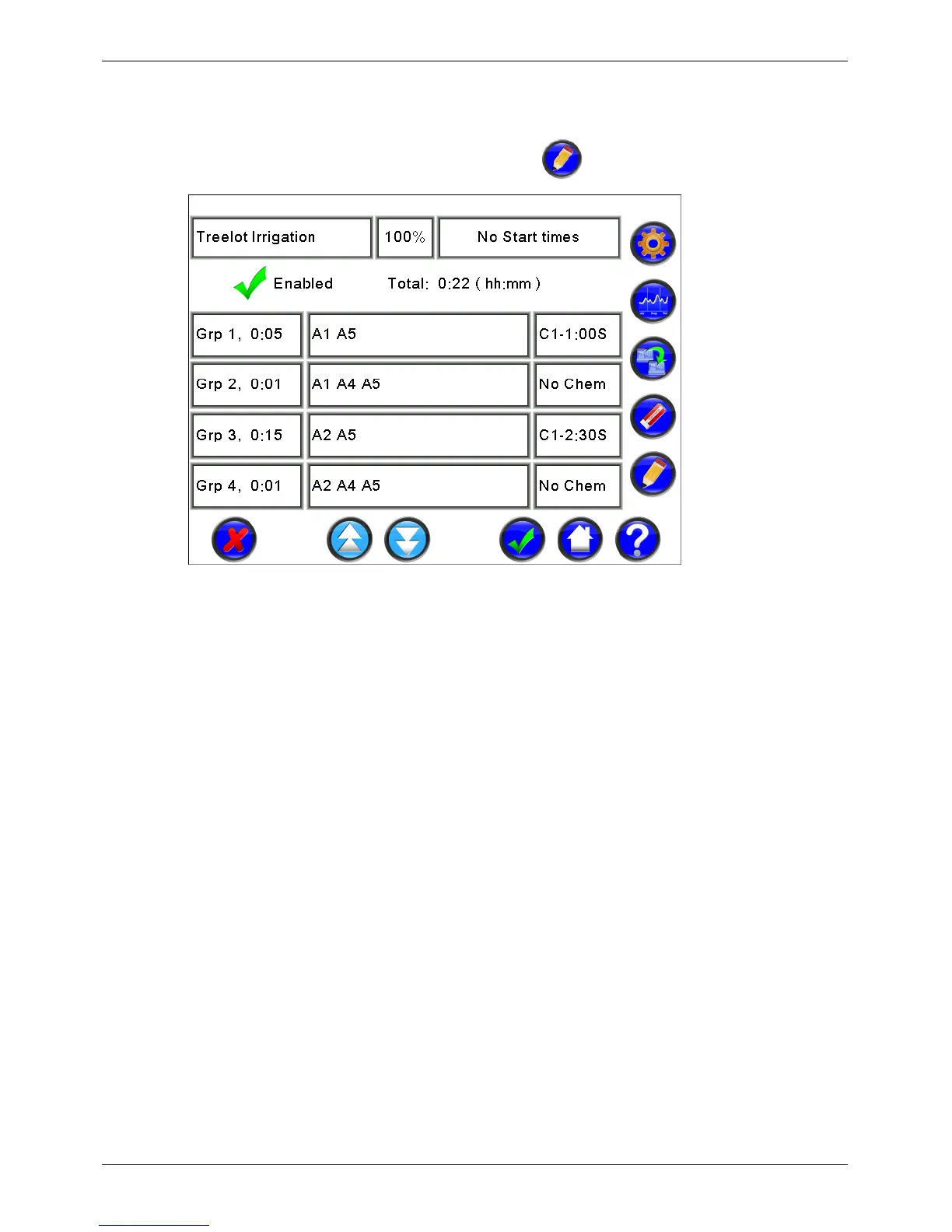

Figure 26 - Program Grouping Edit
In the example screen shown in Figure 26, there are four groups. Each group shows the valves
allocated to that group. In this situation, A1 (Master Unit, Station 1) and A5 (Master Unit, Station 5)
will operate for 5 minutes, before a 1 minute line flushing cycle is performed. Groups 3 and 4 repeat
the shift on a second treelot, again adding a 1 minute line flushing cycle.
Program Name
Each Program can be assigned a name. Names are limited to 20 characters. Selecting the name
button and clicking Edit will display the Text Edit screen.
Program Water budget
The Water Budget for this Grouping Program. Selecting the button and clicking Edit will display the
Number Edit screen.
Day Table and Start Times
The Day Table, Start Times, and Cycle Counts for this Program. Selecting the button and clicking
Edit will display the Day Table Edit screen.
Group Runtime
The runtimes for each group in the program. Selecting the button and clicking Edit will display the
Time Edit screen.
Group Stations
The stations assigned to each group in the program. Selecting the button and clicking Edit will
