display the Time Edit screen.
9.2.5 Irrigation, Cycles and Start Times
The Program Edit screen is displayed by selecting the Day Table and Start Time parameter and
pressing the icon on the Program Edit - Sequential or Program Edit - Grouping screen.

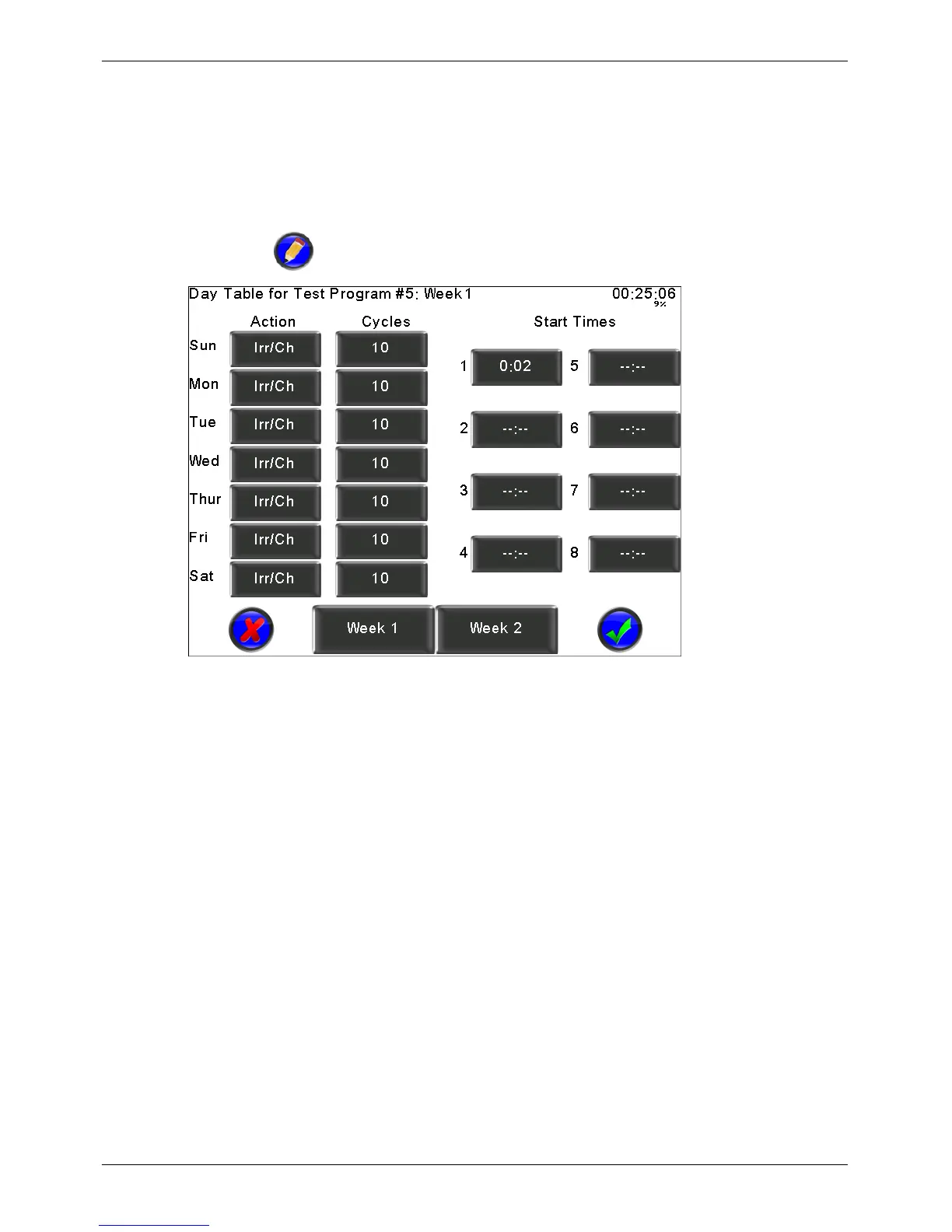

Figure 28 - Program Start Times Edit
Action
Clicking on an Action button cycles the irrigation action through the available options. The irrigation
actions available are None, Irrig and Irr/Ch. Irrig is irrigation only. Irr/Ch is irrigation with chemical
injection.
Cycles
Clicking on a Cycles button displays the Number Edit screen, allowing modification of the number of
cycles for the selected day.
Start Times
Clicking on a Start Times button displays the Time Edit screen, allowing modification of the start
times for the program. Setting a time of 0:00 disables the selected start time.
Week 1/ Week 2
Irrigation cycles are based on a 14 day cycle. Selecting Week 1 or Week 2 displays the irrigation
action and cycles for Week 1 or Week 2. Note that Start Times are identical for both Week 1 and
Week 2.
